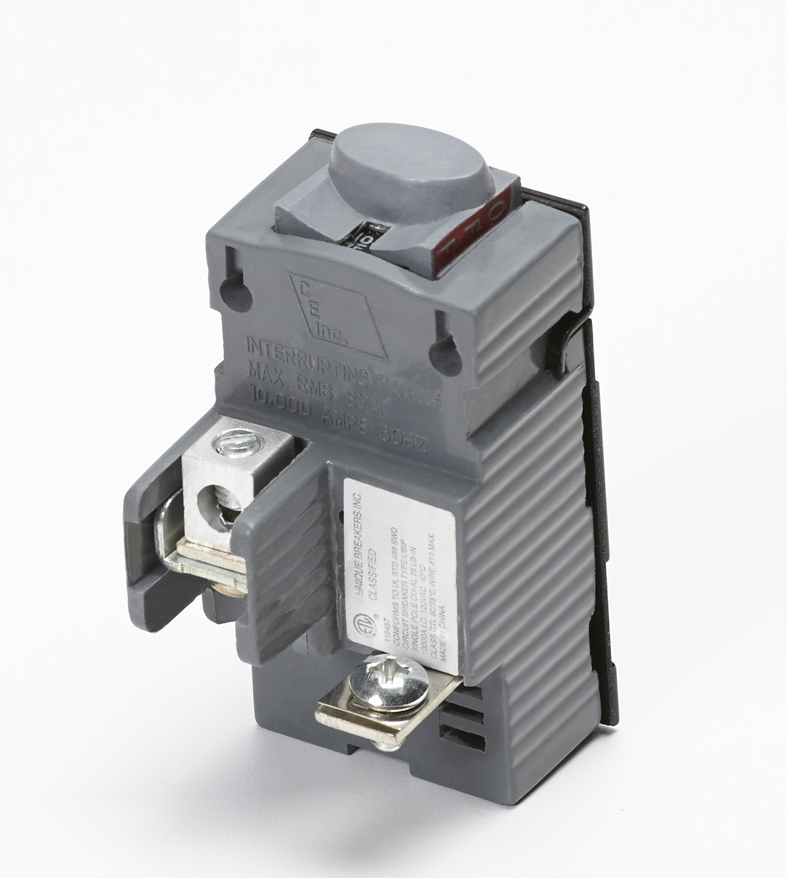

Connecticut Electric View-Pak™ VPKUBIP130 UBIP Type P Replacement Circuit Breaker, 120 V AC, 30 A, 10 kA Interrupt, 1 Poles
Connecticut Electric View-Pak™ VPKUBIP130 UBIP Type P Replacement Circuit Breaker, 120 VAC, 30 A, 10 kA Interrupt, 1 Poles, Thermal/Magnetic Trip
-
BrandConnecticut Electric
-
UPC094925004021
-
Manufacturer Part NumberVPKUBIP130
-
CountryUSA
-
Temperature Rating40 deg C
-
MaterialDMC
-
Frequency Rating50/60 Hz
-
Trip TypeThermal/Magnetic
-
TypeType P
-
Connection TypeBolt-On
-
Actuator TypeHandle
-
Voltage Rating120 V AC
-
Amperage Rating30 A
-
SeriesUBIP
-
Number of Poles1
-
Dimensions1-1/2 in L x 4 in W x 6 in H
-
Interrupt Rating10 kA
-
Phase1
| Cross-Reference Number |
|---|
| 512216 |
-
Alternative Part Number11929778
-
UNSPSC39121601
-
IDEA Index ID11929778
-
Package DescriptionEACH
-
Standards/ApprovalsETL Listed|CE Certified|UL 489
-
Warranty5 years
-
Catalog
-
Specification Sheet
