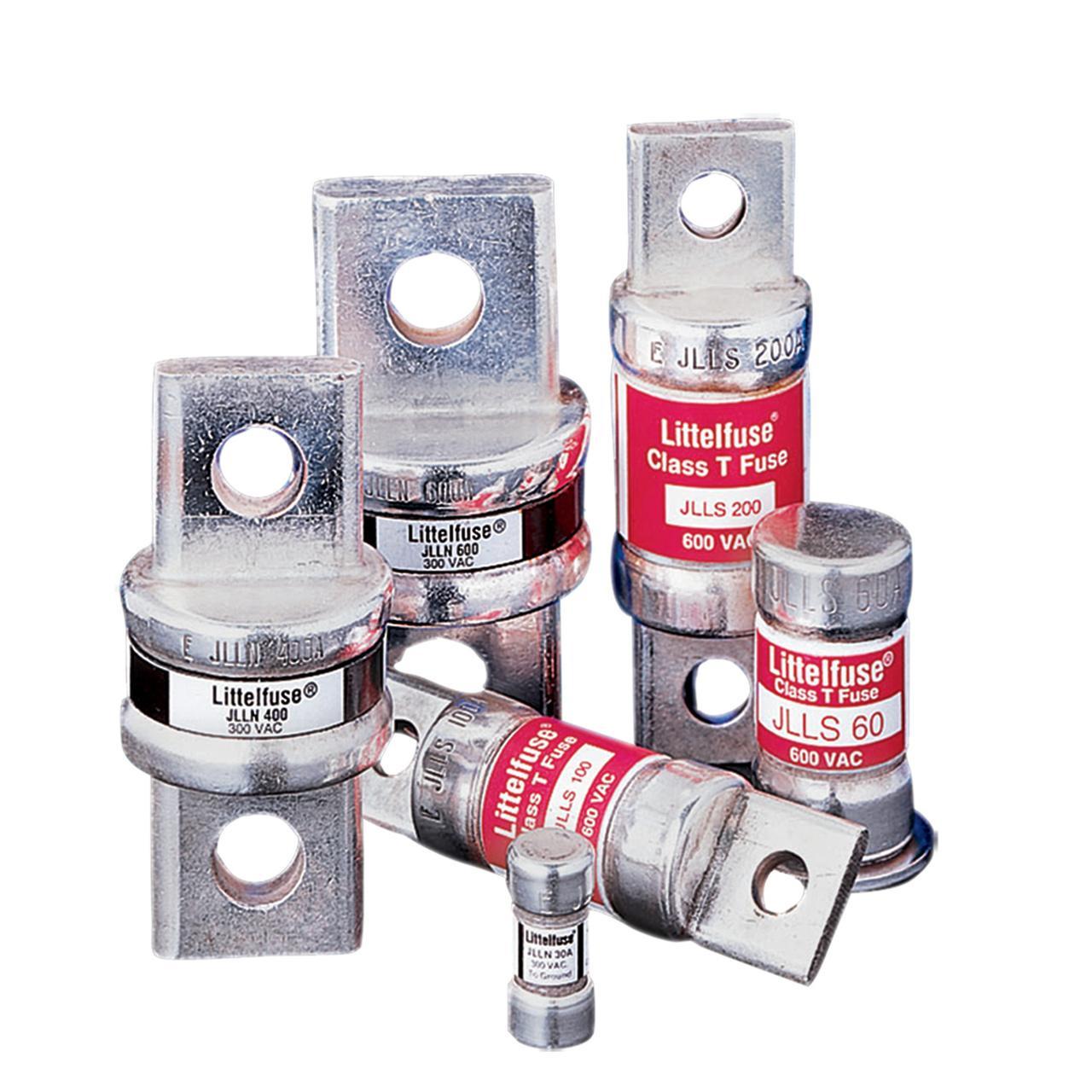

Littelfuse® POWR-GARD® JLLS350 Current Limiting Fast Acting Fuse, 350 A, 600 V AC/300 V DC, 20/200 kA Interrupt, T Class, Cartridge Body
Space saving Class T fuses are the most compact fuses available in ratings above 30 A - less than one-third the size of comparable Class R fuses. When rated in accordance with the NEC, Class T fuses provide Fast Acting overload and short circuit protection for non-inductive circuits and equipment. Used in inductive circuits, the ampere rating of Class T fuses must be increased to prevent opening on inrush currents. In such instances, Class T fuses may provide only short circuit protection.
-
BrandLittelfuse®
-
UPC079458190922
-
Manufacturer Part NumberJLLS350
-
CountryUSA|Canada
-
Terminal TypeKnife Blade
-
MaterialMelamine
-
ClassT
-
TypeCurrent Limiting
-
Mounting TypeHolder
-
Voltage Rating600 V AC/300 V DC
-
Amperage Rating350 A
-
SeriesJLLS
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating20/200 kA
-
Body Size1.593 in Dia x 3.625 in L
-
Body TypeCartridge
- Extremely current- limiting compact design
- Protection of individual electric services and meters
- Used to provide compact protection for meter stacks
- Current limiting design greatly reduces damage to equipment caused by heating and magnetic effects of short circuit currents
- 200 kA AC rms symmetrical and 20 kA DC interrupt rating
- Copper caps
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 486M15 |
-
Alternative Part NumberJLLS350.X|8580356
-
UNSPSC39121627
-
IDEA Index ID8580356
-
Package DescriptionEACH
-
Standards/ApprovalsUL 248-15|UL E81895|CSA Certified|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
-
Specification Sheet
-
Owners/User Manual
-
Full Engineering Drawing
-
Technical Bulletin
