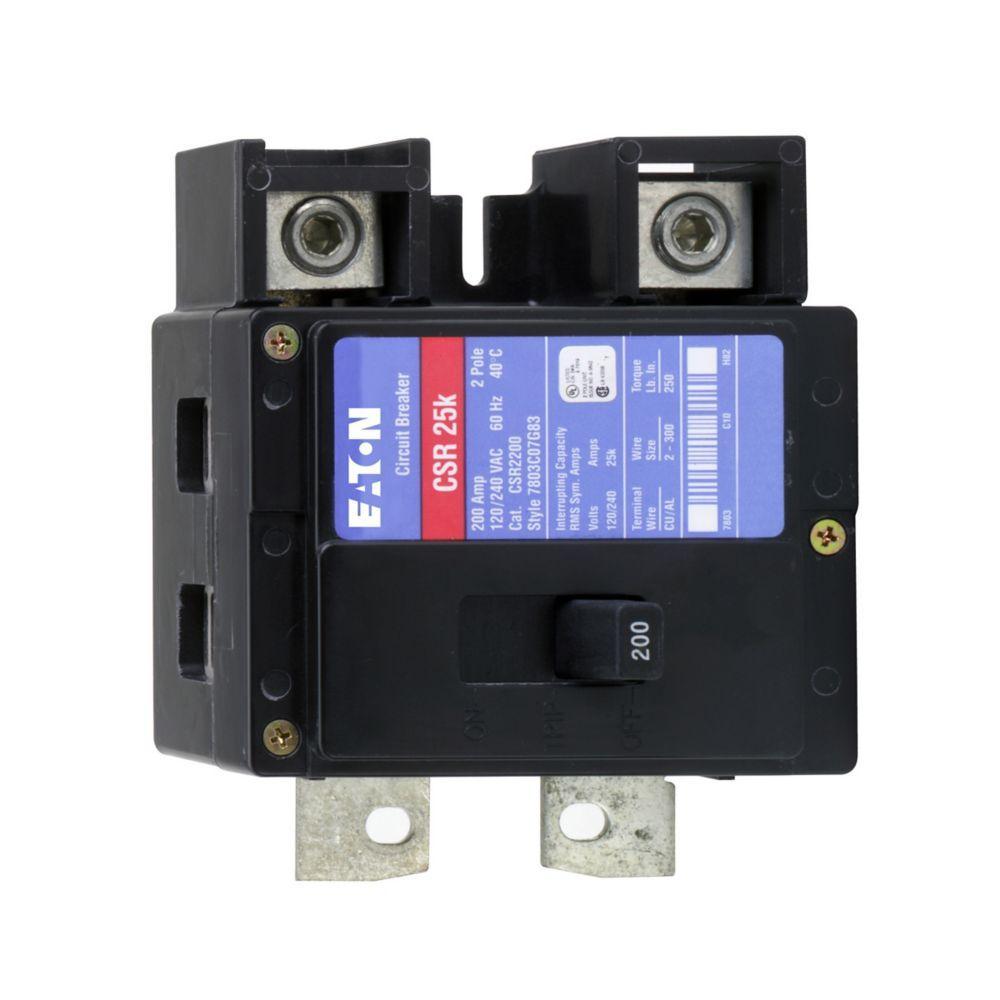

EATON CSR2200N Type CSR Standard Main Circuit Breaker, 120/240 V AC, 200 A, 25 kA Interrupt, 2 Poles
Eaton's main circuit breakers are used in a variety of applications including the main or emergency disconnect on the outside of a house, a tenant main breaker in group metering stacks and feed-through lug blocks specifically designed for sub-feeding from an existing panel. Main breakers are available with a variety of accessories including shunt trip, bell alarms and auxiliary switches.
-
BrandEATON
-
UPC782113098463
-
Manufacturer Part NumberCSR2200N
-
CountryUSA
-
Temperature Rating60 to 75 deg C
-
TypeType CSR Standard
-
Mounting TypeSurface
-
Voltage Rating120/240 V AC
-
Amperage Rating200 A
-
Wire Size2 AWG to 300 kcmil
-
Number of Poles2
-
Dimensions5.3 in L x 4.2 in W x 3.52 in H
-
Interrupt Rating25 kA
-
Phase1
- Time savings up to 25% per AFCI/GFCI installation
- Eliminates nuisance tripping due to loose pigtail connections
- Clean gutter space
- Easier troubleshooting due to less wiring
-
Alternative Part Number7334835
-
UNSPSC39121601
-
IDEA Index ID7334835
-
Package DescriptionEACH
-
Standards/ApprovalsUL 489
-
Specification Sheet
-
Owners/User Manual
-
Technical Bulletin
