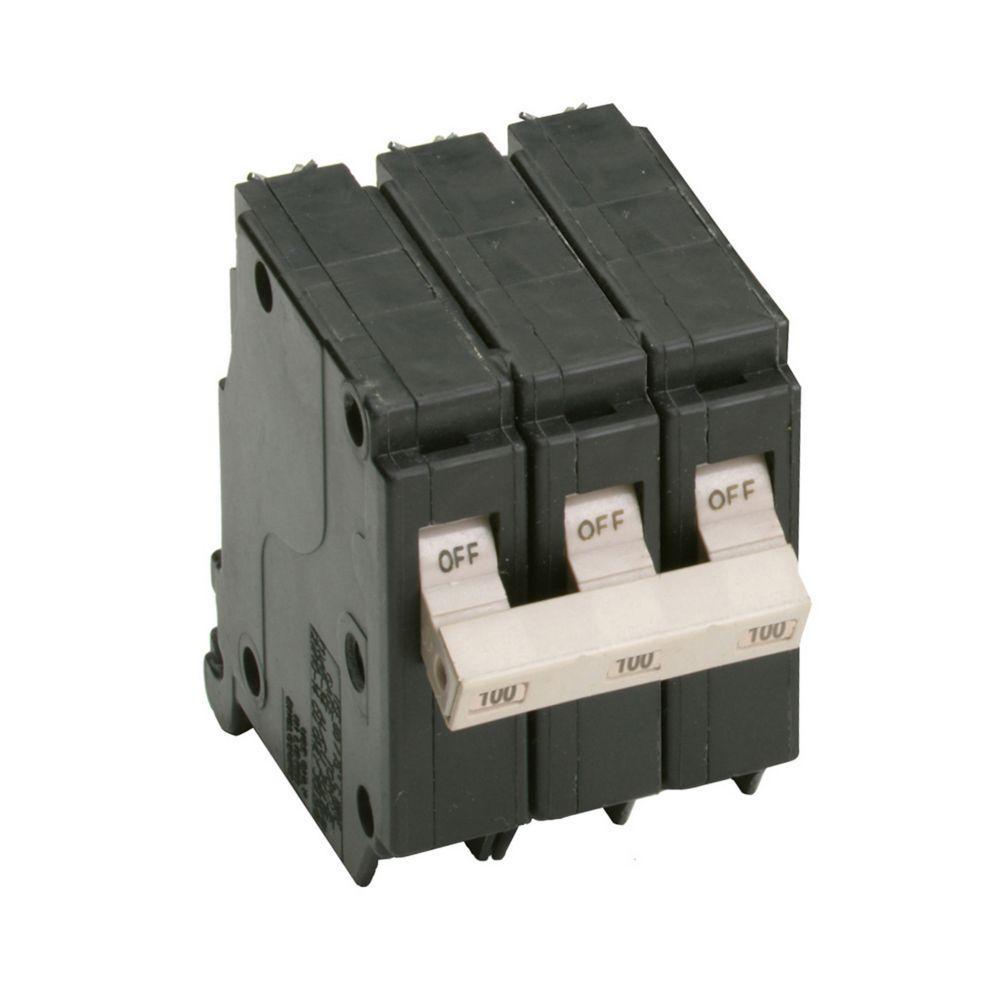

EATON CH3100 Standard Circuit Breaker, 240 V AC, 100 A, 10 kA Interrupt, 3 Poles
Eaton's residential CH circuit breakers provide premium overload protection. The Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multiple breakers have an internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.
-
BrandEATON
-
UPC782113102405
-
Manufacturer Part NumberCH3100
-
CountryUSA
-
Temperature Rating60 to 75 deg C
-
FrameCH
-
Trip TypeCommon/Thermal Magnetic
-
TypeStandard
-
Mounting TypePlug-On
-
Voltage Rating240 V AC
-
Amperage Rating100 A
-
Wire Size10 to 1/0 AWG
-
Number of Poles3
-
Dimensions2.2 in L x 3.1 in W x 2.6 in H
-
Interrupt Rating10 kA
-
Enclosure TypeNEMA 1/3R
-
Phase3
- Circuit breaker is thermal magnetic, quick-make quick-break, trip free
- Simple plug-in installations to the panel
- Works with all Siemens load center panels
- Reliable protection
- Use this space saver to double the number of useable circuits
- INSTA-WIRE speeds your installations with every turn
-
Alternative Part Number7335763
-
UNSPSC39121601
-
IDEA Index ID7335763
-
Package DescriptionEACH
-
Standards/ApprovalsUL 489
-
