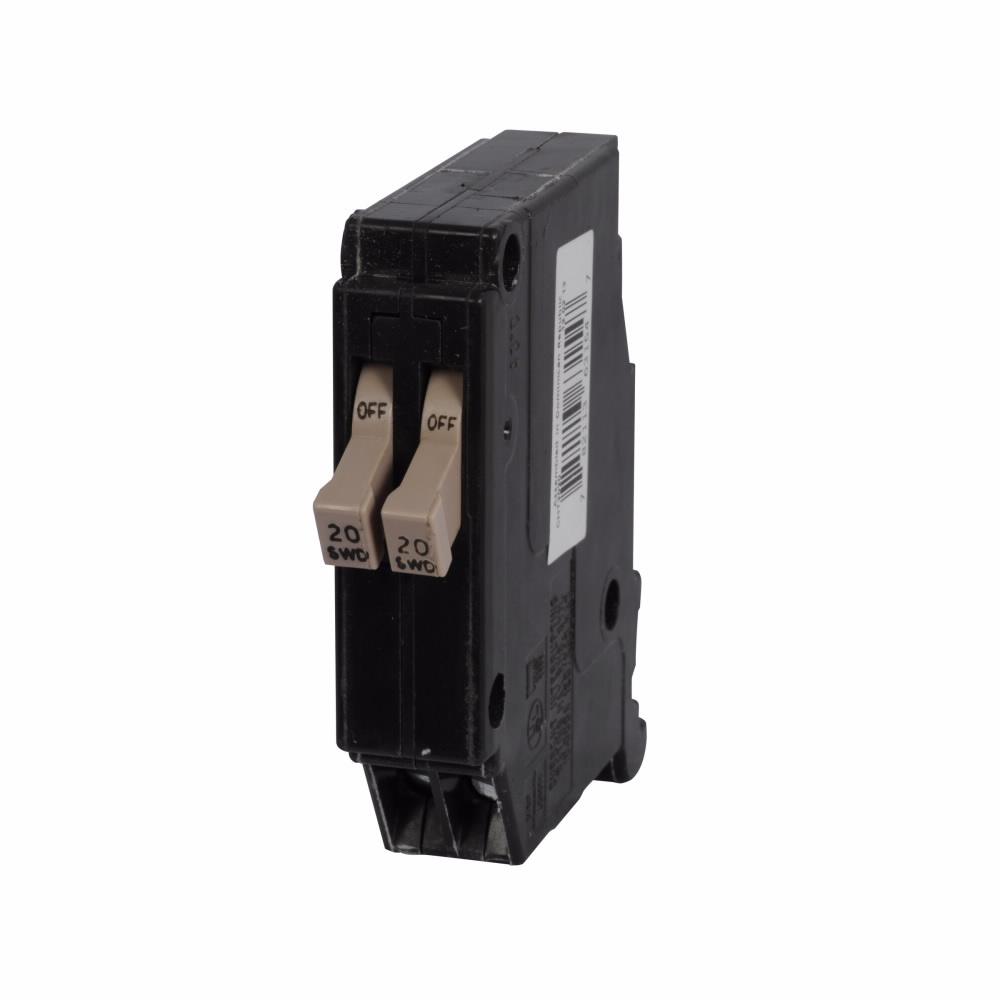

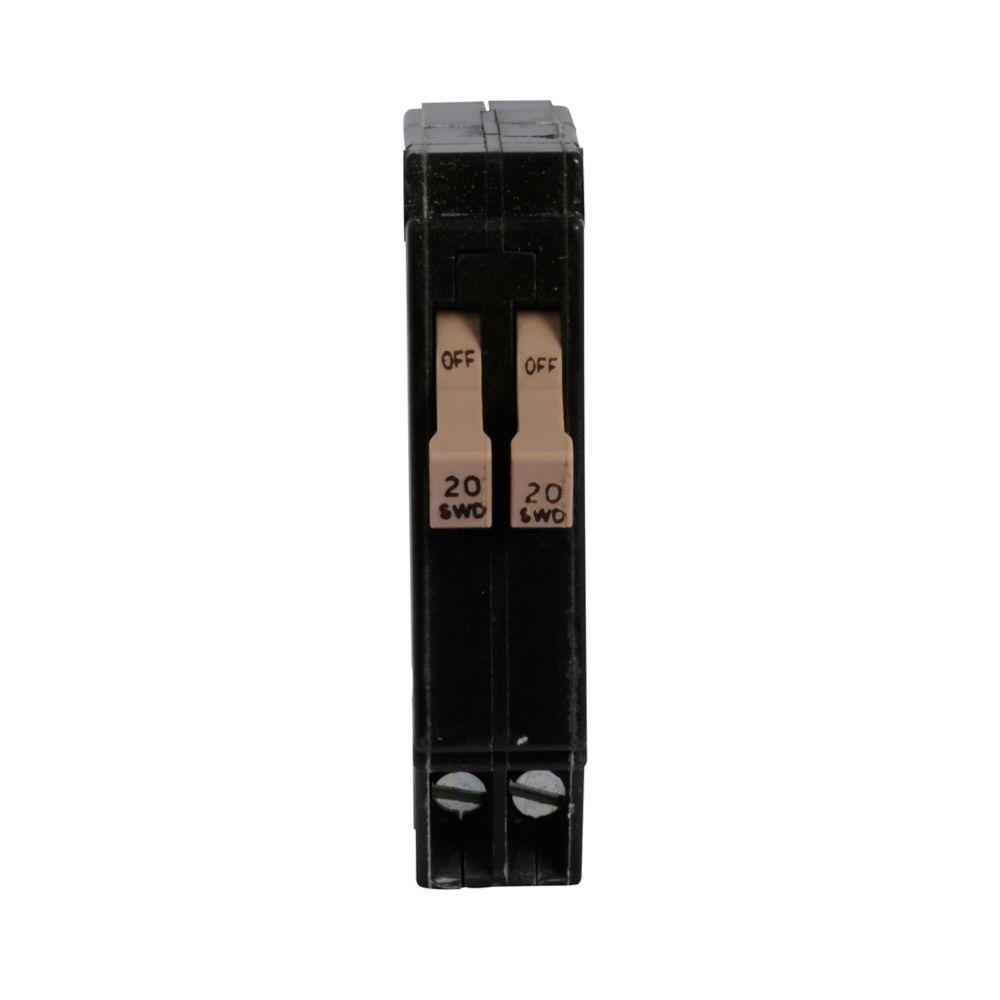

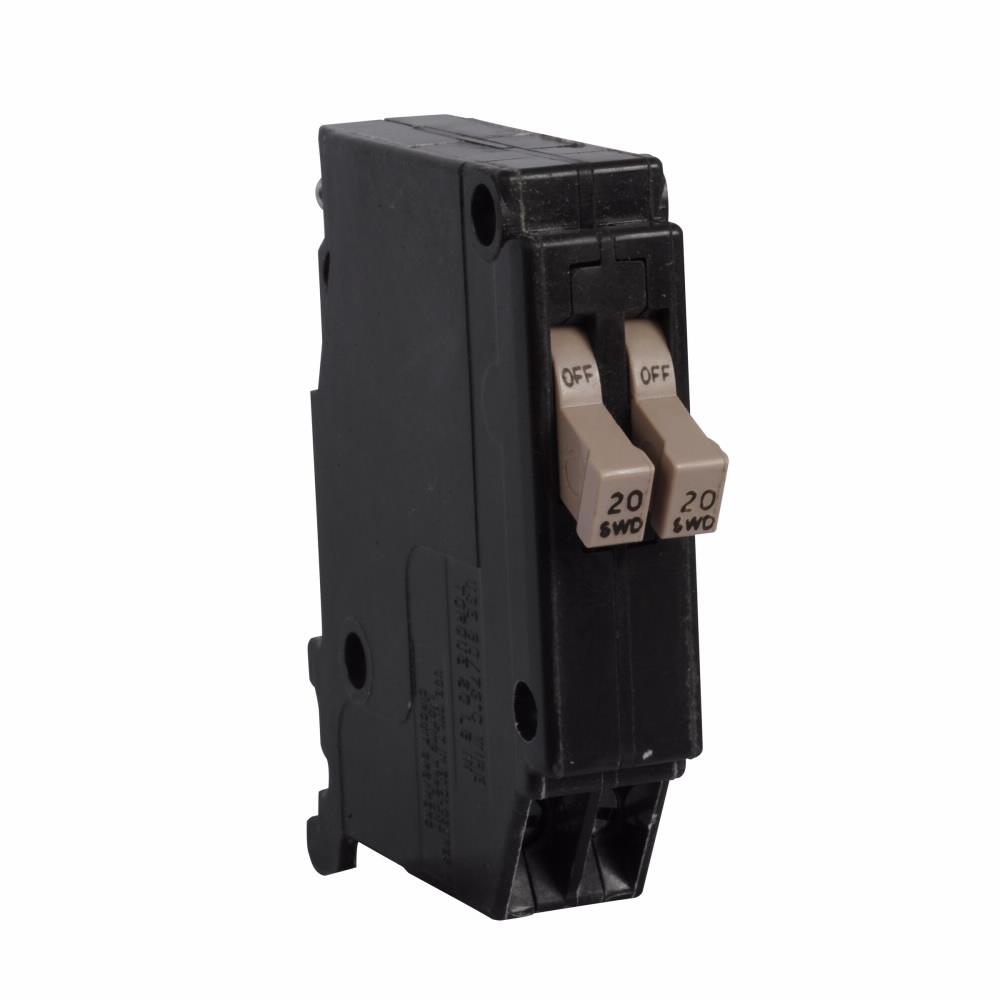

EATON CHT2020 Type CHT Twin Circuit Breaker, 120/240 V AC, 20 A, 10 kA Interrupt, 1 Poles
Eaton's residential CH circuit breakers provide premium overload protection. The Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multiple breakers have an internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.
-
BrandEATON
-
UPC782113631547
-
Manufacturer Part NumberCHT2020
-
CountryUSA
-
Temperature Rating65 to 75 deg C
-
Frequency Rating50/60 Hz
-
Trip TypeThermal/Magnetic
-
TypeType CHT Twin
-
Mounting TypePlug-On
-
Voltage Rating120/240 V AC
-
Amperage Rating20 A
-
Wire Size14 to 8 AWG
-
Number of Poles1
-
Dimensions0.9 in L x 0.7 in W x 2.6 in H
-
Interrupt Rating10 kA
-
Phase1
- Space saving 3/4 in twin design accommodates more breakers per panel
- Two position handle eliminates the need to reset the breaker
-
Alternative Part Number7365509
-
UNSPSC39121603
-
IDEA Index ID7365509
-
Package DescriptionEACH
-
Standards/ApprovalsUL 489,UL Listed
-
