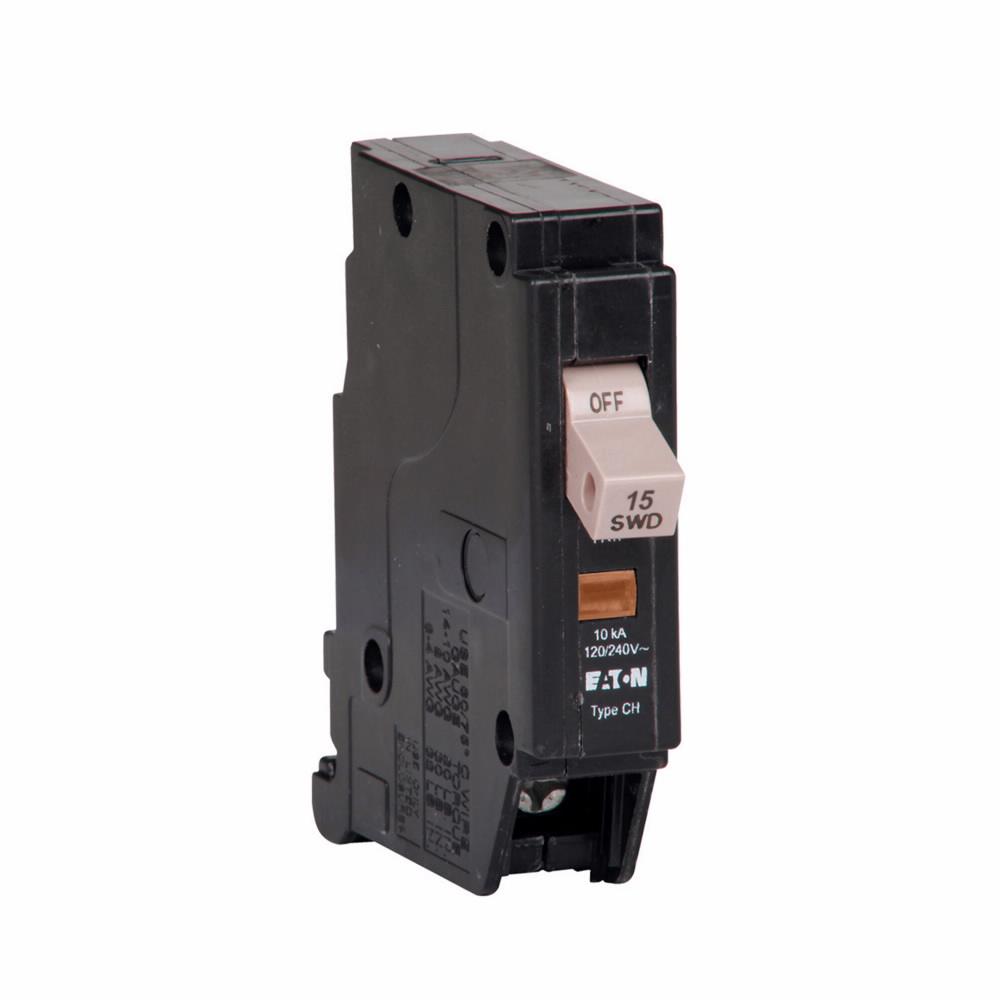

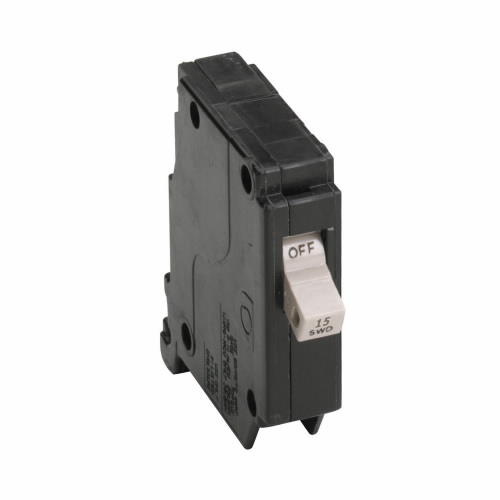

EATON CHF115 Type CHF Standard Circuit Breaker With Mechanical Trip Flag, 120/240 V AC, 15 A, 10 kA Interrupt, 1 Poles
Eaton's residential CH circuit breakers provide premium overload protection. The Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multiple breakers have an internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.
-
BrandEATON
-
UPC786685361833
-
Manufacturer Part NumberCHF115
-
CountryUSA|Canada
-
Temperature Rating60 to 75 deg C
-
Trip TypeFlag
-
TypeType CHF Standard
-
Mounting TypePlug-On
-
Voltage Rating120/240 V AC
-
Amperage Rating15 A
-
Wire Size(1) 14 to 8 AWG, (2) 14 to 10 AWG Copper/Aluminum
-
Number of Poles1
-
Dimensions3 in L x 3/4 in W x 3 in H
-
Interrupt Rating10 kA
-
Enclosure TypeNEMA 1/3R
-
Phase1
-
Connection TypeBox Lug
-
Actuator TypeToggle Handle
- Advanced electronics to reduce unwanted tripping from non-compliant devices
- Standard LED indicates one of seven trip codes to simplify circuit diagnostics
- Trip codes are stored permanently into the breakers memory
- to help identify trip history
- Branch overvoltage protection for sensitive electronics
- Trip flag visibly indicates breaker status
- 3/4 in per pole
-
Alternative Part Number10861937
-
UNSPSC39121601
-
IDEA Index ID10861937
-
Standards/ApprovalsUL 489,HACR Rated
-
Package DescriptionEACH
-
WarrantyLimited Lifetime
-
