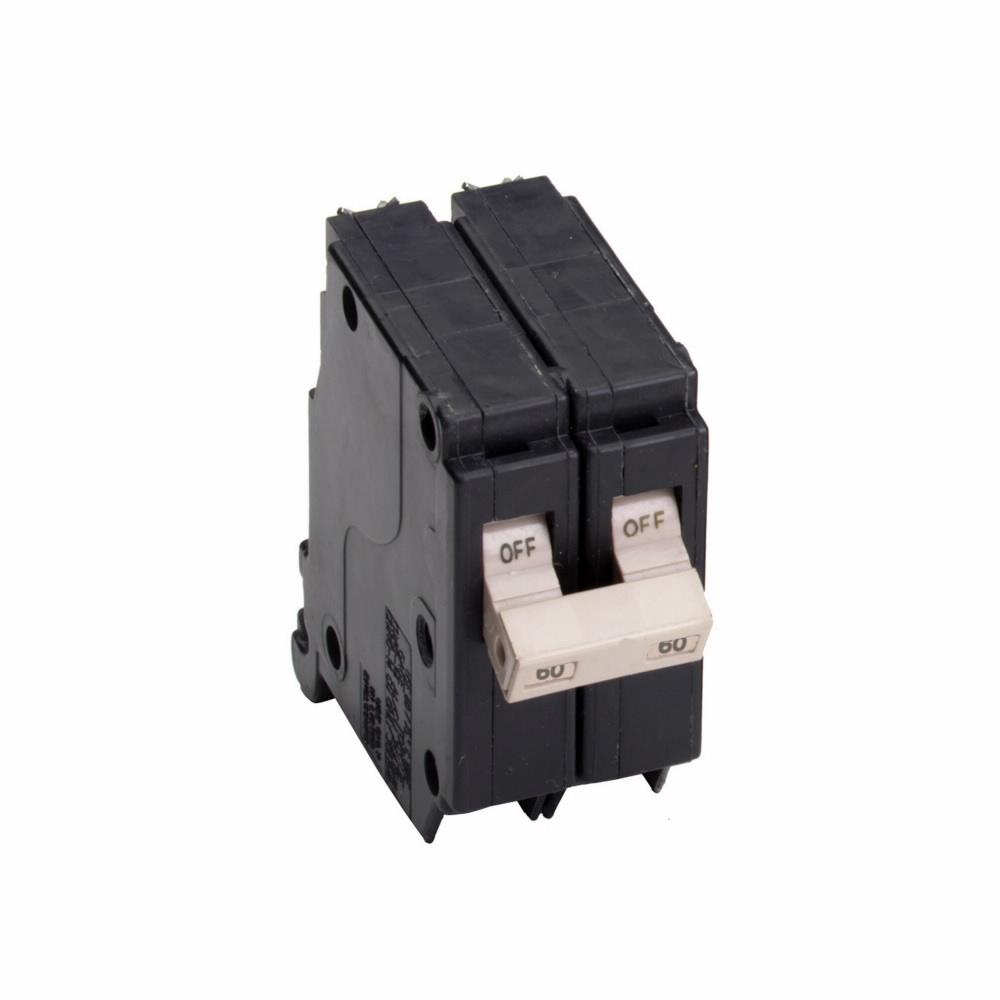

EATON CH260 Type CH Standard Circuit Breaker, 120/240 V AC, 60 A, 10 kA Interrupt, 2 Poles
Quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design. Type CH circuit breakers trip to the off position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short circuit conditions. Multi-pole breakers have internal common trip connection to operate all poles simultaneously. Handles are marked with On-Off indication and ampere rating of the breaker.
-
BrandEATON
-
UPC782113101873
-
Manufacturer Part NumberCH260
-
CountryUSA
-
Temperature Rating60 to 75 deg C
-
Trip TypeCommon/Thermal Magnetic
-
TypeType CH Standard
-
Mounting TypePlug-On
-
Voltage Rating120/240 V AC
-
Amperage Rating60 A
-
Wire Size14 to 2 AWG
-
Number of Poles2
-
Dimensions3 in L x 1-1/2 in W x 3-1/2 in H
-
Interrupt Rating10 kA
-
Enclosure TypeNEMA 1/3R
-
Phase1
- Common trip requires one 3/4 in space
- Switching duty rated
- For 2-pole circuit breakers carry listing for HACR application
| Cross-Reference Number |
|---|
| 539953 |
-
Alternative Part Number7335657
-
UNSPSC39121601
-
IDEA Index ID7335657
-
Package DescriptionEACH
-
Standards/ApprovalsUL 489
-
Specification Sheet
-
Owners/User Manual
