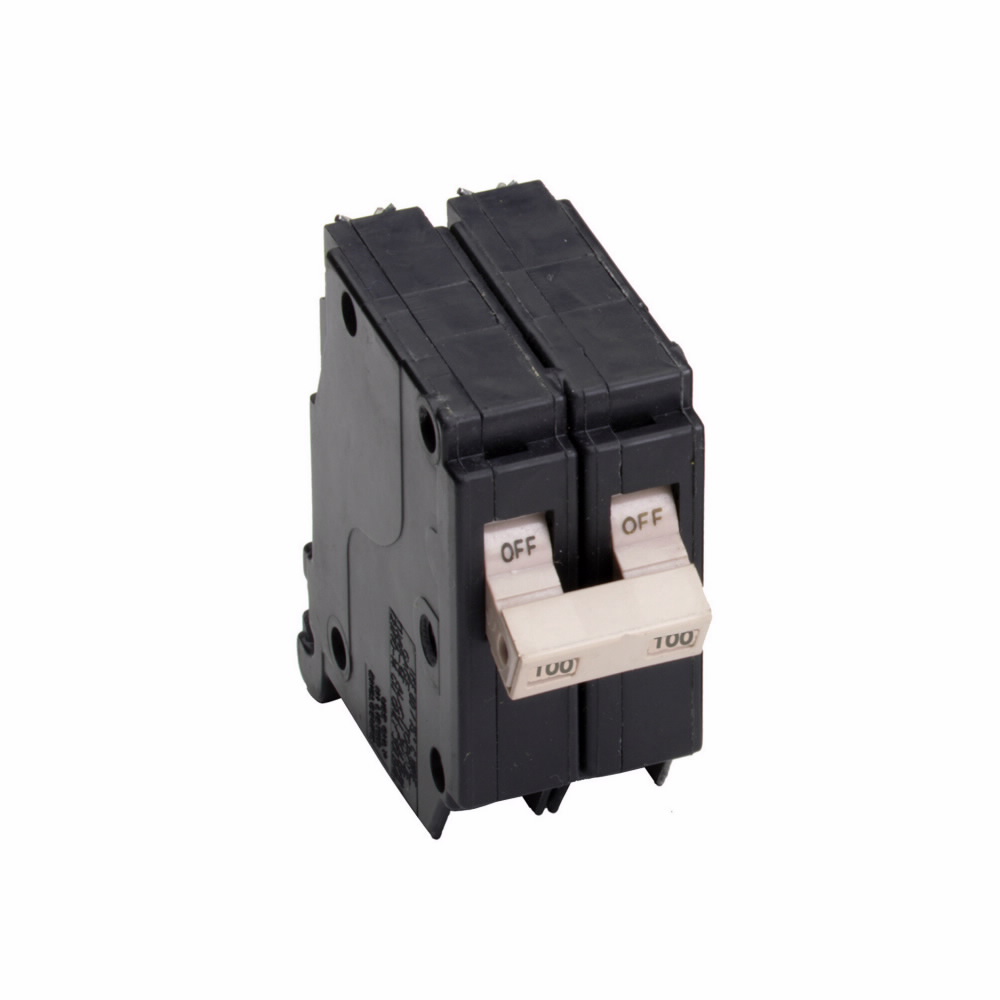

EATON CH2100 Type CH Standard Circuit Breaker, 120/240 V AC, 100 A, 10 kA Interrupt, 2 Poles
Eaton's residential CH circuit breakers provide premium overload protection. The Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multiple breakers have an internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.
-
BrandEATON
-
UPC782113102375
-
Manufacturer Part NumberCH2100
-
CountryUSA|Canada
-
Temperature Rating60 to 75 deg C
-
Trip TypeCommon/Thermal Magnetic
-
TypeType CH Standard
-
Mounting TypePlug-On
-
Voltage Rating120/240 V AC
-
Amperage Rating100 A
-
Wire Size10 to 1/0 AWG
-
Number of Poles2
-
Dimensions3-1/2 in L x 1-1/2 in W x 3-1/4 in H
-
Interrupt Rating10 kA
-
Enclosure TypeNEMA 1/3R
-
Phase1
- Advanced electronics to reduce unwanted tripping from non-compliant devices
- Standard LED indicates one of seven trip codes to simplify circuit diagnostics
- Trip codes are stored permanently into the breakers memory
- to help identify trip history
- Branch overvoltage protection for sensitive electronics
| Cross-Reference Number |
|---|
| 539988 |
-
Alternative Part Number7335745
-
UNSPSC39121601
-
IDEA Index ID7335745
-
Package DescriptionEACH
-
Standards/ApprovalsUL 489
-
Warranty Information
-
Catalog
-
Specification Sheet
