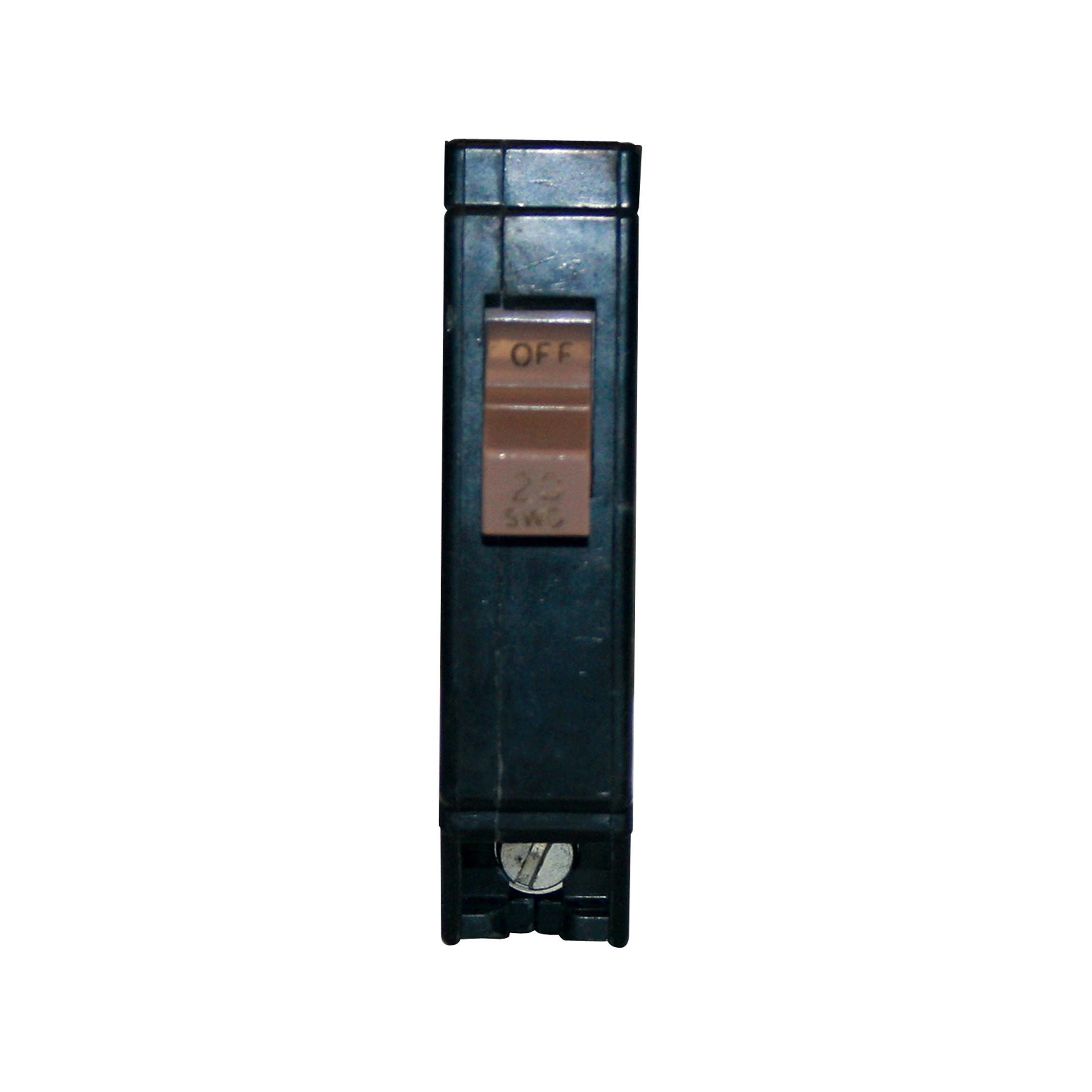

EATON CH120 Type CH Standard Circuit Breaker, 120/240 V AC, 20 A, 10 kA Interrupt, 1 Poles
Quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design. Type CH circuit breakers trip to the off position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short circuit conditions. Multi-pole breakers have internal common trip connection to operate all poles simultaneously. Handles are marked with On-Off indication and ampere rating of the breaker.
-
BrandEATON
-
UPC782113101644
-
Manufacturer Part NumberCH120
-
CountryUSA
-
Temperature Rating60 to 75 deg C
-
Trip TypeThermal/Magnetic
-
TypeType CH Standard
-
Mounting TypePlug-On
-
Voltage Rating120/240 V AC
-
Amperage Rating20 A
-
Wire Size14 to 8 AWG, 14 to 10 AWG
-
Number of Poles1
-
Dimensions3-1/2 in L x 5 in W x 3 in H
-
Interrupt Rating10 kA
-
Enclosure TypeNEMA 1/3R
-
Phase1
- Common trip requires one 3/4 in space
- Switching duty rated
- For 1-pole circuit breakers carry listing for HACR application
-
Alternative Part Number7335556
-
UNSPSC39121601
-
IDEA Index ID7335556
-
Package DescriptionEACH
-
Standards/ApprovalsUL 489
-
