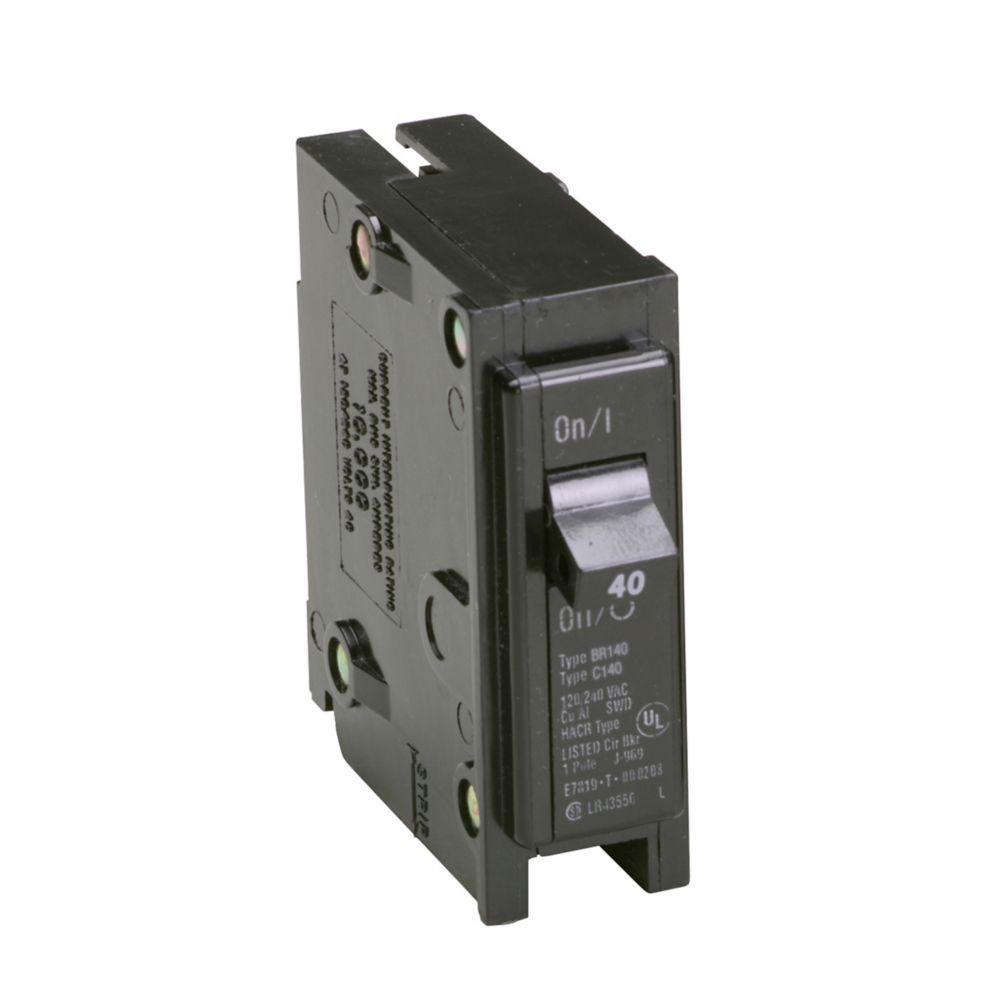

EATON BR140CS Type BR Circuit Breaker, 120/240 V AC, 40 A, 10 kA Interrupt, 1 Poles
Eatons BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.
-
BrandEATON
-
UPC782116630370
-
Manufacturer Part NumberBR140CS
-
CountryUSA
-
Temperature Rating60 to 75 deg C
-
Trip TypeThermal Magnetic
-
TypeType BR
-
Mounting TypePlug-On
-
Actuator TypeToggle Handle
-
Voltage Rating120/240 V AC
-
Amperage Rating40 A
-
Wire Size14 to 4 AWG
-
Number of Poles1
-
Dimensions3 in L x 1 in W x 3 in H
-
Interrupt Rating10 kA
-
Phase1
- Available in 1 in thermal magnetic
- and AF/GF designs
- Short-body design maximizes your space inside the loadcenter
- creating additional wire-way and gutter space for ease of installation
- Easy to read trip codes through improved LEDs and a clear test button increases your troubleshooting efficiency
- Improved AFCI and GFCI algorithms significantly reduce nuisance tripping
- resulting in less call backs
-
Alternative Part Number9219859
-
UNSPSC39121603
-
IDEA Index ID9219859
-
Package DescriptionEACH
-
Standards/ApprovalsUL 489,Federal Specifications Classification W-C375
-
Warranty1 Year
-
