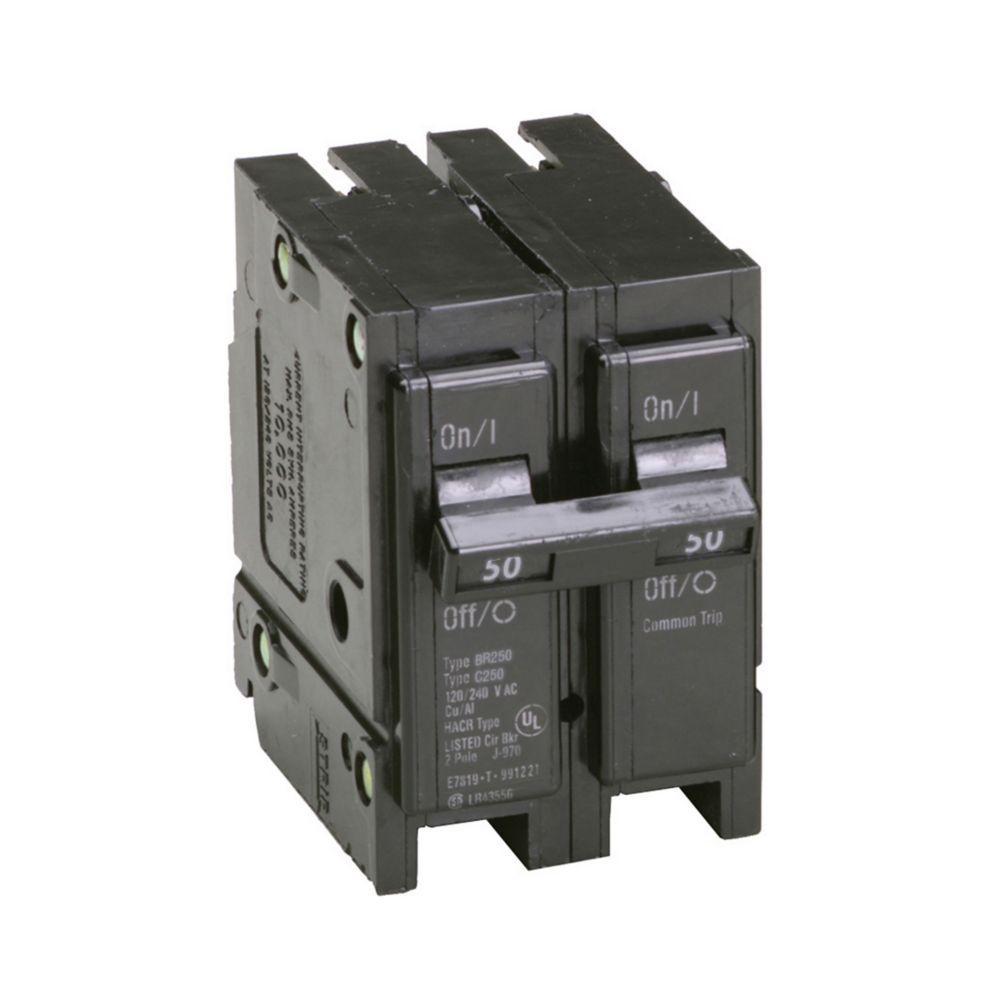

EATON BR250 Type BR Circuit Breaker, 120/240 V AC, 50 A, 10 kA Interrupt, 2 Poles
Eatons BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.
-
BrandEATON
-
UPC786676363051
-
Manufacturer Part NumberBR250
-
CountryUSA|Canada
-
Temperature Rating60 to 75 deg C
-
Trip TypeCommon/Thermal Magnetic
-
TypeType BR
-
Mounting TypePlug-On
-
Voltage Rating120/240 V AC
-
Amperage Rating50 A
-
Wire Size14 to 4 AWG
-
Number of Poles2
-
Dimensions3 in L x 2 in W x 3 in H
-
Interrupt Rating10 kA
-
Enclosure TypeNEMA 1/4X/3R
-
Phase1
- Available in 1 in thermal magnetic
- and AF/GF designs
- Short-body design maximizes your space inside the loadcenter
- creating additional wire-way and gutter space for ease of installation
- Easy to read trip codes through improved LEDs and a clear test button increases your troubleshooting efficiency
- Improved AFCI and GFCI algorithms significantly reduce nuisance tripping
- resulting in less call backs
| Competitor Name | Cross-Reference Number |
|---|---|
| Ferguson | CBR250 |
-
Alternative Part Number7434489
-
UNSPSC39121601
-
IDEA Index ID7434489
-
Package DescriptionEACH
-
Standards/ApprovalsUL 489,Federal Specifications Classification W-C375
-
Warranty10 years
-
Specification Sheet
-
Catalog
-
Line Drawing
