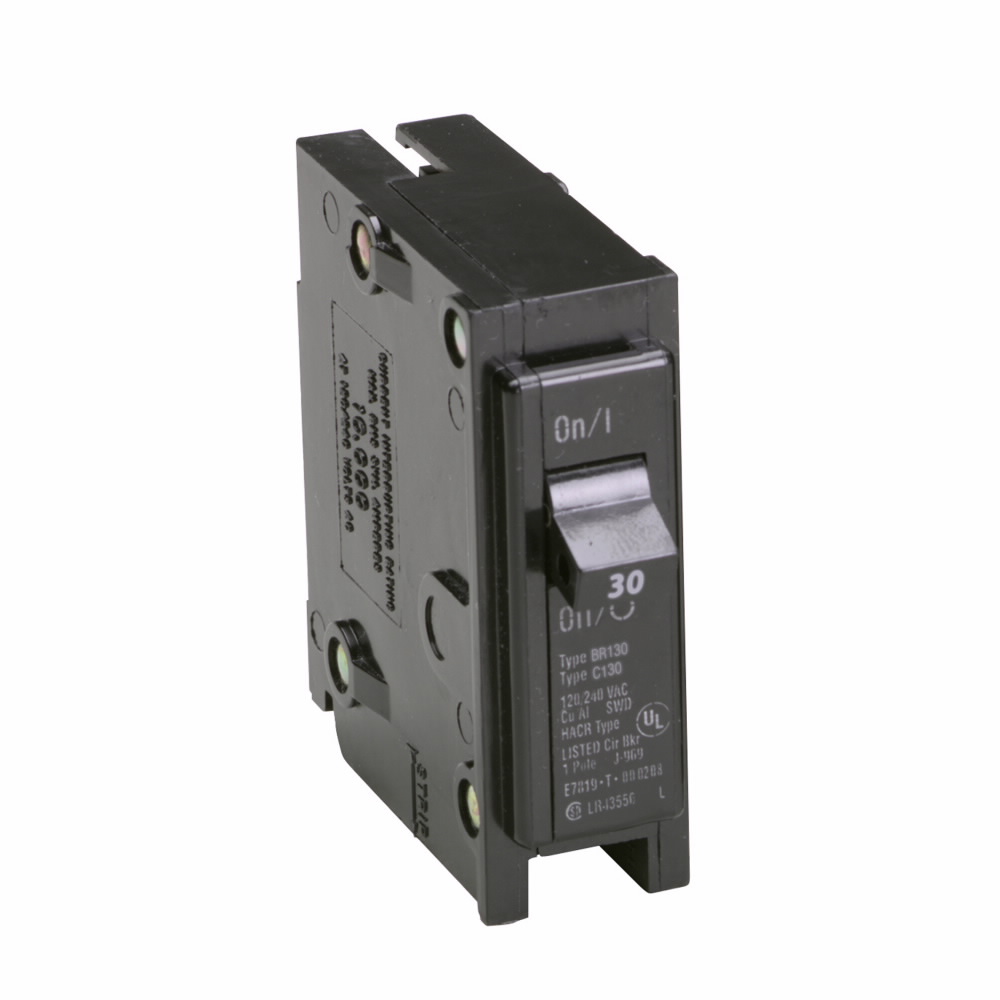

CUTLER HAMMER BR130 Type BR Circuit Breaker, 120/240 V AC, 30 A, 10 kAIC Interrupt, 1 Poles
Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.
-
BrandEATON
-
UPC786676362207
-
Manufacturer Part NumberBR130
-
CountryUSA
-
Temperature Rating60 to 75 deg C
-
TypeType BR
-
Connection TypePlug-On
-
Mounting TypePlug-On
-
Voltage Rating120/240 V AC
-
Amperage Rating30 A
-
Wire Size14 to 4 AWG Copper/Aluminum
-
Number of Poles1
-
Dimensions3 in L x 1 in W x 3 in H
-
Interrupt Rating10 kAIC
-
Enclosure TypeNEMA 1/3R/4X
-
Phase1
- Common trip requires (1) 1 in space
- All BR circuit breakers have rejection tab feature
- Units feature a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design
- For 1-pole circuit breakers carry listing for HACR application
| Competitor Name | Cross-Reference Number |
|---|---|
| Ferguson | CBR130 |
-
Alternative Part Number7434407
-
UNSPSC39121603
-
IDEA Index ID7434407
-
Package DescriptionEACH
-
Standards/ApprovalsUL 489,Federal Specifications Classification W-C375
-
Warranty10 years
-
