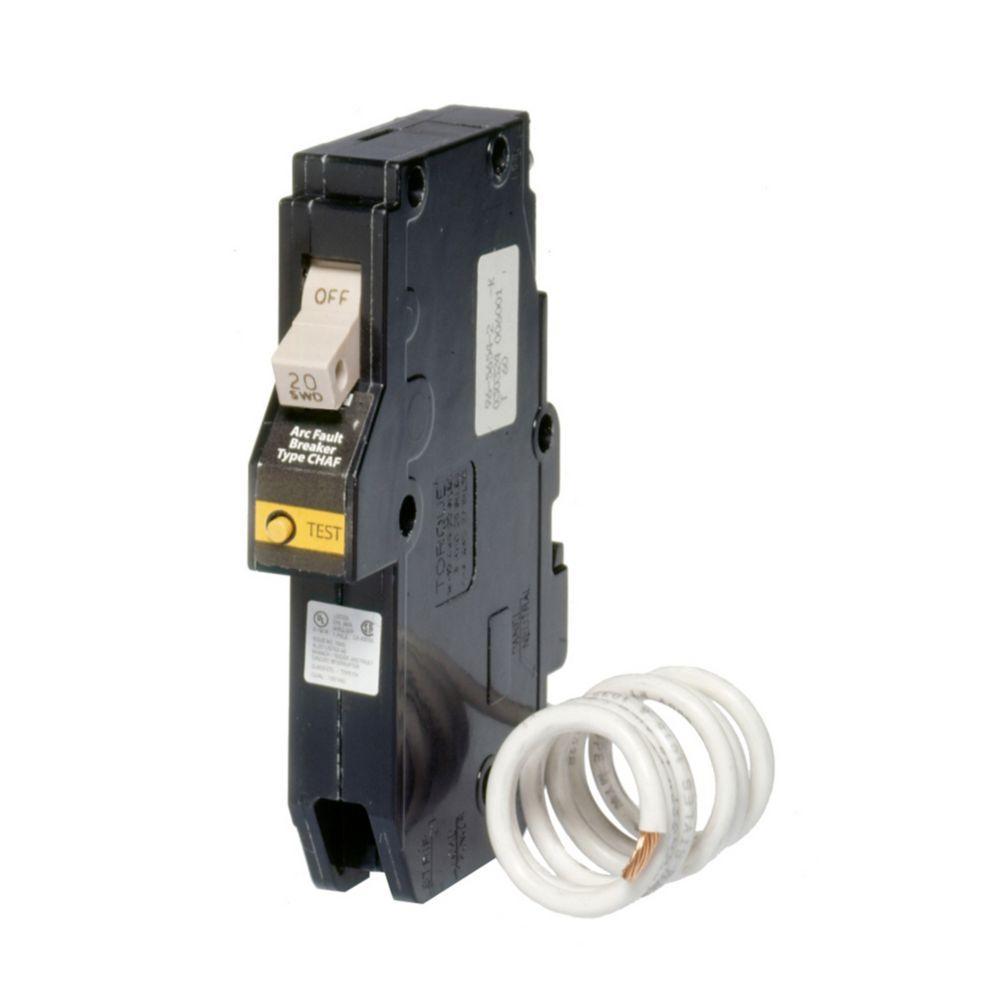

EATON FIRE-GUARD® CH120AF Type CH Arc Fault Circuit Breaker, 120/240 V AC, 20 A, 10 kA Interrupt, 1 Poles, Thermal Magnetic Trip
Eaton's residential CH circuit breakers provide premium overload protection. The Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multiple breakers have an internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.
-
BrandEATON
-
UPC782114231487
-
Manufacturer Part NumberCH120AF
-
CountryUSA
-
Trip TypeThermal Magnetic
-
TypeType CH
-
Mounting TypePlug-On
-
Voltage Rating120/240 V AC
-
Amperage Rating20 A
-
Number of Poles1
-
Dimensions4 in L x 3/4 in W x 3-1/2 in H
-
Interrupt Rating10 kA
-
Alternative Part Number7364030
-
UNSPSC39121603
-
IDEA Index ID7364030
-
Standards/ApprovalsUL Listed|PROP65: This product can expose you to chemicals including: Nickel compounds which is known to the State of California to cause cancer and Bisphenol A (BPA) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
