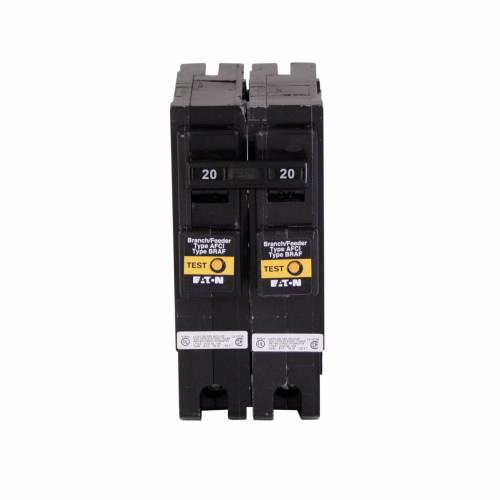

EATON FIRE-GUARD® BRL220AF Type BR AFCI Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
EATON FIRE-GUARD® BRL220AF Type BR AFCI Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 2 Poles, Common Trip
-
BrandEATON
-
UPC786685233376
-
Manufacturer Part NumberBRL220AF
-
CountryUSA
-
Temperature Rating60 to 75 deg C
-
Trip TypeThermal Magnetic
-
TypeType BR
-
Voltage Rating120/240 V AC
-
Amperage Rating20 A
-
Wire Size14 to 4 AWG
-
Number of Poles2
-
Dimensions6 in L x 4-1/2 in W x 3 in H
-
Interrupt Rating10 kA
- Common trip refers to 2-pole 240 VAC load application sourced by 120/240 VAC
- Independent trip refers to 2-pole multi-wire, home RUN or shared neutral circuits
- 14 to 4 AWG copper/aluminum at 60 to 75 deg C wire range
- EATON volume 1 residential and light commercial
- Type BR arc fault circuit breakers and load centers
- Type BR 1 in combination arc fault circuit interrupter
-
Alternative Part Number10713204
-
UNSPSC39121603
-
IDEA Index ID10713204
-
Standards/ApprovalsUL 1699|Federal Specification W-C-375
-
Warranty10 Years
-
Catalog
-
Specification Sheet
-
Owners/User Manual
