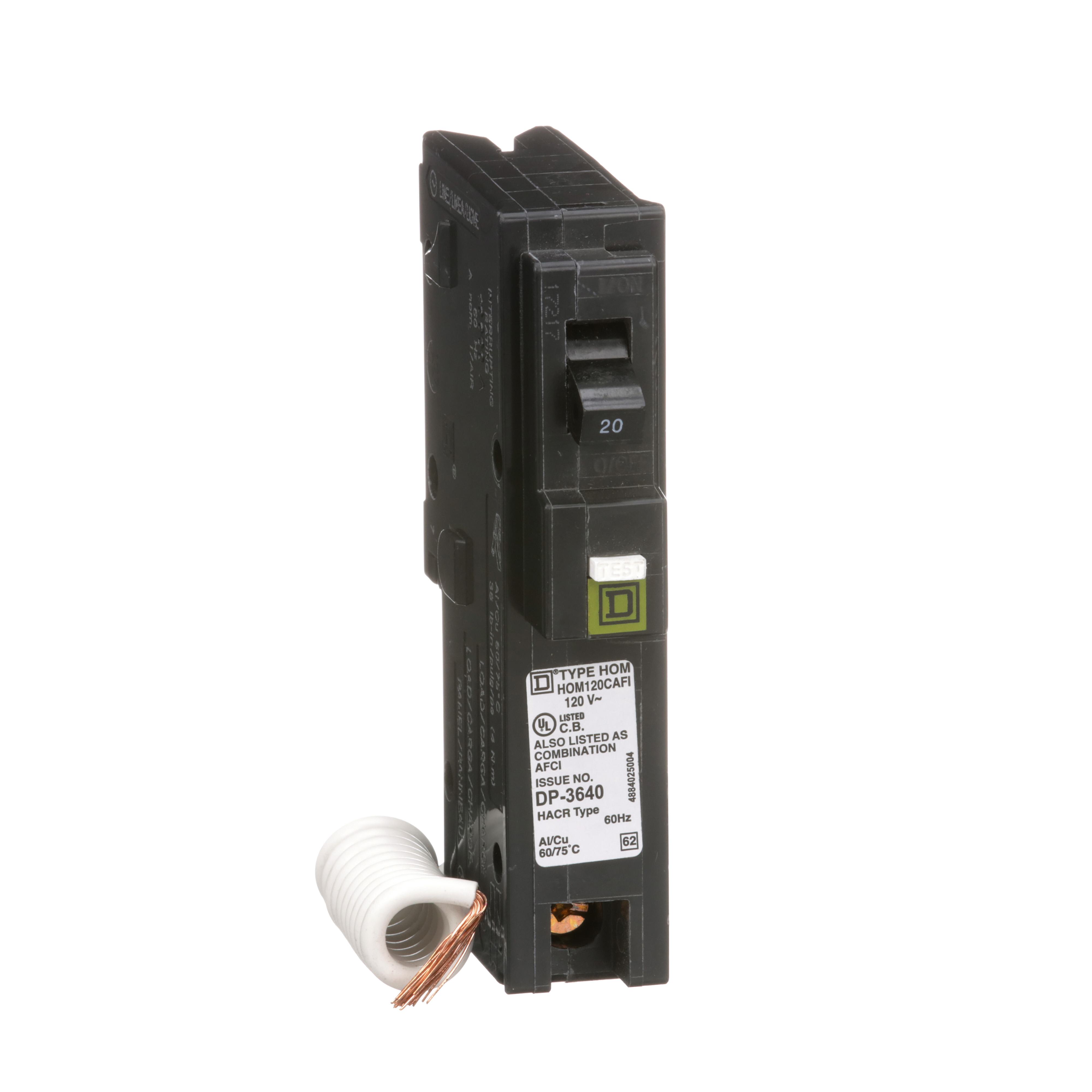

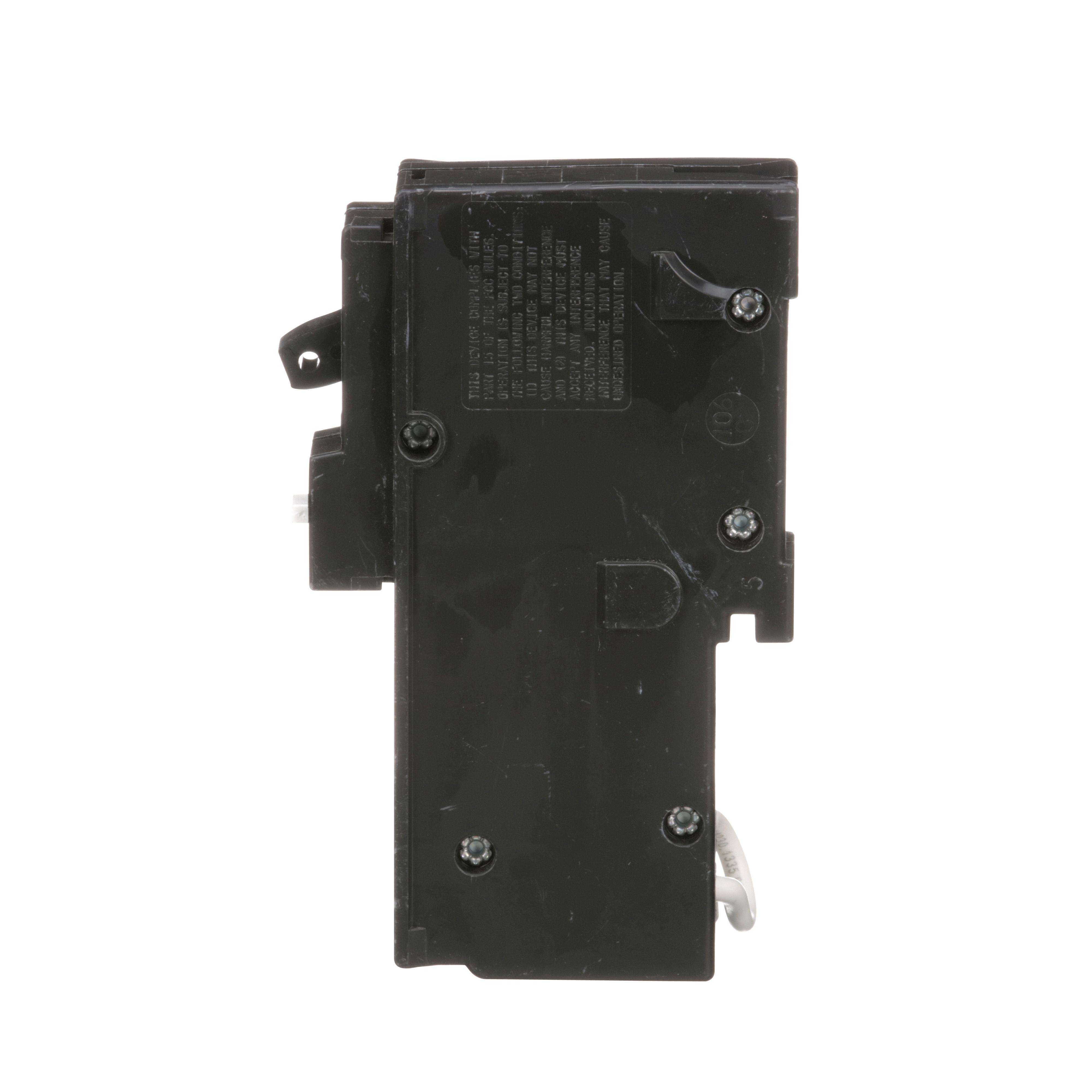

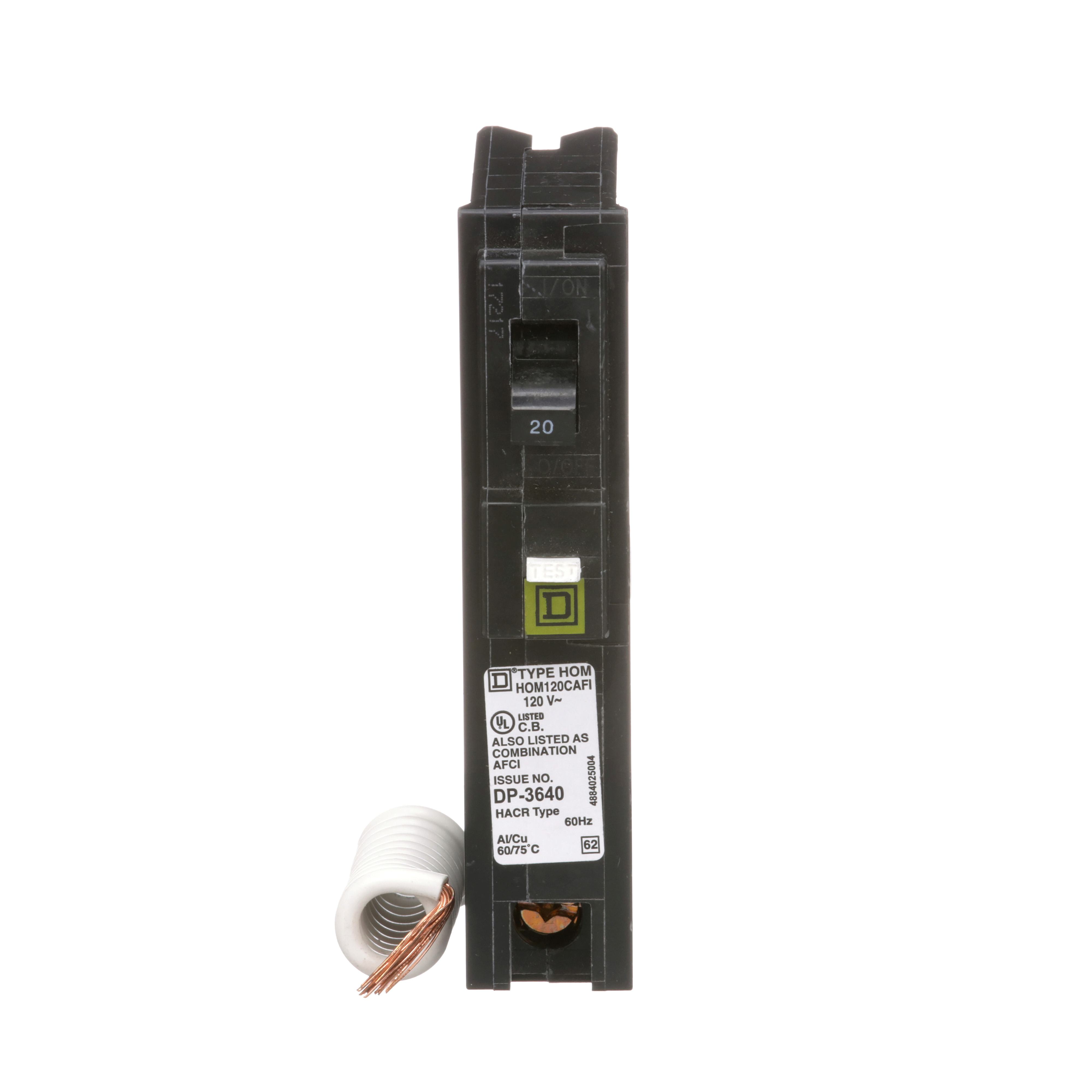

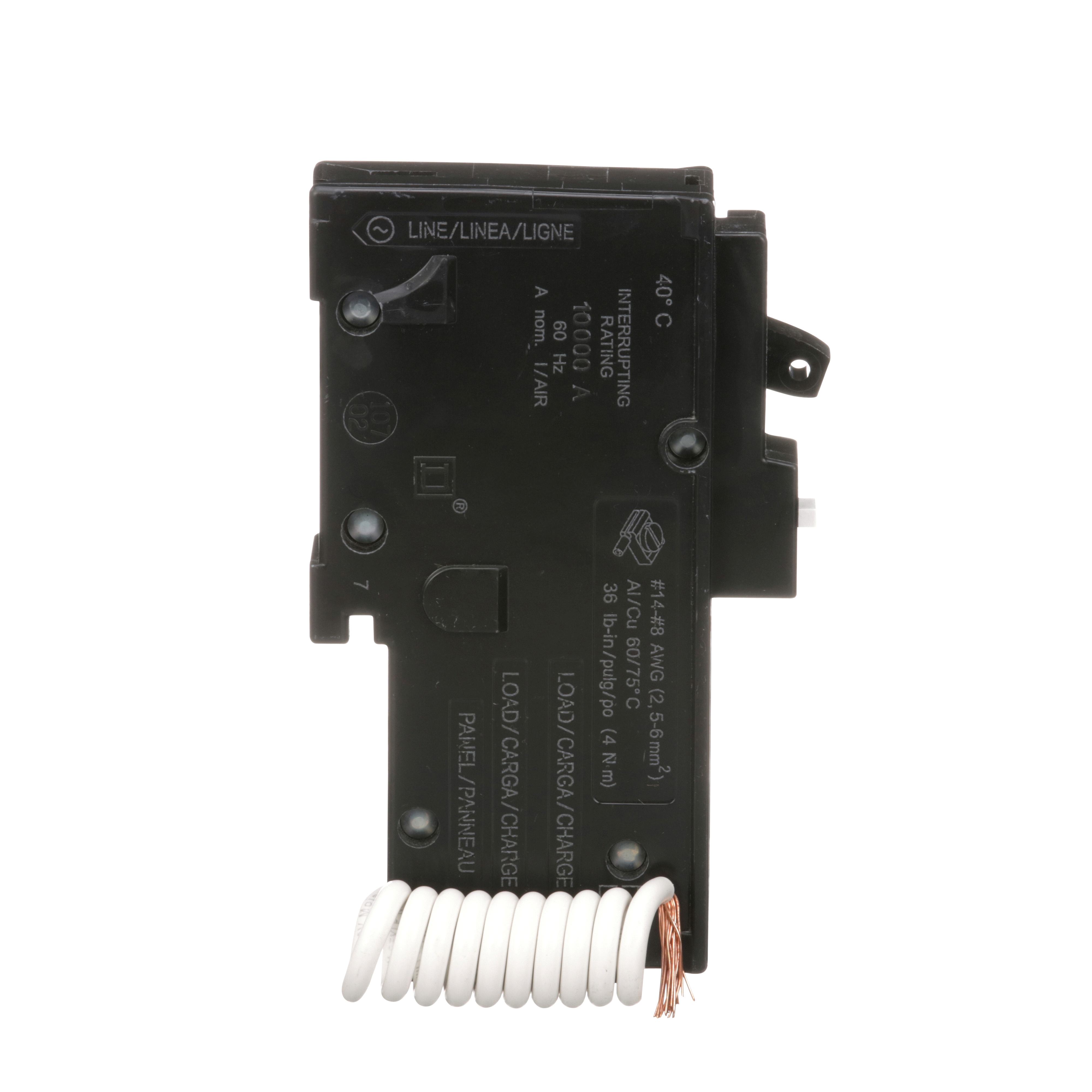

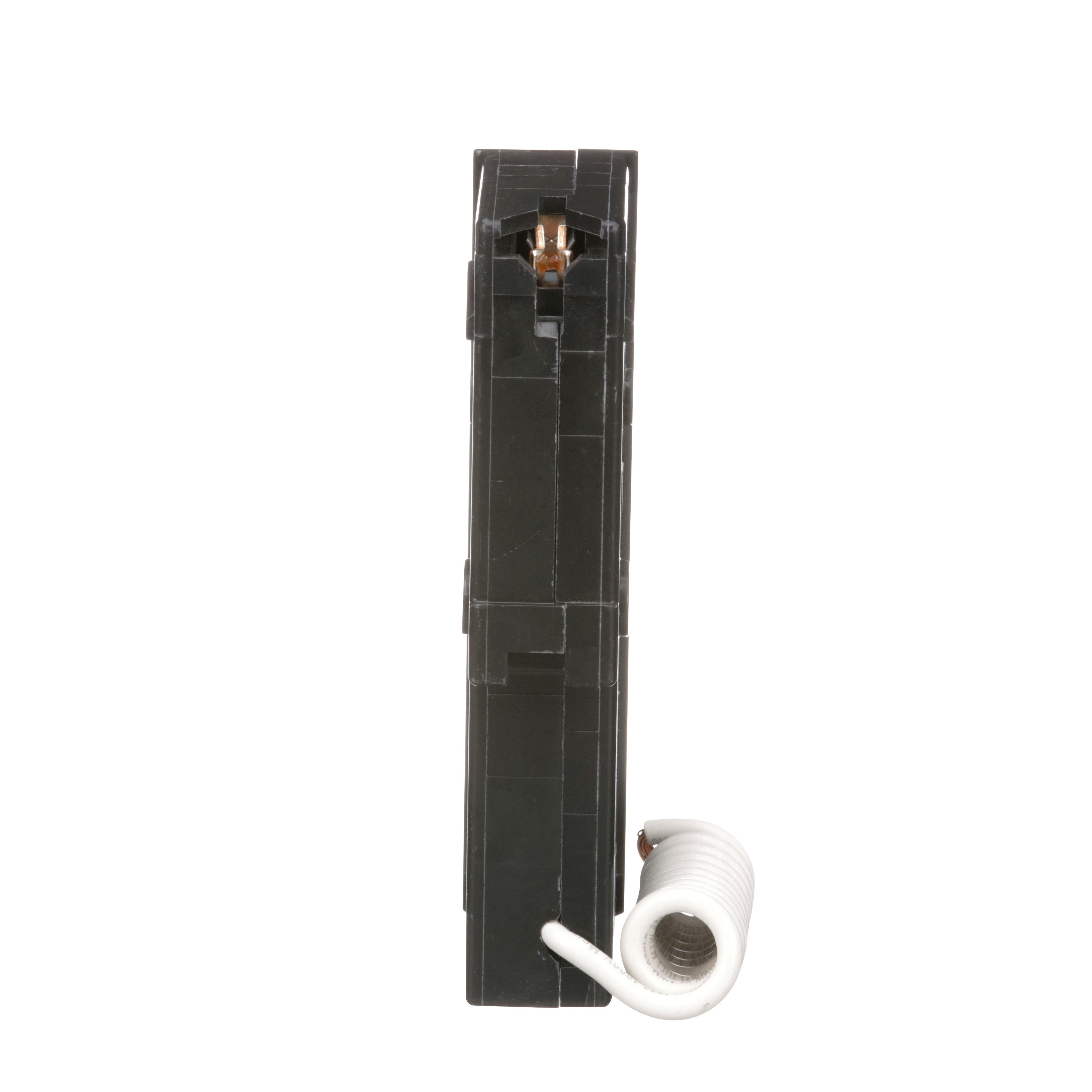

Square-D 20-AMP AFI ARC CIRCUIT BREAKERS SQU HOM-1-20-C-AFI
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 20A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. Homeline combination arc fault circuit interrupters provide overload and short circuit protection, plus arc fault protection in accordance with the NEC and UL1699. This breaker has a pigtail neutral. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed.
-
BrandSquare D™
-
UPC785901601517
-
Manufacturer Part NumberHOM120CAFI
-
CountryUSA
-
Temperature Rating104 deg F
-
Frequency Rating50/60 Hz
-
Trip TypeThermal Magnetic
-
TypeType HOM
-
Connection TypeTerminal Screw
-
Mounting TypePlug-In
-
Voltage Rating120/240 V AC
-
Amperage Rating20 A
-
Wire Size14 to 8 AWG
-
Number of Poles1
-
Dimensions2.98 in L x 1 in W x 3.13 in H
-
Interrupt Rating10 kA
-
Phase1
- Homeline MCBs provide value through their ease in installation, reliability, and superior circuit protection
- Designed to protect against equipment overloads and short-circuits
- Easy plug on design with SE Homeline Loadcenters
- Faster installations fewer connections
- Saves wire fully distributed split neutral bar
- Frees gutter space no pigtails
- Easier troubleshooting time saver diagnostics provide additional circuit information at the touch of a button
- Faster and easier wiring, all spaces accept tandems
- Homeline™ combination arc fault circuit interrupters provide overload and short circuit protection, plus arc fault protection
-
Alternative Part Number9856405
-
UNSPSC39121603
-
IDEA Index ID9856405
-
Package DescriptionEACH
-
Standards/ApprovalsBuy American Act Compliant|CSA Certified|HACR Rated|NEMA Compliant|RoHS Compliant|UL 1699|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov
-
WarrantyLifetime
-
RoHS
-
Specification Sheet
-
Owners/User Manual
-
Full Engineering Drawing
-
Full Engineering Drawing
