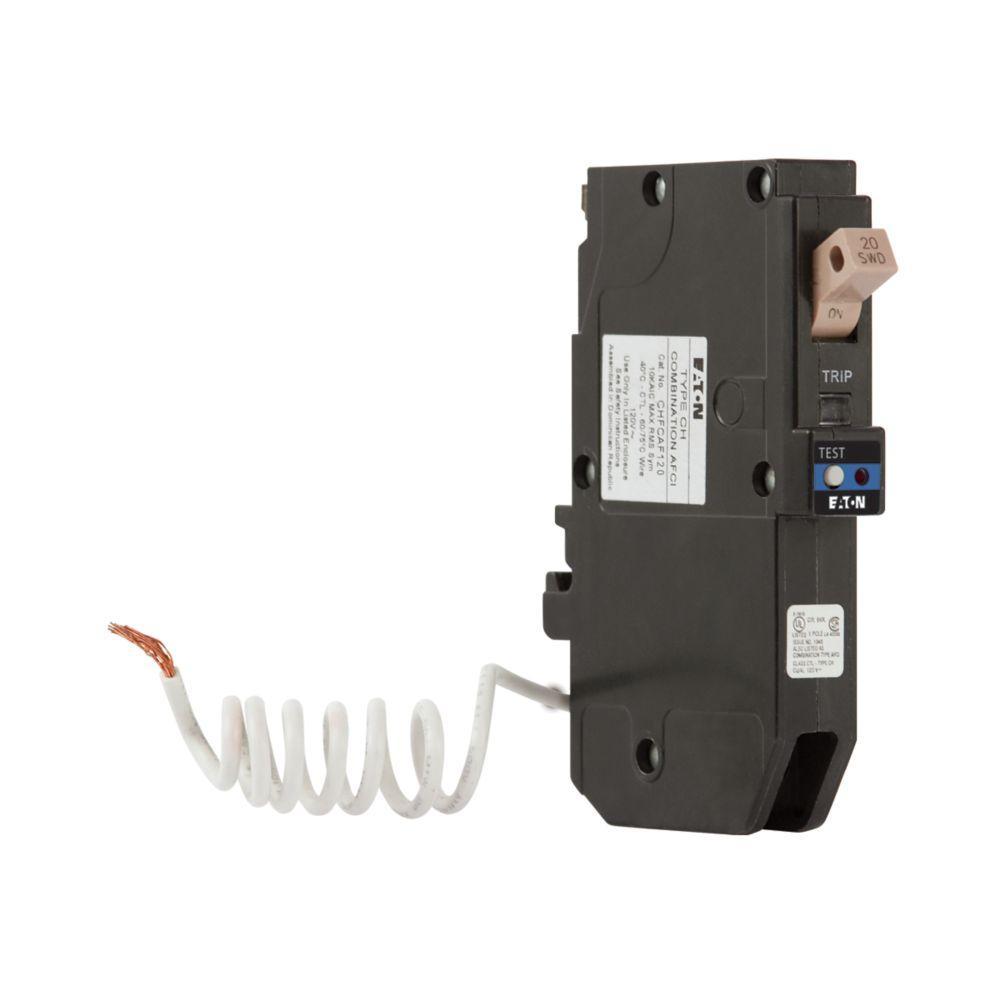

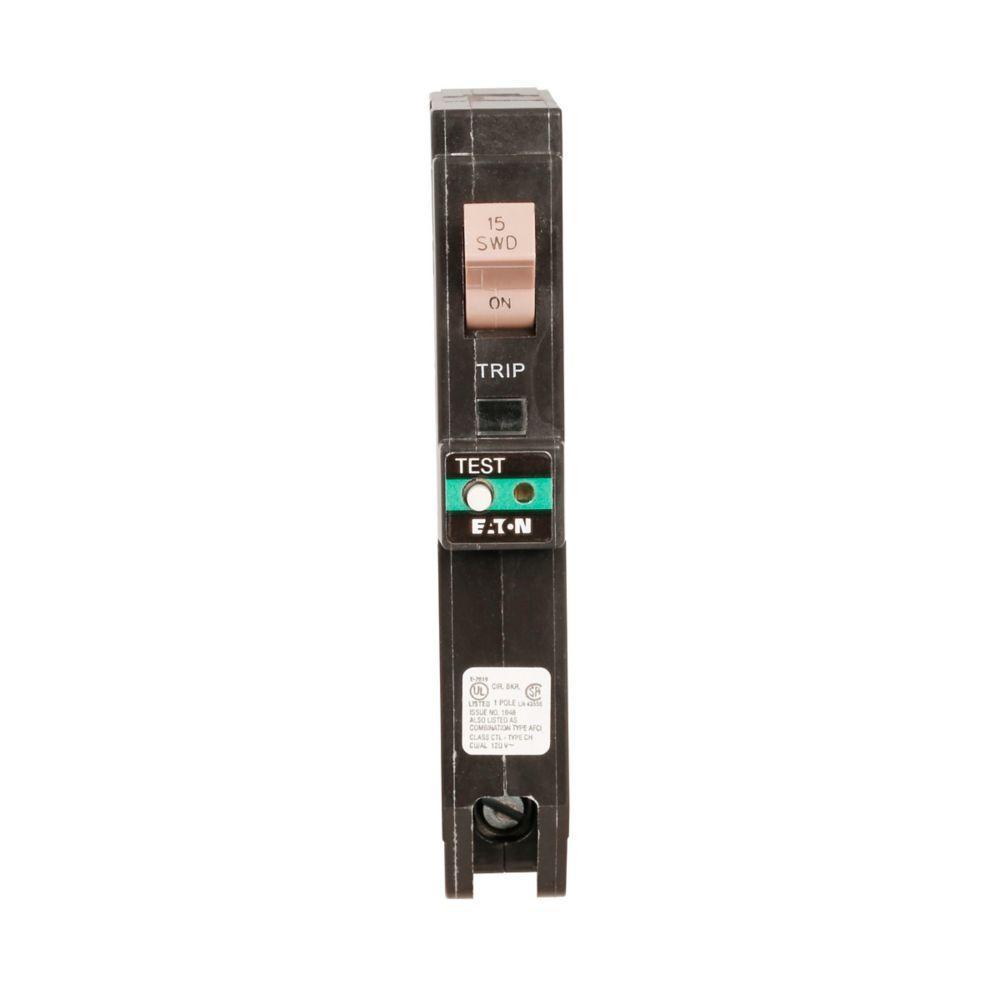

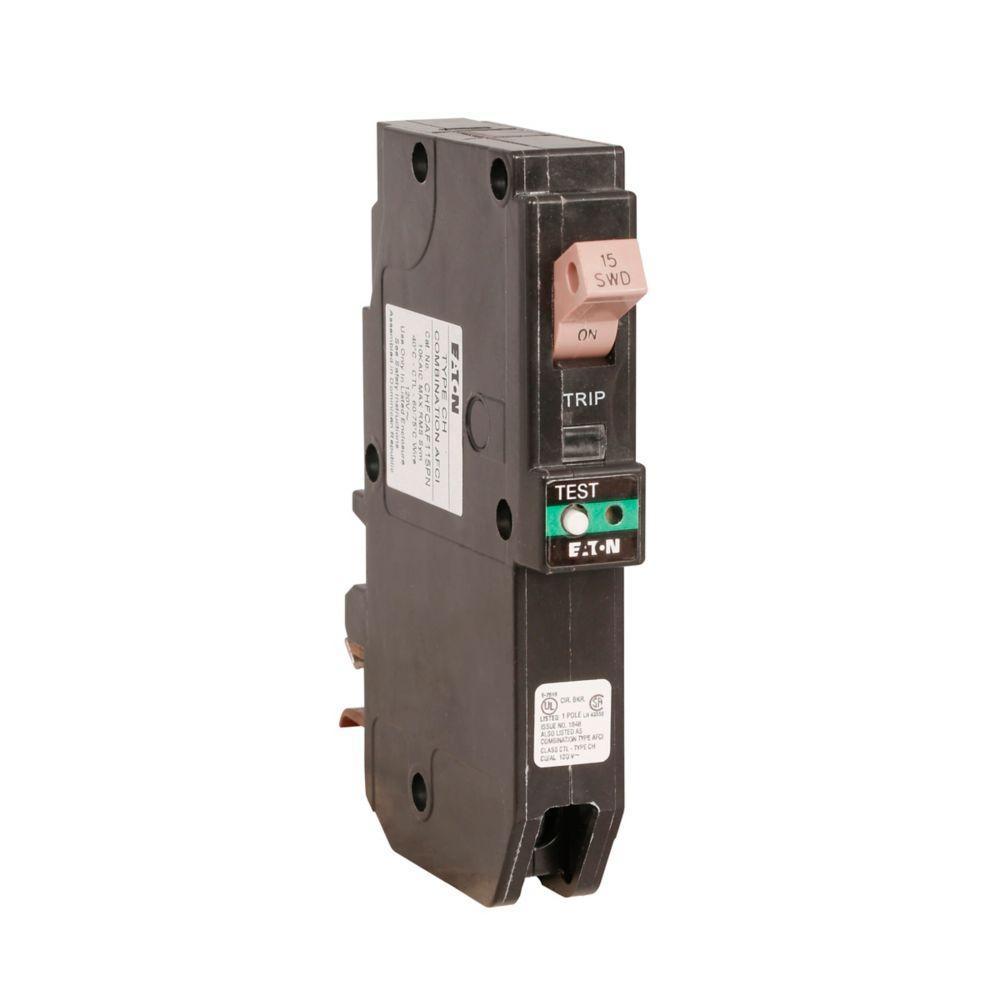

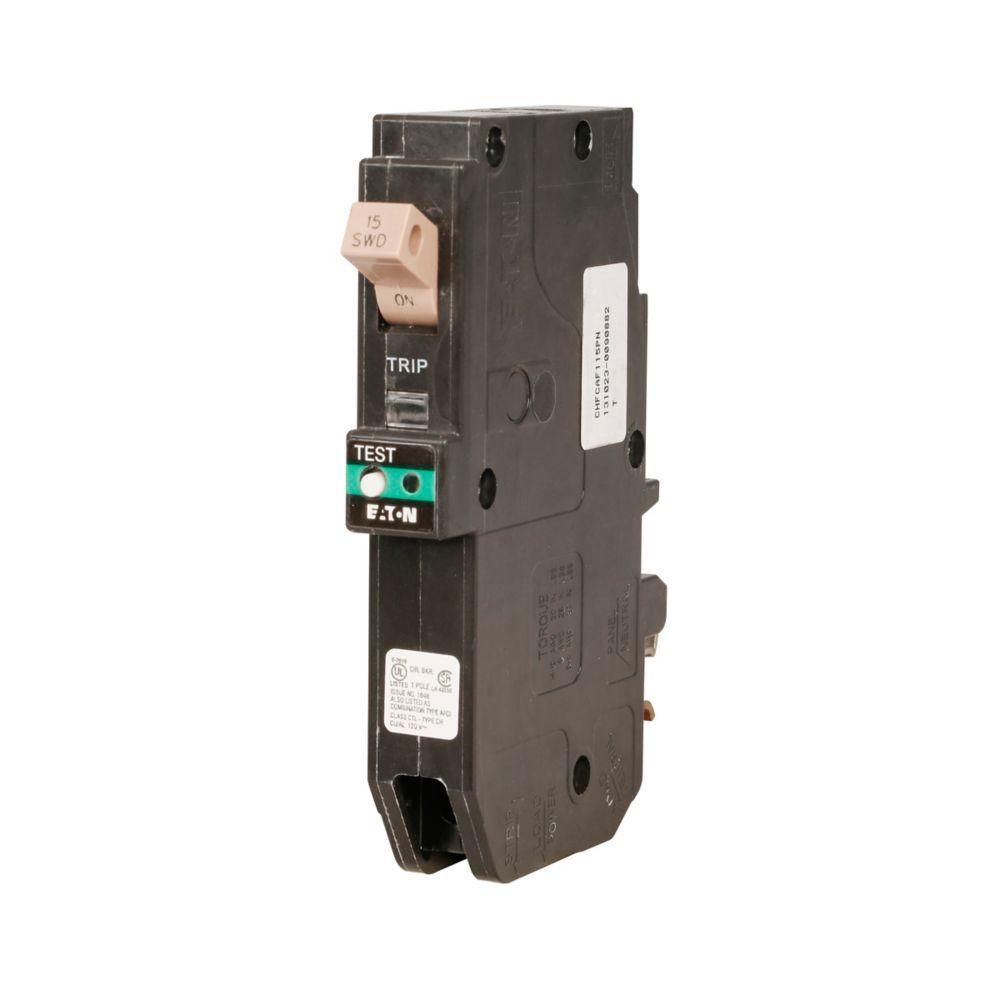

EATON CHFCAF120 Type CH Branch Feeder Combination AFCI Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1 Poles
EATON CH ground fault current interrupters (GFCIs) are 3/4 in W and provide superior safety over a standard electrical outlet in areas where electricity may come into contact with water. GFCIs are required in any application near water such as kitchen countertops, bathrooms, swimming pools, hot tubs and outdoor receptacles. They immediately break the circuit when electrical current leakage is detected, reducing the risk of shock and electrocution.
-
BrandEATON
-
UPC786685546186
-
Manufacturer Part NumberCHFCAF120
-
CountryUSA
-
TypeType CH Branch Feeder Combination
-
Connection TypePigtail
-
Mounting TypePlug-On
-
Voltage Rating120/240 V AC
-
Amperage Rating20 A
-
Number of Poles1
-
Dimensions6 x 3-1/2 x 1-1/4 in
-
Interrupt Rating10 kA
- EATON volume 1 residential and light commercial
- Branch feeder circuit breaker
-
Alternative Part Number11961364
-
UNSPSC39121603
-
IDEA Index ID11961364
-
Package DescriptionEACH
-
Standards/ApprovalsHACR Rated|UL Listed
-
Warranty10 years
-
Specification Sheet
-
Owners/User Manual
