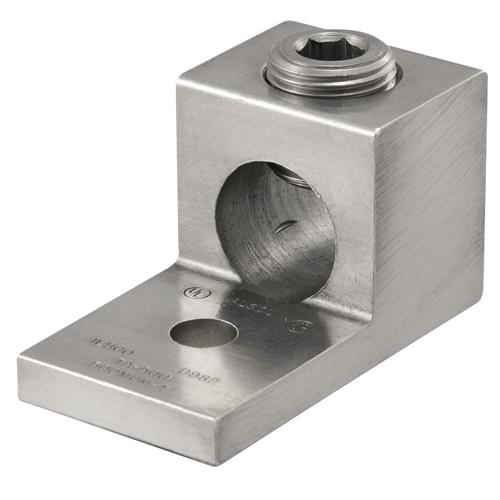

ILSCO® ClearChoice® TA-500 1-Conductor Dual Rated Mechanical Terminal Lug, 4 AWG to 500 kcmil Aluminum/Copper Conductor, 3/8 in Stud, 1 Bolt Hole, 6061-T6 Aluminum Alloy
ILSCO® ClearChoice® TA-500 1-Conductor Dual Rated Mechanical Terminal Lug, 4 AWG to 500 kcmil Aluminum/Copper Conductor, 3/8 in Stud, 1 Bolt Hole, 6061-T6 Aluminum Alloy
-
BrandILSCO®
-
UPC783669891010
-
Manufacturer Part NumberTA-500
-
CountryUSA
-
Temperature Rating90 deg C
-
FinishElectro-Plated Tin
-
Material6061-T6 Aluminum Alloy
-
Type1-Conductor Dual Rated
-
Conductor Size4 AWG to 500 kcmil
-
Conductor TypeAluminum/Copper
-
Voltage Rating2000 V AC
-
Number of Bolt Holes1
-
SeriesTA Series
-
Dimensions2.8125 in L x 1.5 in W x 1.562 in H
-
Specifications1/2 in Hex
-
Stud Size3/8 in
- Manufactured from high strength 6061-T6 aluminum alloy
- Chamfered wire entry provides ease of installation
- Provides low contact resistance
- Ensures reliability for copper or aluminum conductors
- 1-stud
- Suitable for use with either copper or aluminum conductors
-
Alternative Part Number7780384
-
UNSPSC39121408
-
IDEA Index ID7780384
-
Package DescriptionEACH
-
Standards/ApprovalsCSA File No. LR-29601|UL 453G|UL 486A-B File No. E6207|ECCN EAR99
-
Specification Sheet
-
Instruction/Installation Manual
-
Instruction/Installation Manual
