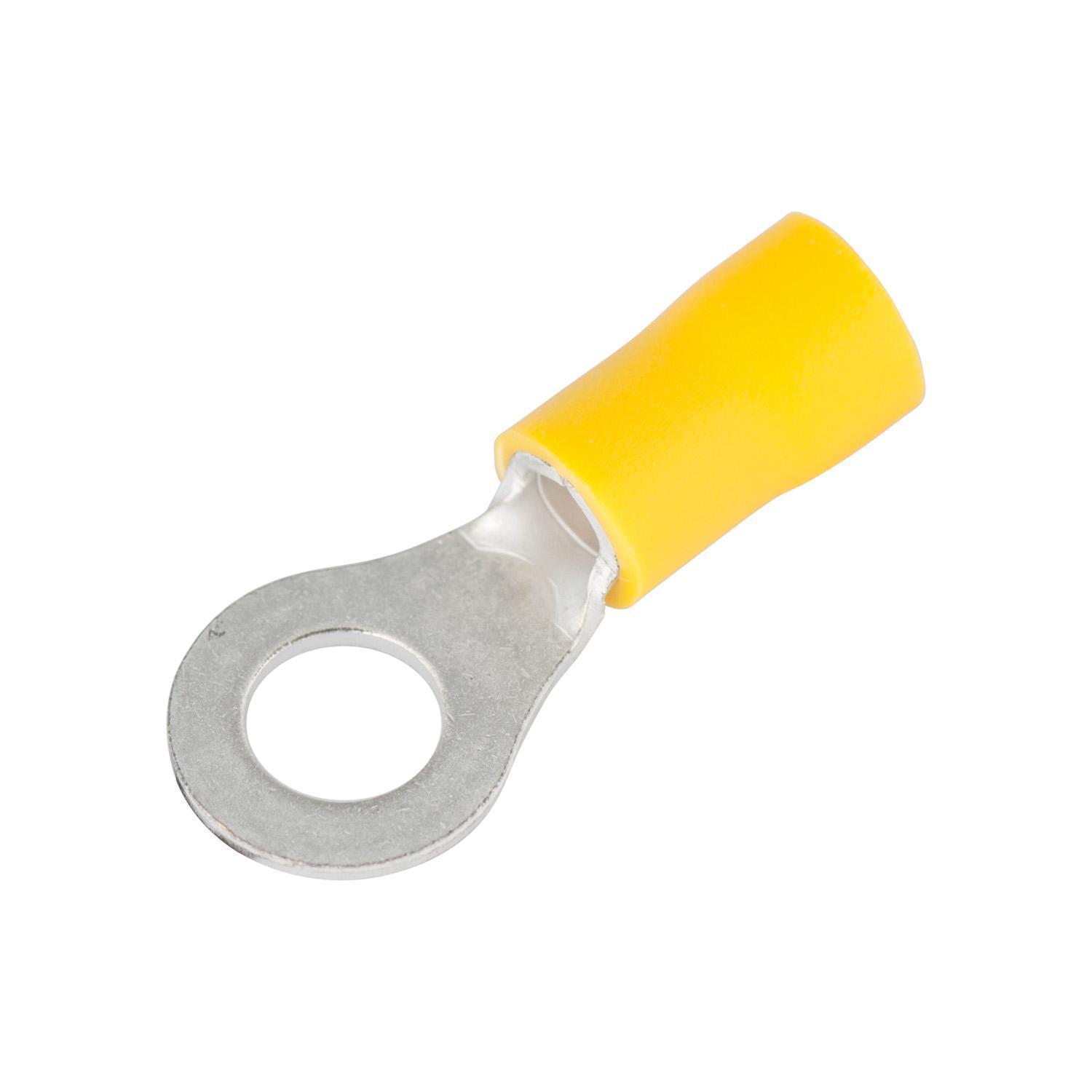

Gardner Bender 20-107 Crimp Ring Terminal, 12 to 10 AWG Conductor, 1.16 in L, Yellow

0 Ratings
$3.68
In Stock
SKU: JWH530026
GTIN (EAN,ISBN): 00032076050023
ECM Industries logo
nVent logo

The Gardner Bender™ quick and always reliable crimp type wire terminals feature color-coded barrels denoting industry standard wire gauge sizes. Available in ring, spade, disconnect and bullet styles. Vinyl insulated barrels provide a high degree of protection and carry a maximum 600 V rating. Temperature ratings for the complete line are 75 deg C (167 deg F). You will find various terminals for various circuit protection devices, all insulated to last for those any environments. Gardner Bender terminals are leading the industry in quality and durability.

In Stock
HCI of Jackson: 7
HCI of Dyersburg: 1
HCI of Humboldt: 1
HCI of Union City: 1
HCI of Gallatin: 0
My Wishlist
Compare
Main specs
  • Brand
    Gardner Bender
  • UPC
    032076050023
  • Manufacturer Part Number
    20-107
  • Country
    USA|Canada
Specification
  • Temperature Rating
    167 deg F
  • Color
    Yellow
  • Type
    Crimp
  • Conductor Size
    12 to 10 AWG
  • Voltage Rating
    600 V AC
  • Specifications
    Vinyl Insulated
  • Length
    1.16 in
  • Stud Size
    #12 to 1/4 in
Features
  • Ring terminals include a vinyl insulated barrel and are rated at a 600 V maximum
  • Industry standard color coded by wire gauge size
  • Quick and reliable crimp-type wire connections
Competitor Information
Cross-Reference Number
530026
Additional Information
  • UNSPSC
    39121405
  • Standards/Approvals
    cULus Listed|RoHS Compliant
  • Warranty
    1 Year
Attachments
Reviews

There are yet no reviews for this product.
