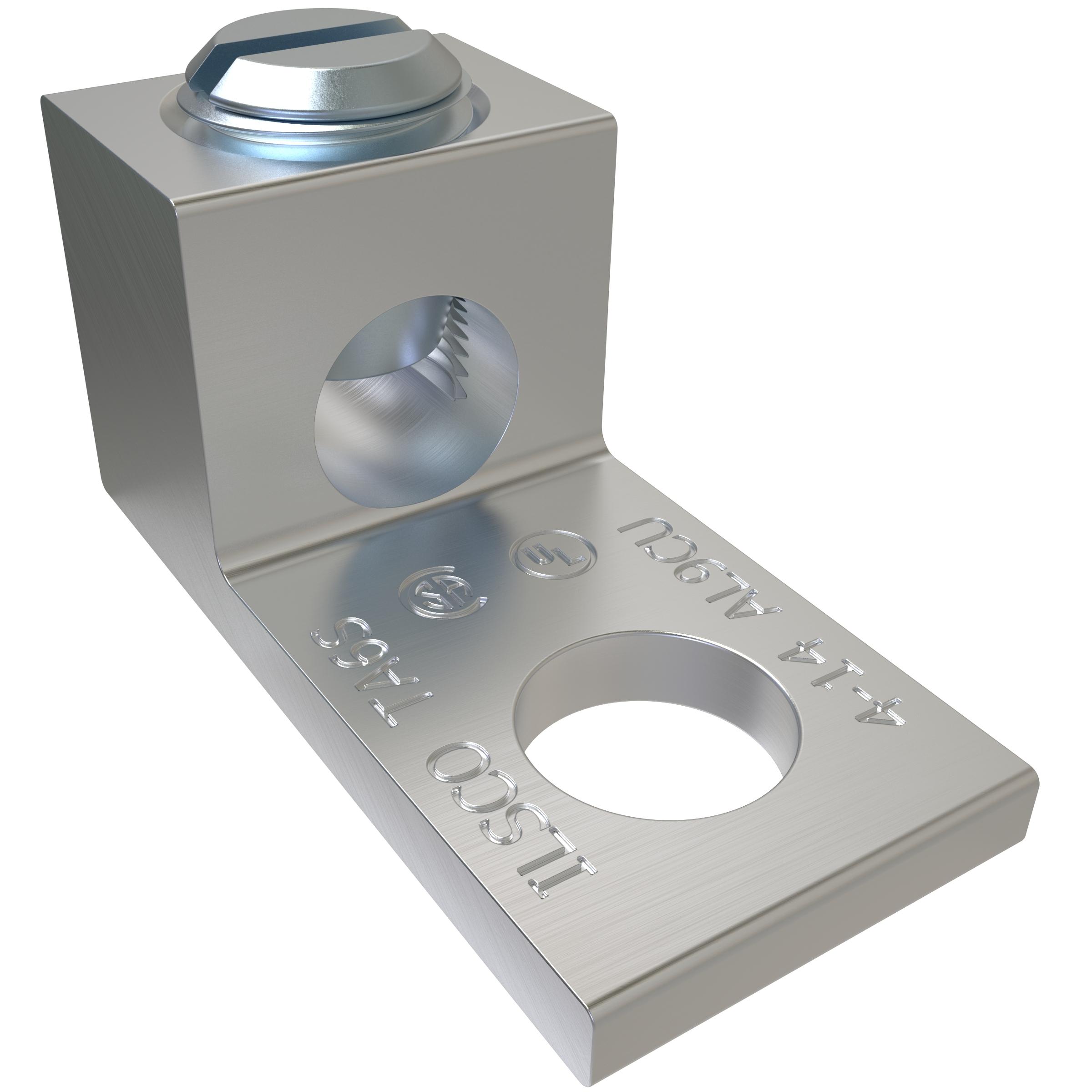

ILSCO® ClearChoice® TA-6-S 1-Conductor Dual Rated Mechanical Terminal Lug, 14 to 4 AWG Aluminum/Copper Conductor, 1/4 in Stud, 1 Bolt Hole, 6061-T6 Aluminum Alloy
ILSCO® ClearChoice® TA-6-S 1-Conductor Dual Rated Mechanical Terminal Lug, 14 to 4 AWG Aluminum/Copper Conductor, 1/4 in Stud, 1 Bolt Hole, 6061-T6 Aluminum Alloy
-
BrandILSCO®
-
UPC783669888386
-
Manufacturer Part NumberTA-6-S
-
CountryUSA
-
Temperature Rating90 deg C
-
FinishElectro-Plated Tin
-
Material6061-T6 Aluminum Alloy
-
Type1-Conductor Dual Rated
-
Conductor Size14 to 4 AWG
-
Conductor TypeAluminum/Copper
-
Voltage Rating2000 V AC
-
Number of Bolt Holes1
-
SeriesTA Series
-
Dimensions1-1/16 in L x 1/2 in W x 1/2 in H
-
SpecificationsSlotted Hex
-
Stud Size1/4 in
- Manufactured from high strength 6061-T6 aluminum alloy
- Chamfered wire entry provides ease of installation
- Provides low contact resistance
- Ensures reliability for copper or aluminum conductors
- 1-stud
- Suitable for use with either copper or aluminum conductors
-
Alternative Part Number7780352
-
UNSPSC39121408
-
IDEA Index ID7780352
-
Package DescriptionEACH
-
Standards/ApprovalsCSA File No. LR-29601|UL 453G|UL 486A-B File No. E6207|ECCN EAR99
-
Specification Sheet
-
Instruction/Installation Manual
-
Warranty Information
