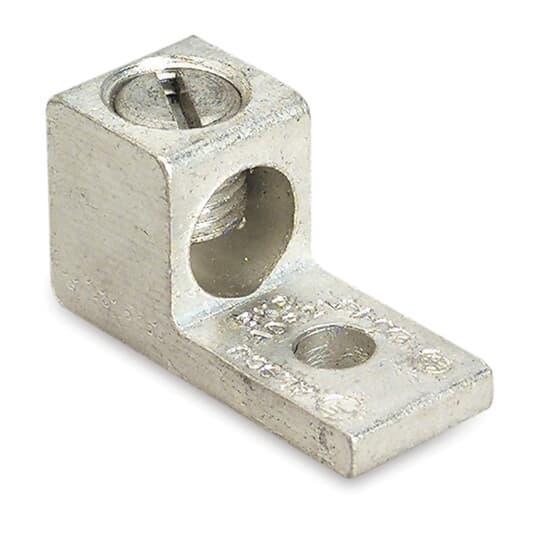

Blackburn® ADR11 Type ADR-ALCUL Dual-Rated Mechanical Lugs, 14 to 1/0 AWG Conductor Aluminum/Stranded Copper Conductor, 1/4 in Stud, 1 Bolt Holes

0 Ratings
$3.68
In Stock
SKU: JWH538000
GTIN (EAN,ISBN): 00783786610044
ABB_logo3

Blackburn® cast, forged or formed mechanical connections, produced in economical copper and dual-rated aluminum, provide unequaled variety with a large variety of UL and CSA certified solutions for your electrical interface needs.

In Stock
HCI of Jackson: 0
HCI of Dyersburg: 0
HCI of Humboldt: 6
HCI of Union City: 0
HCI of Gallatin: 5
My Wishlist
Compare
Main specs
  • Brand
    Blackburn®
  • UPC
    783786610044
  • Manufacturer Part Number
    ADR11
  • Country
    USA
Specification
  • Finish
    Tin Plated
  • Material
    Aluminum
  • Type
    Type ADR-ALCUL Dual-Rated
  • Conductor Size
    14 to 1/0 AWG
  • Conductor Type
    Aluminum/Stranded Copper
  • Voltage Rating
    600 V AC
  • Number of Bolt Holes
    1
  • Dimensions
    1-15/32 in L x 5/8 in W x 25/32 in H
  • Specifications
    1-Conductor, Slotted Screw
  • Stud Size
    1/4 in
Features
  • Easy installation no special tools required
  • Tin plated for low contact resistance
  • Extra aluminum lug
  • Slotted screw-on lugs up through 2/0 stranded
  • 1 stud of 1/4 in
Competitor Information
Competitor Name Competitor Part Number
Grainger 3LN32
Additional Information
  • Alternative Part Number
    10768433|7TAH006600R0193
  • UNSPSC
    39121408
  • IDEA Index ID
    10768433
  • Package Description
    EACH
  • Standards/Approvals
    UL E9809
