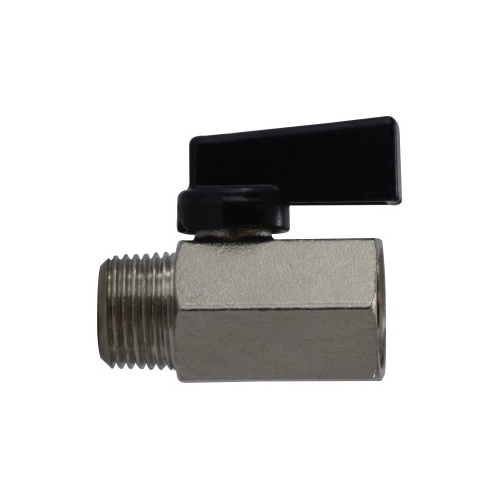

HCI Preferred Supplier 46931 Economy Miniature Ball Valve, 1/4 in Nominal, Female x Male End Style, Brass Body, FKM O-Ring/Stem/Seal Softgoods

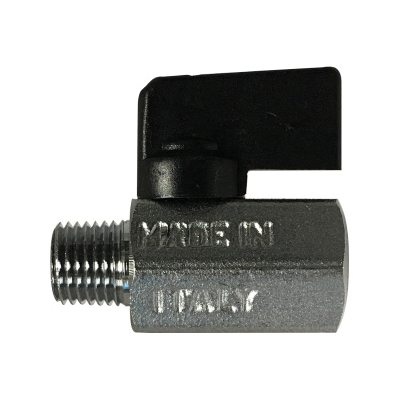

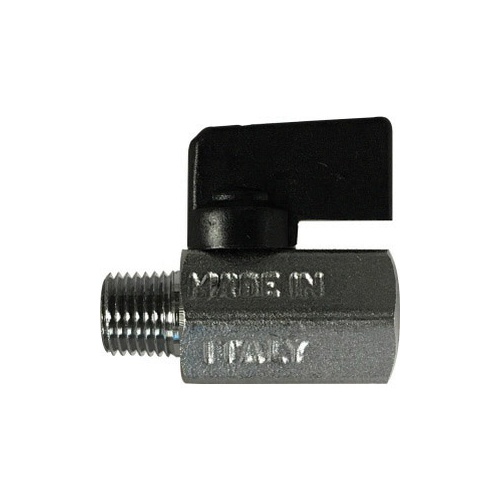

HCI Preferred Supplier 46903I Mini Ball Valve, 1/4 in Nominal, MNPT x FNPT End Style, CW517N Forged Brass Body, PTFE Ball Seat/NBR 80 O-Ring Softgoods
-
BrandGeneric
-
Manufacturer Part Number46931
-
CountryUSA
-
Temperature Rating356 deg F at 142 psi/212 deg F at 355 psi
-
Pressure Rating450 psi
-
MediaAir, Oil and Water
-
Trim MaterialHighly Inert PTFE Seat
-
TypeEconomy
-
Nominal Size1/4 in
-
Ball MaterialNickel Plated Brass
-
Softgoods MaterialFKM O-Ring/Stem/Seal
-
Domestic/ImportImport
-
Body MaterialBrass
-
End StyleFemale x Male
-
FinishPolished Chrome
-
Dimensions1-3/4 in OAL
- Blow-out proof stem for safety
- 1/4 turn instantaneous on-off operation
- Quarter-turn handle design
- Non-adjusting FKM o-ring stem seal design never needs tightening
- Good for propane, Gas and diesel
- Not good for steam
- PTFE ball seat and NBR 80 O-Ring
-
UNSPSC40141607
-
Package Description20/BX
-
Standards/ApprovalsANSI B1.20.1|NSF Approved
-
