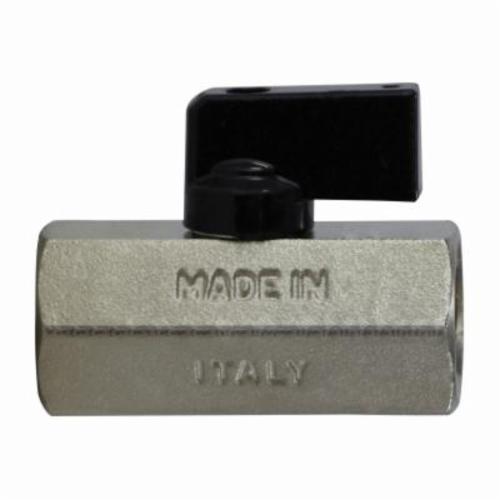

HCI Preferred Supplier 46922I Mini Ball Valve, 1/4 in, FNPT, CW517N Forged Brass Body

0 Ratings
$10.52
Out of Stock
SKU: FTGVF4
noimage_new

HCI Preferred Supplier 46922I Mini Ball Valve, 1/4 in, FNPT, CW517N Forged Brass Body

In Stock
HCI of Jackson: 0
HCI of Dyersburg: 0
HCI of Humboldt: 0
HCI of Union City: 0
HCI of Gallatin: 0
My Wishlist
Compare
Back to: Ball Valves
Main specs
  • Brand
    Generic
  • Manufacturer Part Number
    46922I
  • Country
    USA
Specification
  • Temperature Rating
    32 to 176 deg F
  • Finish
    Polished Chrome
  • Pressure Rating
    235 psi, 300 psi at 75 deg F
  • Trim Material
    CW614N Brass Ring Unit, Stem/UNI 5771 Steel Screw
  • Type
    Mini
  • Nominal Size
    1/4 in
  • Ball Material
    CW517N Polished Chrome Brass
  • Dimensions
    1.81 in OAL, 1.17 in Top of Handle to Inlet Center
  • Softgoods Material
    PTFE Ball Seat/NBR 80 O-Ring
  • Domestic/Import
    Import
  • Body Material
    CW517N Forged Brass
  • End Style
    FNPT
Features
  • Longer body style for longer, deeper thread connections
  • One piece drawn sand blasted chrome plated body
  • Each valve is seal tested for maximum safety
  • Double seal system allows valve to be operated in both directions making installation easier
  • Blowout-proof brass stem
  • 1/4 in turn nylon handle with mechanical stop
  • PTFE ball seat and NBR 80 O-Ring
Additional Information
  • UNSPSC
    40141607
  • Package Description
    50/BX
  • Standards/Approvals
    ANSI B1.20.1|NSF Approved
