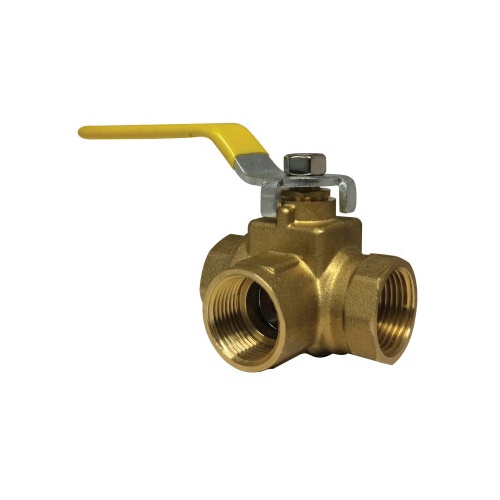

HCI Preferred Supplier 940464 3-Way Ball Valve, 1/4 in Nominal, FIPT End Style, Forged Brass Body, Full Port, PTFE Seal/PVC Cover/NBR O-Ring Softgoods
HCI Preferred Supplier 940464 3-Way Ball Valve, 1/4 in Nominal, FIPT End Style, Forged Brass Body, Full Port, PTFE Seal/PVC Cover/NBR O-Ring Softgoods
-
BrandGeneric
-
Manufacturer Part Number940464
-
CountryUSA
-
Temperature Rating0 to 230 deg F
-
Port TypeFull
-
Pressure Rating600 psi WOG
-
MediaGas, Oil and Water
-
Trim MaterialBrass Stem, Ball Disc/PTFE Seat
-
Type3-Way
-
Nominal Size1/4 in
-
Dimensions1.73 in H x 1.89 in W
-
Softgoods MaterialPTFE Seal/PVC Cover/NBR O-Ring
-
Domestic/ImportImport
-
Body MaterialForged Brass
-
End StyleFIPT
- Double O-Ring stem packing
- Blow-out proof stem
- Steel spring washer/nut/handle, brass end plug/socket
- PTFE seal, PVC cover and NBR O-Ring
-
UNSPSC40141607
-
Package Description50/BX
-
