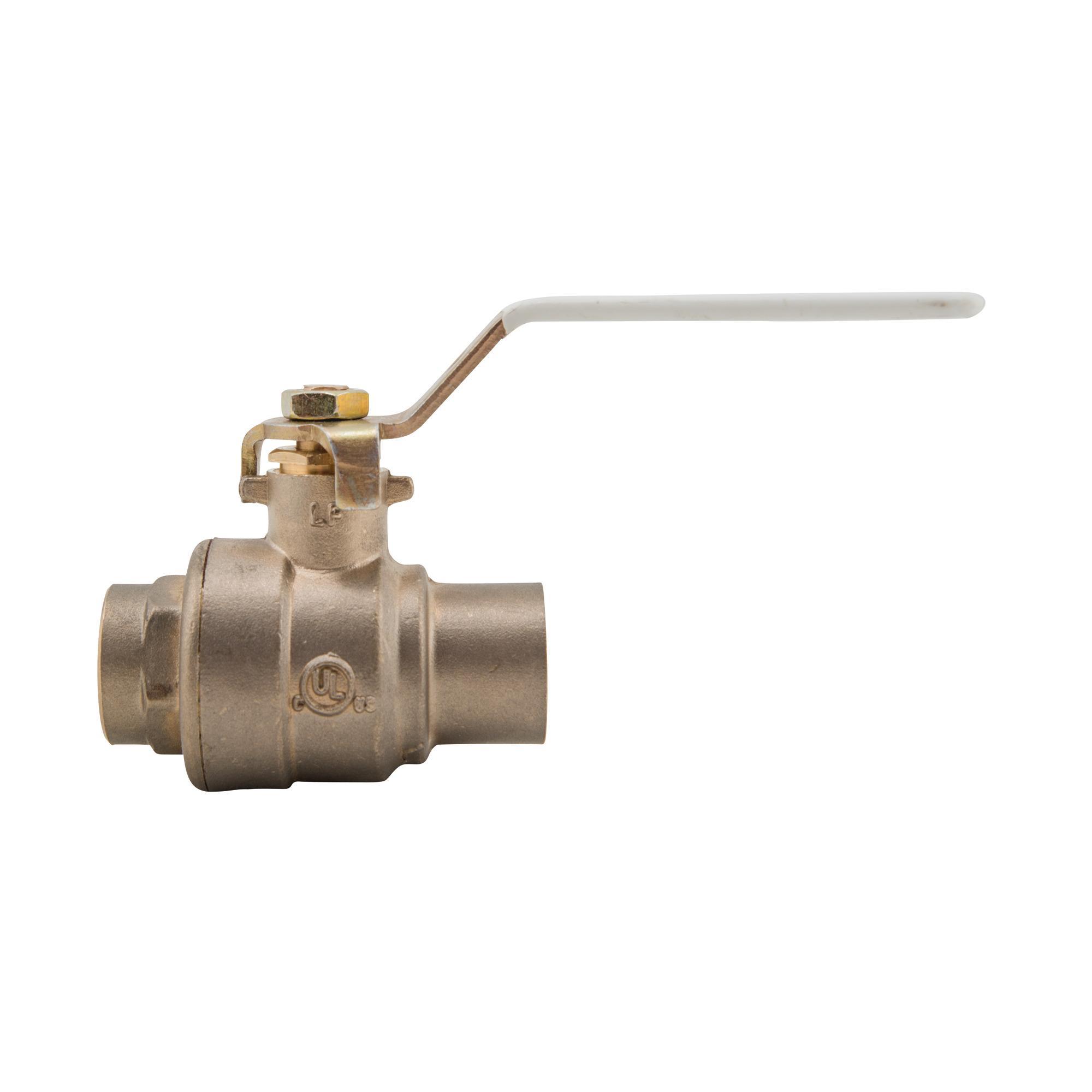

WATTS® 88005705 LFFBVS-3C-M1 2-Piece Ball Valve, 2 in Nominal, Solder End Style, Copper Silicon Alloy Body, Full Port, FKM/PTFE Softgoods, Import
This 2 inch 2-piece full port lead free ball valve is used in residential, commercial, and industrial applications for potable water and a full range of liquids and gases. It features a lead free brass body with solder end connections, bottom-loaded blowout-proof stem, virgin PTFE seat, thrust washer, and adjustable stem packing gland, stem packing nut, chrome plated lead free brass ball, lead free brass adapter and steel handle. Certified NSF-61/ANSI 8, UL listed, and FM approved.
-
BrandWATTS®
-
UPC098268163988
-
Manufacturer Part Number88005705
-
CountryUSA|Canada
-
Temperature Rating-40 to 400 deg F
-
FinishBrass
-
Port TypeFull
-
Pressure Rating150 psi WSP/600 psi WOG
-
Top to Inlet Center3-1/2 in
-
MediaGas/Liquids
-
Trim MaterialBrass/PTFE
-
Type2-Piece
-
Actuator TypeLever Handle
-
Nominal Size2 in
-
SeriesLFFBVS-3C-M1
-
Ball MaterialPolished Chrome Brass
-
Inlet to Outlet Length5-1/4 in
-
Softgoods MaterialFKM/PTFE
-
Domestic/ImportImport
-
Body MaterialCopper Silicon Alloy
-
Orifice Size1-15/16 in
-
End StyleSolder
- Machined chrome plated lead free brass ball
- Fluorocarbon elastomer stem O-ring prevents stem leaks
- Machined chrome plated lead free brass ball
-
Alternative Part Number2 LFFBVS-3C-M1
-
UNSPSC40141607
-
Package DescriptionEACH
-
Standards/ApprovalsFM Approved|MSS-SP-110|NSF/ANSI 61/8|UL Listed|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
-
WarrantyLimited
-
Specification Sheet
