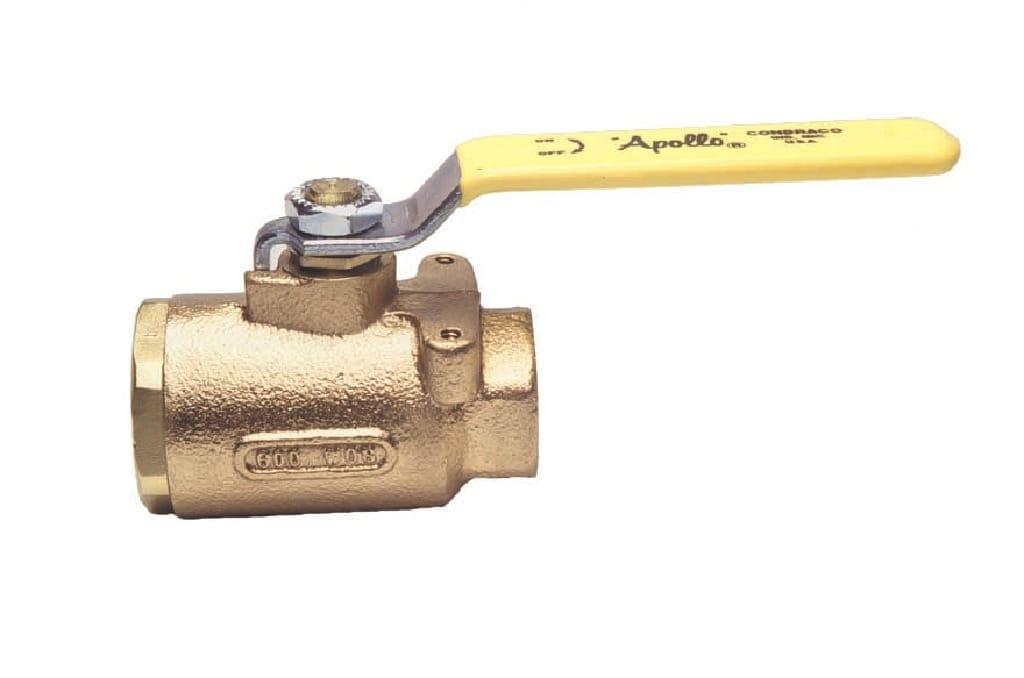

NIBCO 77-102-01 2-Piece Ball Valve, 3/8 in Nominal, FNPT End Style, Bronze Body, Full Port, RPTFE Softgoods, Domestic
Designed for easy actuator mounting or panel mounting where highest Cv values are desired. RPTFE seats and stuffing box ring. Also available with 250 lb steam trim option.
-
BrandApolloâ„¢
-
UPC670750702860
-
Manufacturer Part Number7710201
-
CountryUSA
-
Temperature Rating500 deg F
-
Port TypeFull
-
Pressure Rating600 psi CWP
-

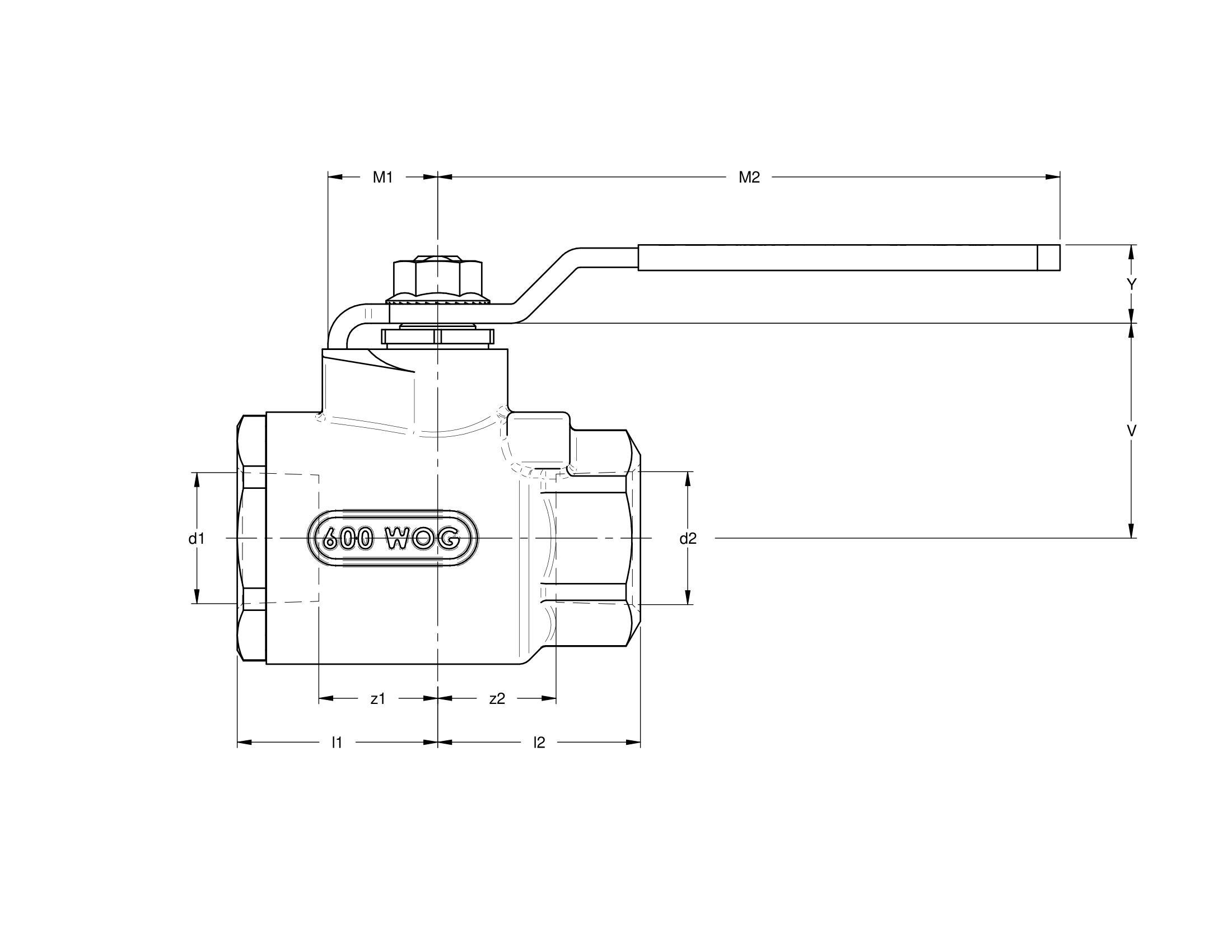

Top to Inlet Center1.81 in
-
MediaGas/Water
-
Trim MaterialBrass Stem/RPTFE Seat
-
Type2-Piece
-
Actuator TypeLever Operated
-
Nominal Size3/8 in
-
Series77-100
-
Ball MaterialChrome Plated Brass
-
Inlet to Outlet Length2-1/4 in
-
Softgoods MaterialRPTFE
-
Domestic/ImportDomestic
-
Body MaterialBronze
-
Orifice Size1/2 in
-
End StyleFNPT
- 01 - Standard Configuration
- Blow-out proof stem
- Hardened ball for wear resistance
- 100% factory tested
- Mounting pad for easy actuator mounting
- 150 psi working steam pressure
- Vacuum service to 29 in Hg
- Heavy duty ball valve and stem packing
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 2EEK1 |
-
UNSPSC40141607
-
Package Description10/BX
-
Standards/ApprovalsASTM B584-C84400 Body|ASTM B16/B283-C37700 Ball|ASTM B16 Stem|ARRA Compliant|CRN OC10908.5C|Federal Specifications WW-V-35C Type II Composition BZ Style 3|MSS SP-110|PROP65: Cancer and Reproductive Harm
-
Warranty5 Years
-
