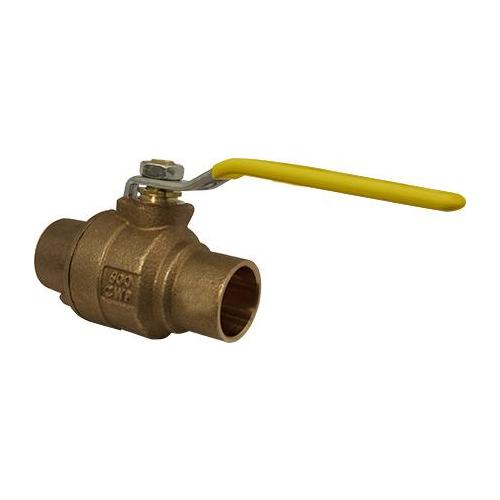

NIBCO 77-C-204-01 A2-Piece Ball Valve, 3/4 in Nominal, Solder End Style, Bronze Body, Full Port, RPTFE Softgoods, Domestic
The Apollo™ 77C-A Contractor Series ball valve features a dezincification resistant bronze body, premium RPTFE seats and stem packing and a Solid Ball design that delivers true full-port flow performance. Cast and machined in Apollo™'s South Carolina manufacturing plants using proven ASTM materials.
-
BrandApollo™
-
UPC670750351525
-
Manufacturer Part Number77C20401A
-
CountryUSA
-
Temperature Rating450 deg F
-
Port TypeFull
-
Pressure Rating600 psi CWP
-

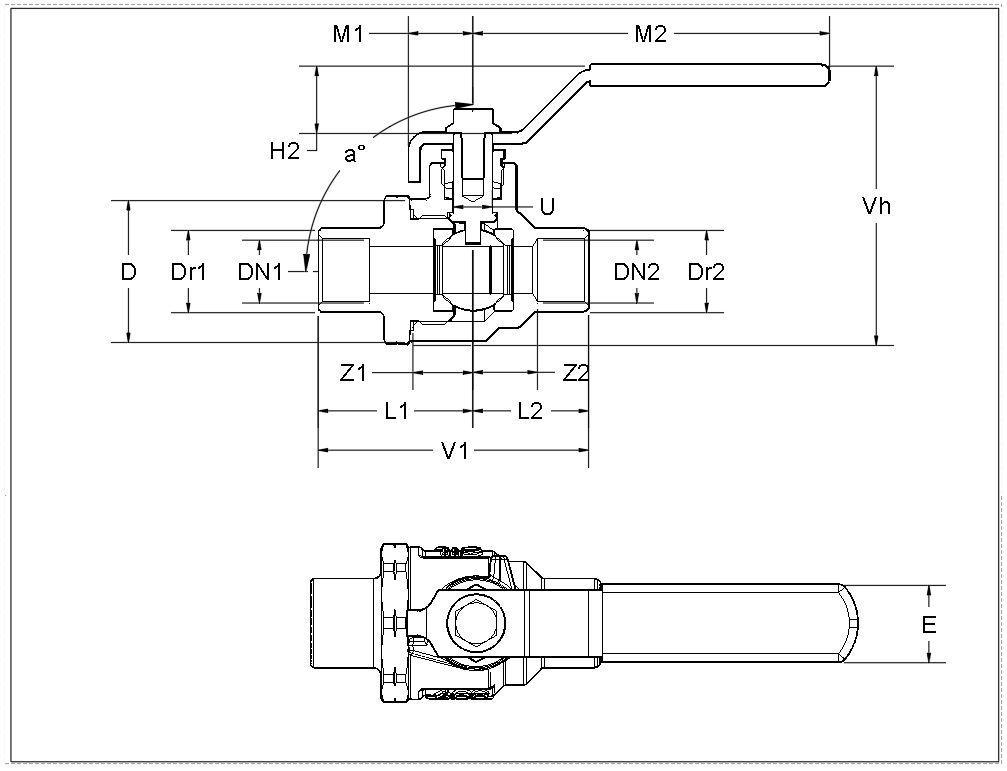

Top to Inlet Center1.91 in
-
MediaWater
-
Trim MaterialBrass Stem/RPTFE Seat
-
Type2-Piece
-
Actuator TypeLever Operated
-
Nominal Size3/4 in
-
Series77C-A
-
Ball MaterialChrome Plated Brass
-
Inlet to Outlet Length3.2 in
-
Softgoods MaterialRPTFE
-
Domestic/ImportDomestic
-
Body MaterialBronze
-
End StyleSolder
- Blow-out proof stem
- Adjustable stem packing
- Full port solid ball design
- 100% factory tested
- Zinc plated steel nut
- Steel, zinc plated with vinyl grip handle
- Vacuum service to 29 in Hg
- Standard lever and trim
- 150 psi steam working pressure
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 48XH65 |
| Ferguson | A77C20401A |
-
UNSPSC40141607
-
Package Description10/BX
-
Standards/ApprovalsASTM B16 Stem|ASTM B584 Retainer|CRN OC10908.5C|IAPMO R and T/UPC IGC Z1157|MSS SP-110|PROP65: Cancer and Reproductive Harm
-
Warranty5 Years
-
