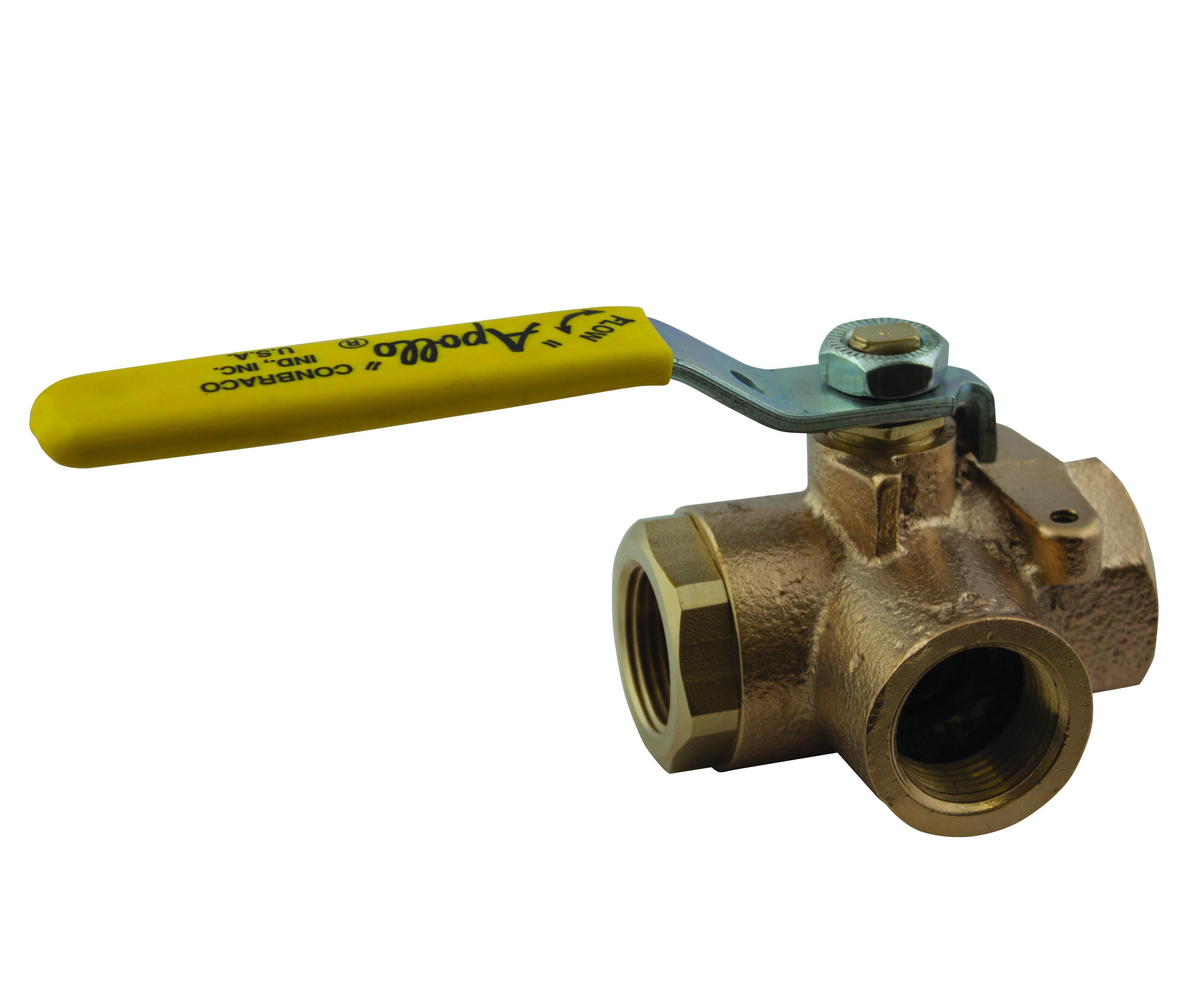

NIBCO 70-605-01 3-Way Ball Valve, 1 in Nominal, FNPT End Style, Bronze Body, Standard Port, MPTFE/PTFE Softgoods, Domestic
The Apollo™ 70-600 Series standard port 3-Way Diversion valve is ideal for making tank selection and fluid transfers simpler. Manufactured with proven ASTM Materials in the US.
-
BrandApollo™
-
UPC670750673788
-
Manufacturer Part Number7060501
-
CountryUSA
-
Temperature Rating500 deg F
-
Port TypeStandard
-
Pressure Rating400 psi CWP
-
Top to Inlet Center2.2 in
-
MediaGas/Water
-
Trim MaterialBrass Stem
-
Type3-Way
-
Actuator TypeLever Operated
-
Nominal Size1 in
-
Series70-600
-
Ball MaterialChrome Plated Brass
-
Inlet to Outlet Length3.2 in
-
Softgoods MaterialMPTFE/PTFE
-
Domestic/ImportDomestic
-
Body MaterialBronze
-
Orifice Size0.87 in
-
End StyleFNPT
- Reinforced seats
- Blow-out proof stem
- Drilled and tapped mounting pad
- Steel, zinc plated with vinyl lever and grip
- B16 brass retainer
- Steel, zinc plated lever nut
- MPTFE stem packing and PTFE body seal
| Competitor Name | Cross-Reference Number |
|---|---|
| Ferguson | A7060501 |
| Grainger | 1CKG4 |
-
UNSPSC40141607
-
Package Description6/BX
-
Standards/ApprovalsASTM B16 Valve Body and Stem|CRN OC10908.5C|Federal Specifications WW-V-35C|MSS SP-110|PROP65: Cancer and Reproductive Harm
-
Warranty5 Years
-

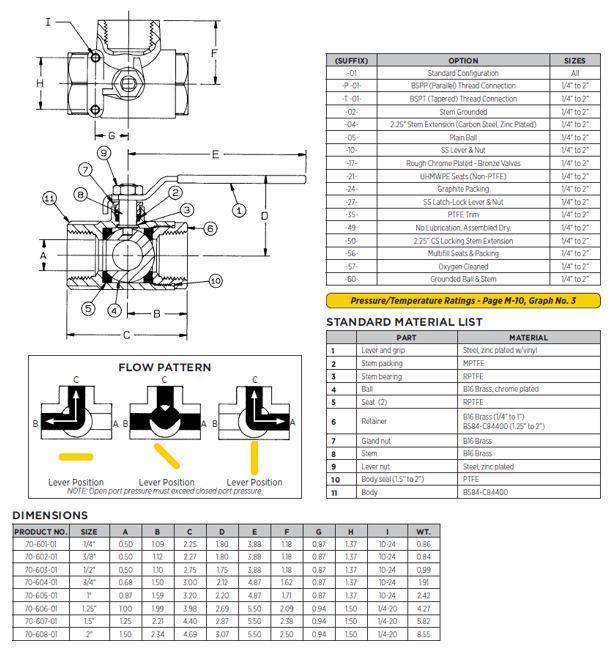

Specification Sheet
