Gates HYD/FITTINGS GAT 6-G-8-MB
It’s what’s inside the MegaCrimp coupling that makes it perform so well, the “C” insert. This “C” insert allows usage with different hose constructions and wall thicknesses. In addition, the C-insert ensures an even distribution of crimping forces to form a concentric seal. That simplifies your inventory requirements since one size can accommodate many different hose ODs, on both one- and two-wire braid hoses and select Xpiral hoses. An additional bonus: MegaCrimp couplings are fully qualified for SAE, EN, and ISO performance.
-
BrandGates® Power Transmission
-
UPC72053323467
-
Manufacturer Part Number6G-8MB
-
CountryUSA|Canada
-
MaterialSteel
-
TypeLight Duty Straight
-
Nominal Size3/8 in x 3/4-16
-
Hex Size7/8 in Stem
-
SeriesG25 L Series
-
Domestic/ImportImport
-

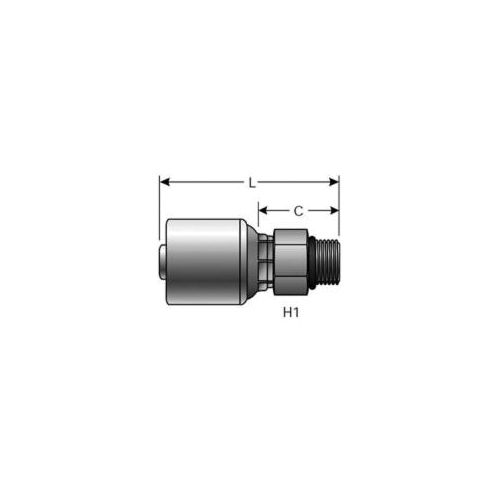

Length2.28 in
-
End StyleHose x Male O-Ring Boss™
- Robust
- Low profile
- Full stem insertion
- Full length crimp
- Tested to industry leading 600000 impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat™ plating for 3X better corrosion resistance than SAE standard
- 1.19 in cut-off length
-
Alternative Part NumberG25120-0608|710013245
-
UNSPSC40172601
-
Package DescriptionEACH
-
Standards/ApprovalsSAE J1926/3
-
WarrantyLimited
-
