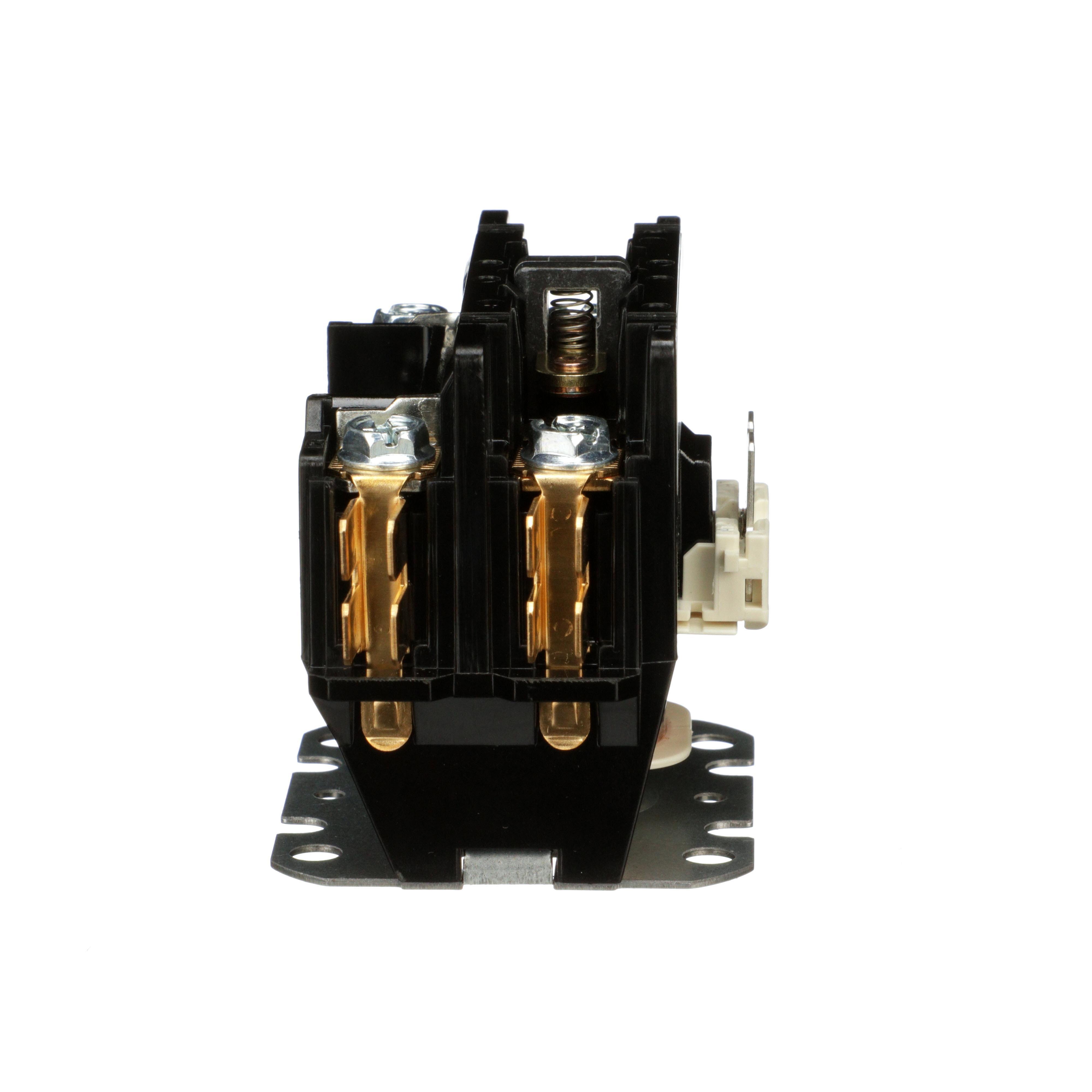

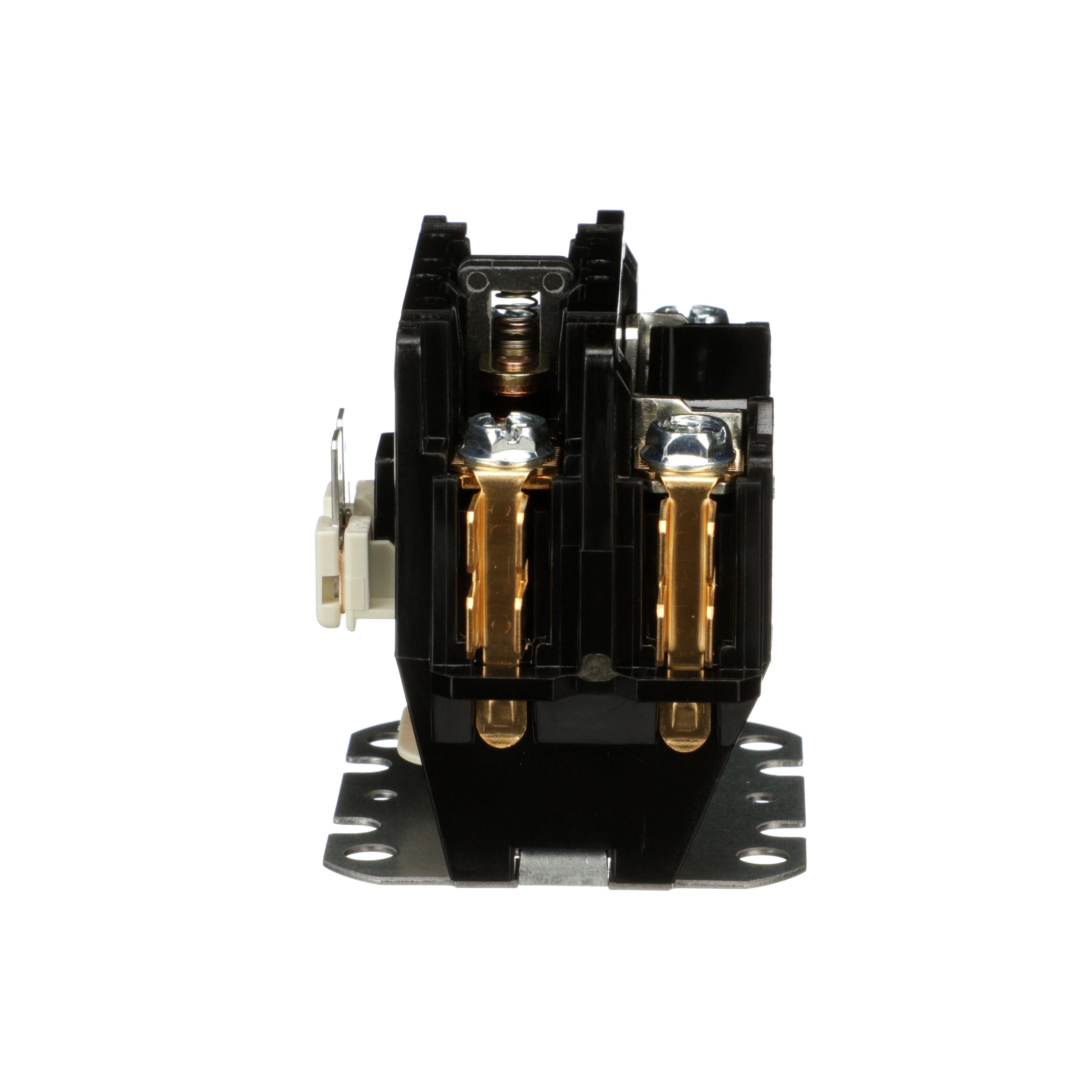

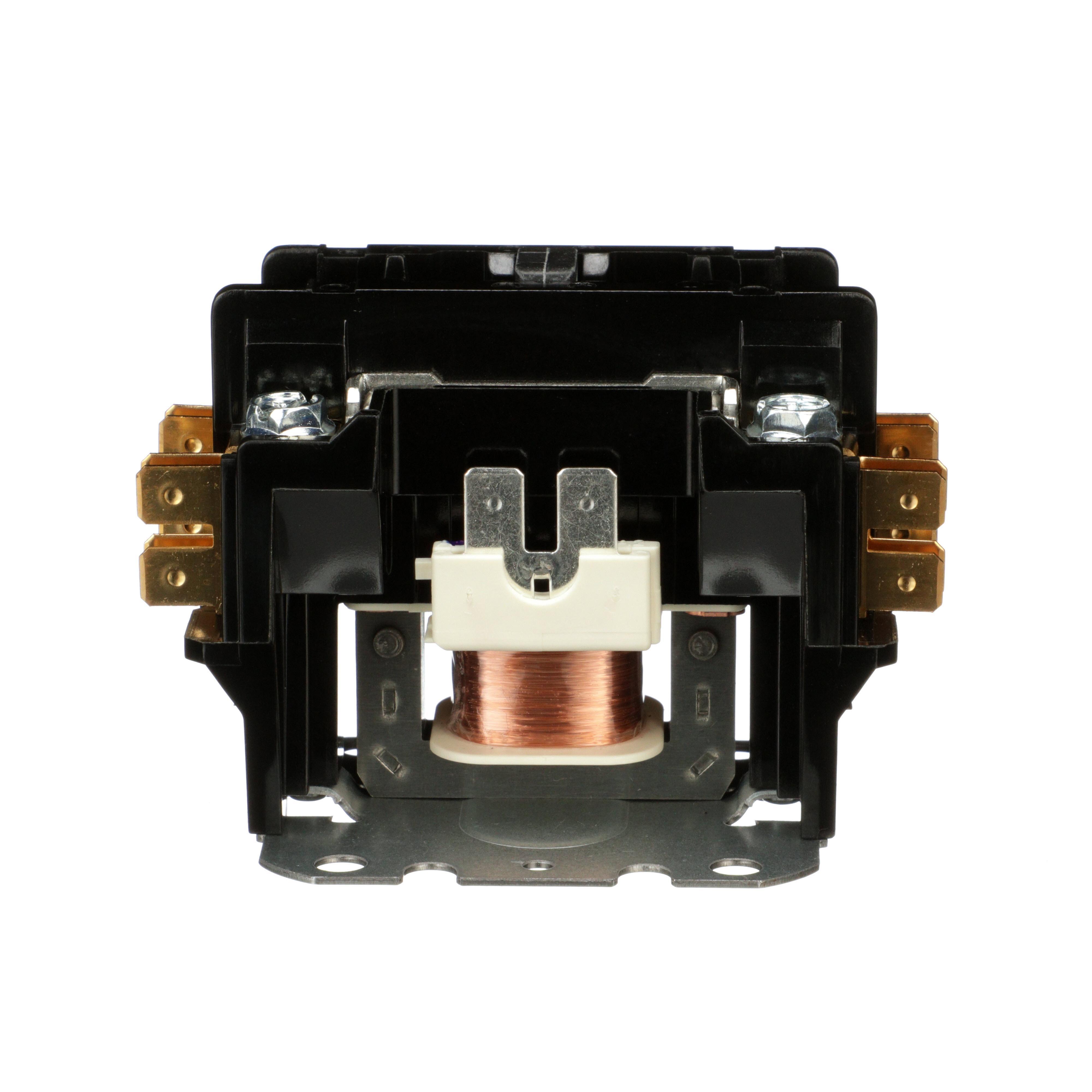

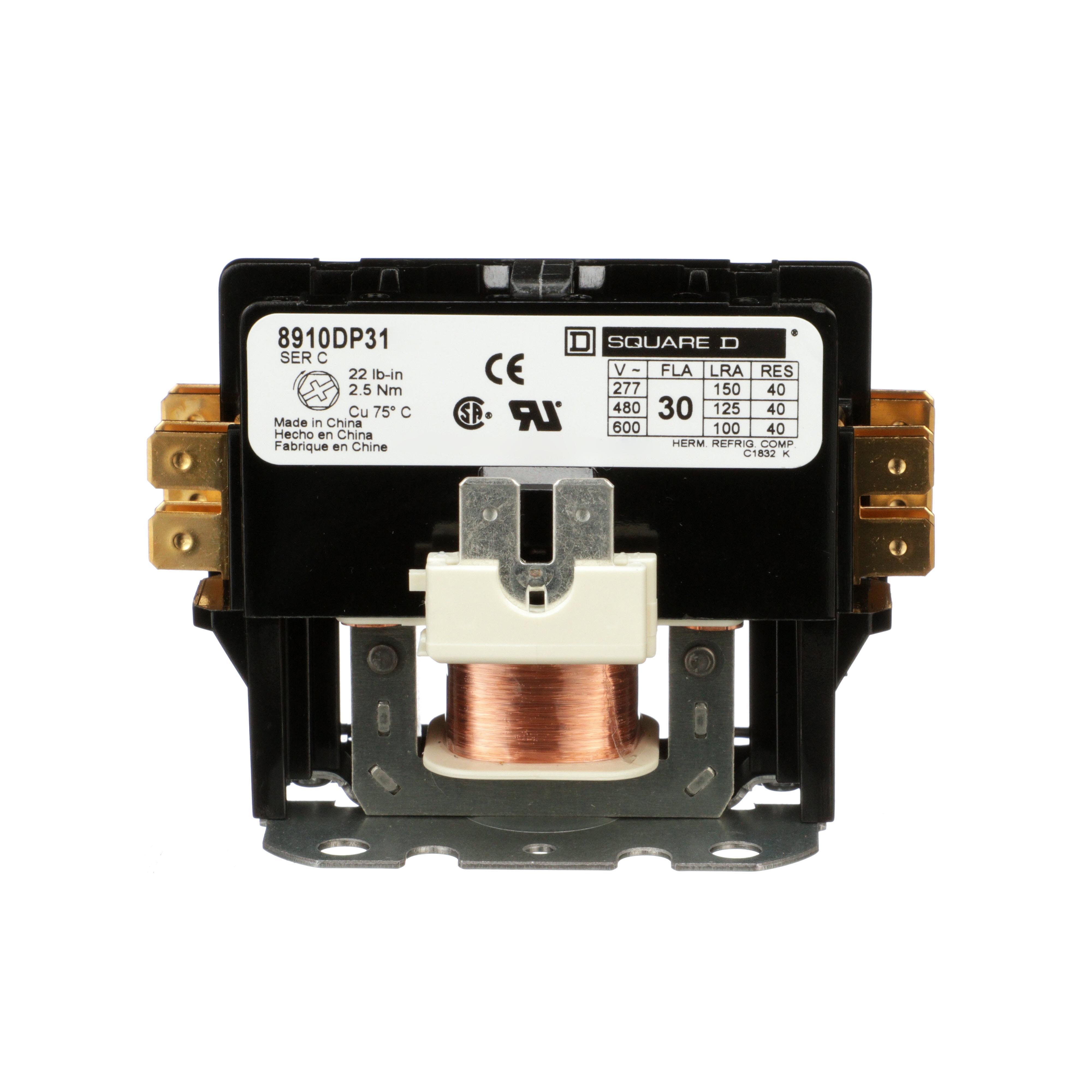

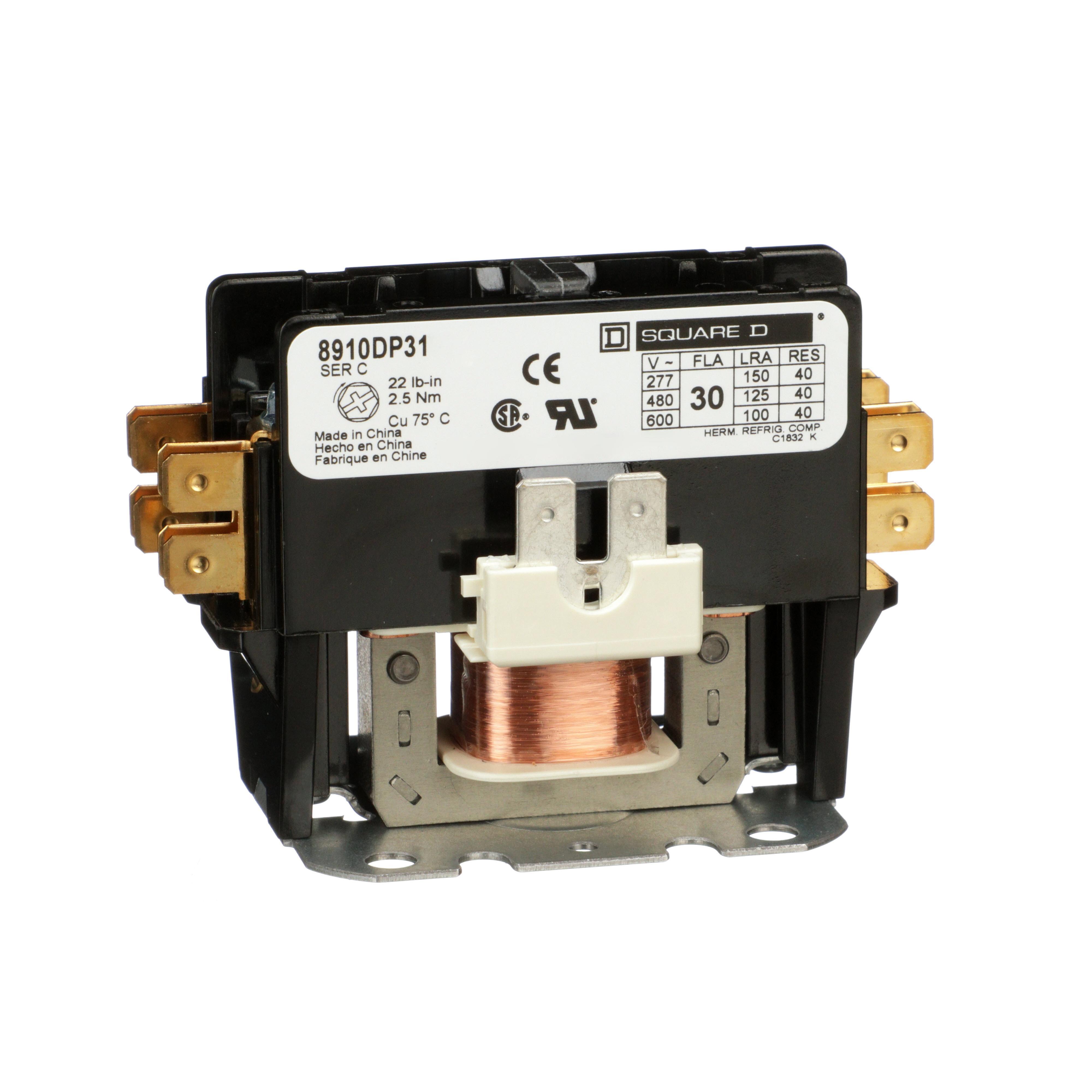

Square D™ 8910DP31V02 8910 1 Pole Definite Purpose Contactor, 110/120 V AC V Coil, 30 A, 1NO Contact, 1 Poles
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This one pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.29 inches and 2.39 tall. These contactors are UL Listed and CSA Certified.
-
BrandSquare D™
-
UPC785901909378
-
Manufacturer Part Number8910DP31V02
-
CountryUSA|Canada
-
Terminal TypeQuick-Connect
-
Maximum Load Current30 A
-
Frequency Rating50/60 Hz
-
Coil Power Rating2 hp at 115 VAC/3 hp at 230 VAC
-
Coil Voltage110/120 V AC
-
Type1-Phase Type DP
-
Connection TypeBinding Head Screw
-
Contact Configuration1NO
-
Mounting TypePanel
-
Contact Rating600 V AC
-
Series8910
-
Number of Poles1
-
Enclosure TypeOpen
- Electrical systems protection from overloads and short circuits
- Quick connect terminals and binder head screws for easy wiring
- Compact design and exclusive DIN mounting option
-
Alternative Part Number8084495
-
UNSPSC39121529
-
IDEA Index ID8084495
-
Package DescriptionEACH
-
Standards/ApprovalsBuy American Act Compliant|CE Certified|CSA Certified|ECCN EAR99|RoHS Compliant|UL Listed|PROP65: Cancer and Reproductive harm - www.P65warnings.ca.gov
-
Warranty18 months
-
RoHS
-
Catalog
-
Specification Sheet
