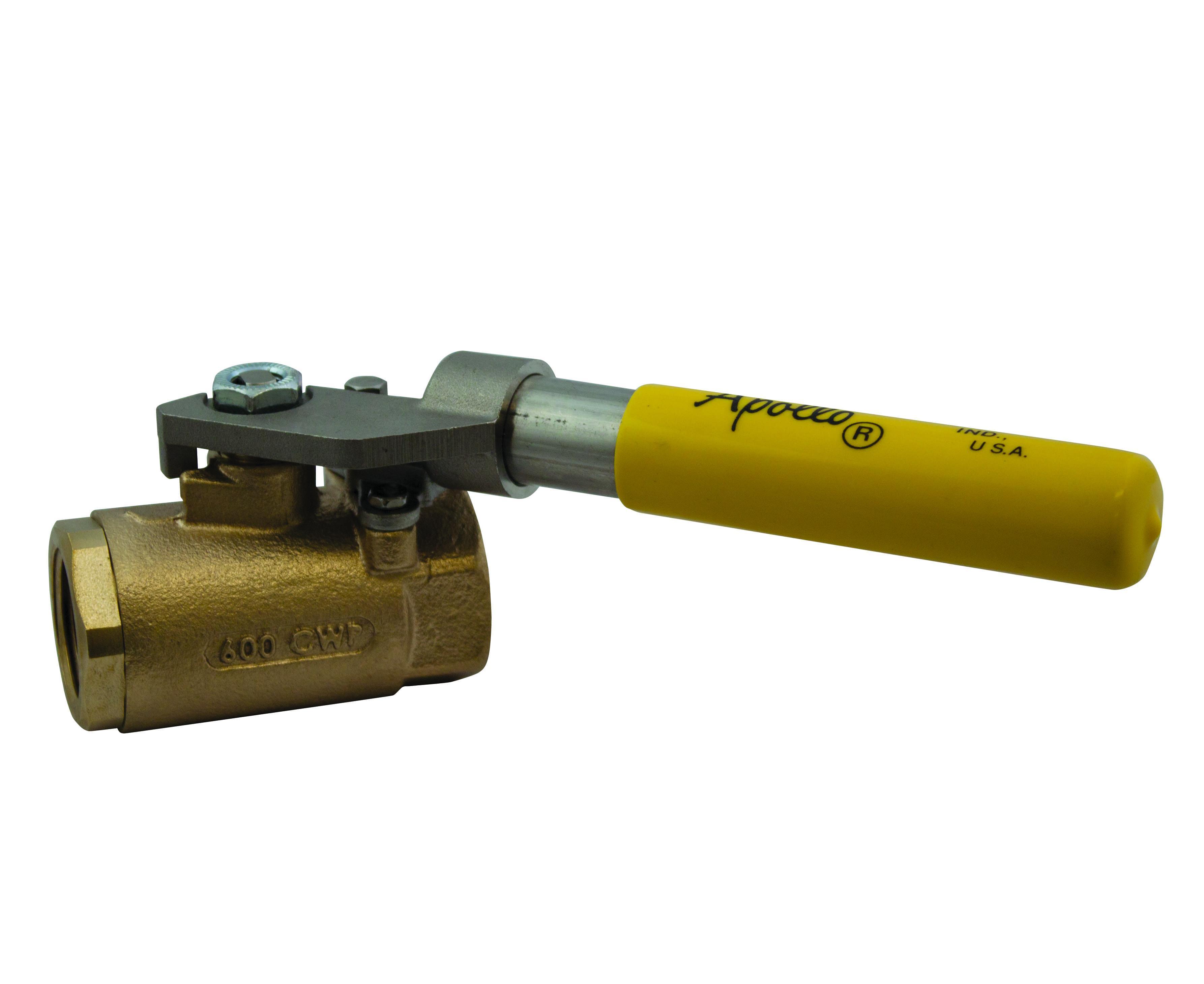

NIBCO 71-503-01 2-Piece Ball Valve, 1/4 in Nominal, FNPT End Style, Bronze Body, Standard Port, MPTFE Softgoods, Domestic
Apollo™ 7150101 71-500 2-Piece Ball Valve, 1/4 in Nominal, FNPT End Style, Bronze Body, Standard Port, MPTFE Softgoods, Domestic
-
BrandApollo™
-
UPC670750679636
-
Manufacturer Part Number7150101
-
CountryUSA
-
Port TypeStandard
-
Pressure Rating600 psi CWP
-
Top to Inlet Center7 in
-
MediaGas/Water
-
Trim Material316 Stainless Steel/PTFE
-
Type2-Piece
-
Actuator TypeSpring Return Handle
-
Nominal Size1/4 in
-
Series71-500
-
Ball MaterialChrome Plated Brass
-
Inlet to Outlet Length2-1/4 in
-
Softgoods MaterialMPTFE
-
Domestic/ImportDomestic
-
Body MaterialBronze
-
Orifice Size0.43 in
-
End StyleFNPT
- All components of lever are stainless steel
- Operating torque is approximately three times standard valve torque
- Reinforced seat
- Blow-out proof stem design
- 150 psig saturated steam
- Vacuum service to 29 in Hg
- Cold non-shock body rating
- Spring return to close
| Competitor Name | Cross-Reference Number |
|---|---|
| Ferguson | A7150101 |
-
UNSPSC40141607
-
Package Description10/BX
-
Standards/ApprovalsASTM B584-C84400 Body|ASTM A276 316 Stem|ASTM B16 Ball/Retainer|MSS SP-110|PROP65: Cancer and Reproductive Harm
-
Warranty5 Years
-
Specification Sheet
