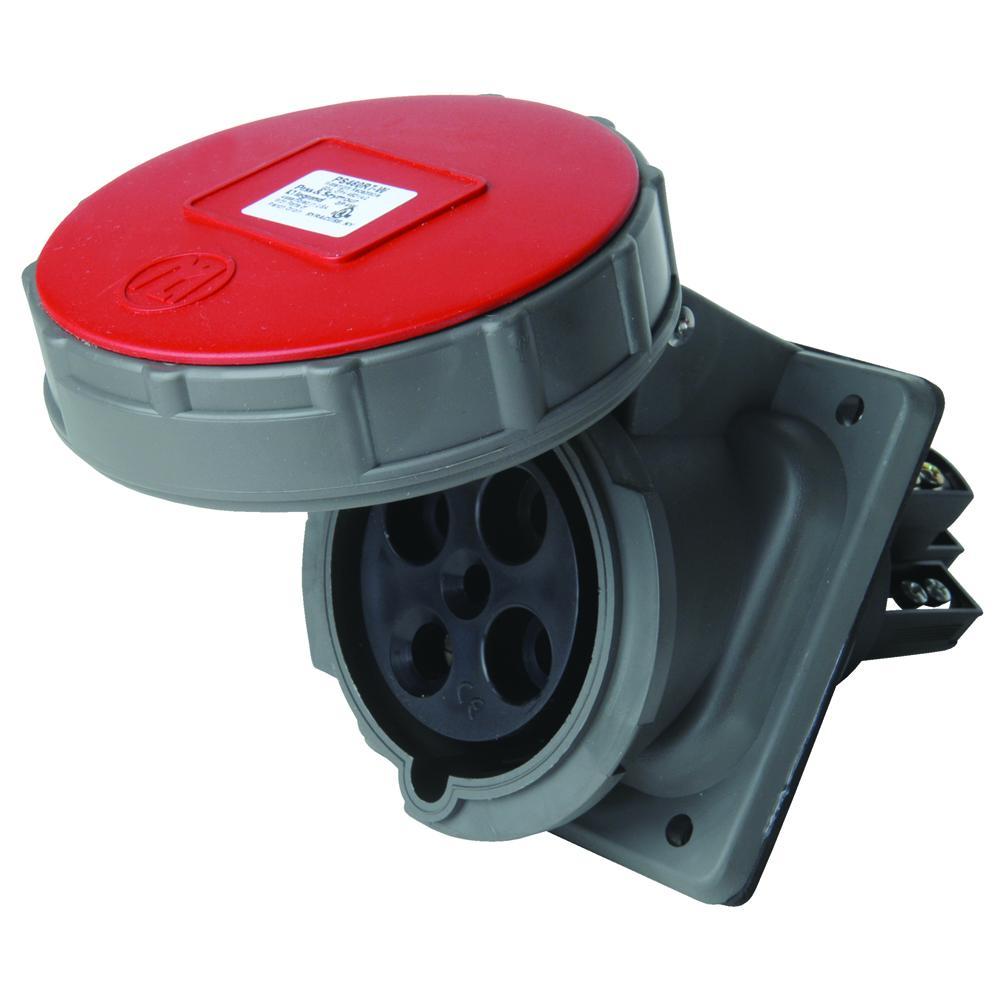

Pass & Seymour® PS460R7-W 3-Phase Watertight Pin and Sleeve Receptacle, 480 V AC, 60 A, 3 Poles, 4 Wires, Black
Pass & Seymour® PS460R7-W 3-Phase Watertight Pin and Sleeve Receptacle, 480 VAC, 60 A, 3 Poles, 4 Wires, Black
-
BrandPass & Seymour®
-
UPC785007460476
-
Manufacturer Part NumberPS460R7W
-
CountryUSA
-
Temperature Rating-50 to 80 deg C
-
Terminal TypeScrew
-
MaterialThermoplastic/Nylon
-
Frequency Rating60/400 Hz
-
ColorBlack
-
Type3-Phase Watertight
-
GradeCommercial
-
NEMA RatingNEMA 4X
-
Voltage Rating480 V AC
-
Amperage Rating60 A
-
Number of Poles3
-
Dimensions7.3 in
-
Number of Wires4
-
EnclosureIP67
- Arrives ready to wire, with cord grip open and cable-ready
- Terminal screws come backed out and ready to wire
- Front and back body require no disassembly prior to assembly
- Nylon construction for highimpact and corrosion resistance
- Nickel-plated brass pins provide extracorrosion resistance without sacrificing electrical conductivity
- Locking ring with an integral neoprene gasket provides watertight seal when plug and connector/receptacle are mated
- Natural-rubber grommets provide watertight protection at cable entry
- Combination-head screws for added convenience and quick installation
- Revolutionary, hinged cord grip for durable performance and ease of installation
-
Alternative Part Number8694215
-
UNSPSC39121404
-
IDEA Index ID8694215
-
Package DescriptionEACH
-
Standards/ApprovalsARRA Compliant|Buy American Act Compliant|UL Listed
-
Warranty1 Year
-
