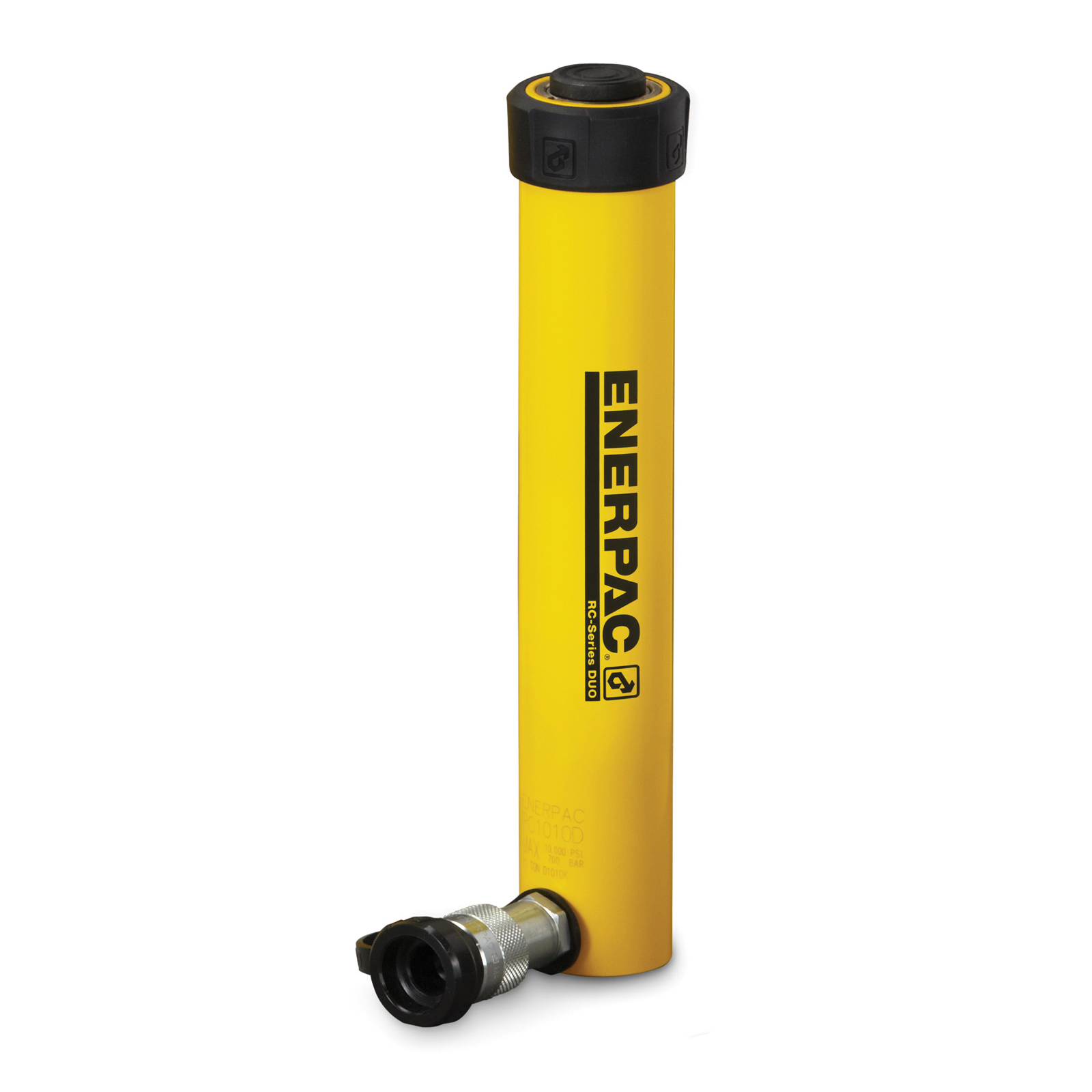

Enerpac® RC756 General Purpose Single Acting Spring Return Solid Plunger Hydraulic Cylinder, 79.5 ton Capacity, 4-1/2 in Bore, 6.13 in L Stroke, 11-1/4 in Retract, 2.81 in Dia Rod, 10000 psi Pressure
Enerpac® RC756 General Purpose Single Acting Spring Return Solid Plunger Hydraulic Cylinder, 79.5 ton Capacity, 4-1/2 in Bore, 6.13 in L Stroke, 11-1/4 in Retract, 2.81 in Dia Rod, 10000 psi Pressure
-
BrandEnerpac®
-
UPC662005301829
-
Manufacturer Part NumberRC756
-
CountryUSA
-
Capacity79.5 ton
-
FinishBaked Enamel
-
Port Size3/8-18 NPTF
-
Pressure Rating10000 psi
-
TypeGeneral Purpose Single Acting Spring Return Solid Plunger
-
Retract11-1/4 in
-
Rod Diameter2.81 in
-
Mounting TypeBase
-
SeriesRC Series
-
Housing MaterialSteel
-
Dimensions5.75 in OD x 17.38 in H
-
Stroke Length6.13 in
-
Bore Size4-1/2 in
- Unique GR2 bearing design, reduces wear, extending life
- Collar threads enable easy fixturing
- Designed for use in all positions
- High strength alloy steel for durability
- Redesigned cylinder thread protector for ease of use
- Heavy duty, pretension spring improves retraction speed
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending
-
UNSPSC27121602
-
IncludesCR-400 Coupler and Dust Cap
-
WarrantyLimited
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
