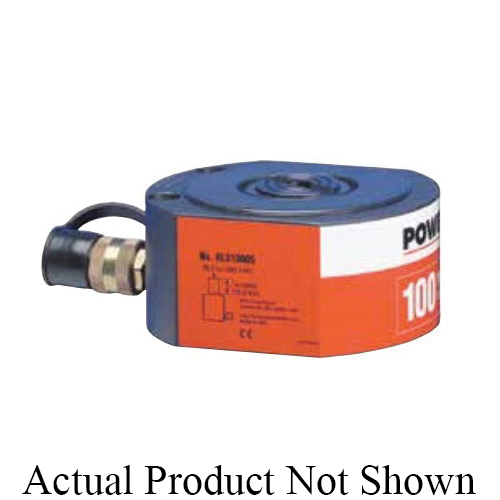

Power Team 50-TON PANCAKE HYD/CYLINDER RAM PTD RLS-500-S
Power TeamĀ® RLS500S Heavy Duty Low Profile Welded Hydraulic Cylinder, 50 ton, 3-1/2 in Bore, 5/8 in L Stroke, 2-5/8 in H Retract, 1-3/4 in Dia Rod, 10394 psi
-
BrandPower TeamĀ®
-
Manufacturer Part NumberRLS500S
-
CountryUSA|Canada
-
Capacity50 ton
-
Port Size27/32 in
-
Pressure Rating10394 psi
-
TypeHeavy Duty Low Profile Welded
-
Retract2-5/8 in H
-
Rod Diameter1-3/4 in
-
SeriesRLS
-
Dimensions4-1/2 x 5-1/2 in OD
-
Stroke Length5/8 in
-
Bore Size3-1/2 in
- Low height starting at 1.63 in to 4.00 in
- Cylinder body, piston and gland nut are
- Standard domed piston rod (5-30 tons) or swivel cap (50-150 tons) minimize effects of off-center loading
- Unique heavy-duty spring
- Coupler is angled upward for extra clearance
- Provides fast piston return on all cylinders, except rls50
-
UNSPSC27121602
-
Standards/ApprovalsASME B30.1|CE Certified
-
