Power Team® RSS502 RSS Heavy Duty Shorty Welded Hydraulic Cylinder, 50 ton Capacity, 3-1/2 in Bore, 2-3/8 in L Stroke, 5 in H Retract, 3-1/8 in Dia Rod, 10393 psi Pressure
Power Team® RSS502 RSS Heavy Duty Shorty Welded Hydraulic Cylinder, 50 ton Capacity, 3-1/2 in Bore, 2-3/8 in L Stroke, 5 in H Retract, 3-1/8 in Dia Rod, 10393 psi Pressure
-
BrandPower Team®
-
UPC662536532617
-
Manufacturer Part NumberRSS502
-
CountryUSA
-
Capacity50 ton
-
Port Size3/4 in
-
Pressure Rating10393 psi
-
TypeHeavy Duty Shorty Welded
-
Retract5 in H
-
Rod Diameter3-1/8 in
-
SeriesRSS
-
Dimensions4-7/8 in OD
-
Stroke Length2-3/8 in
-
Bore Size3-1/2 in
- Power-tech nitro-carburization surface treatment inhibits corrosion and provides exceptional durability for the rod and piston
- Heavy-duty return spring (except for double-acting models) provides fast piston return and low collapsed height
- Coupler on 10-50 ton models is angled upward 5 for added clearance
- Grooved piston top keeps load from sliding
- Cylinders can be Dead-ended at full capacity

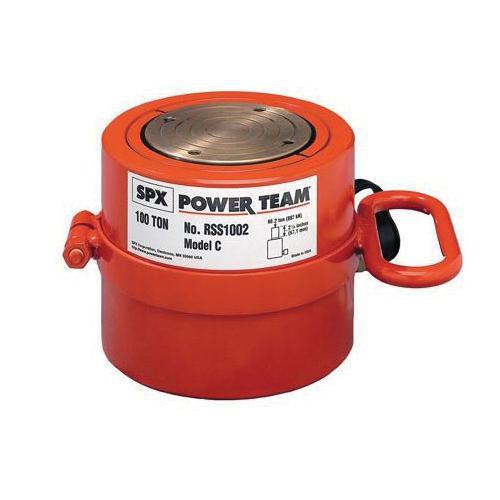

- Removable carrying handles on 100 and 250 ton models
-
Alternative Part NumberRSS502K
-
UNSPSC27121602
-
Standards/ApprovalsASME B30.1|CE Certified
-
Catalog
-
Specification Sheet
-
Instruction/Installation Manual
