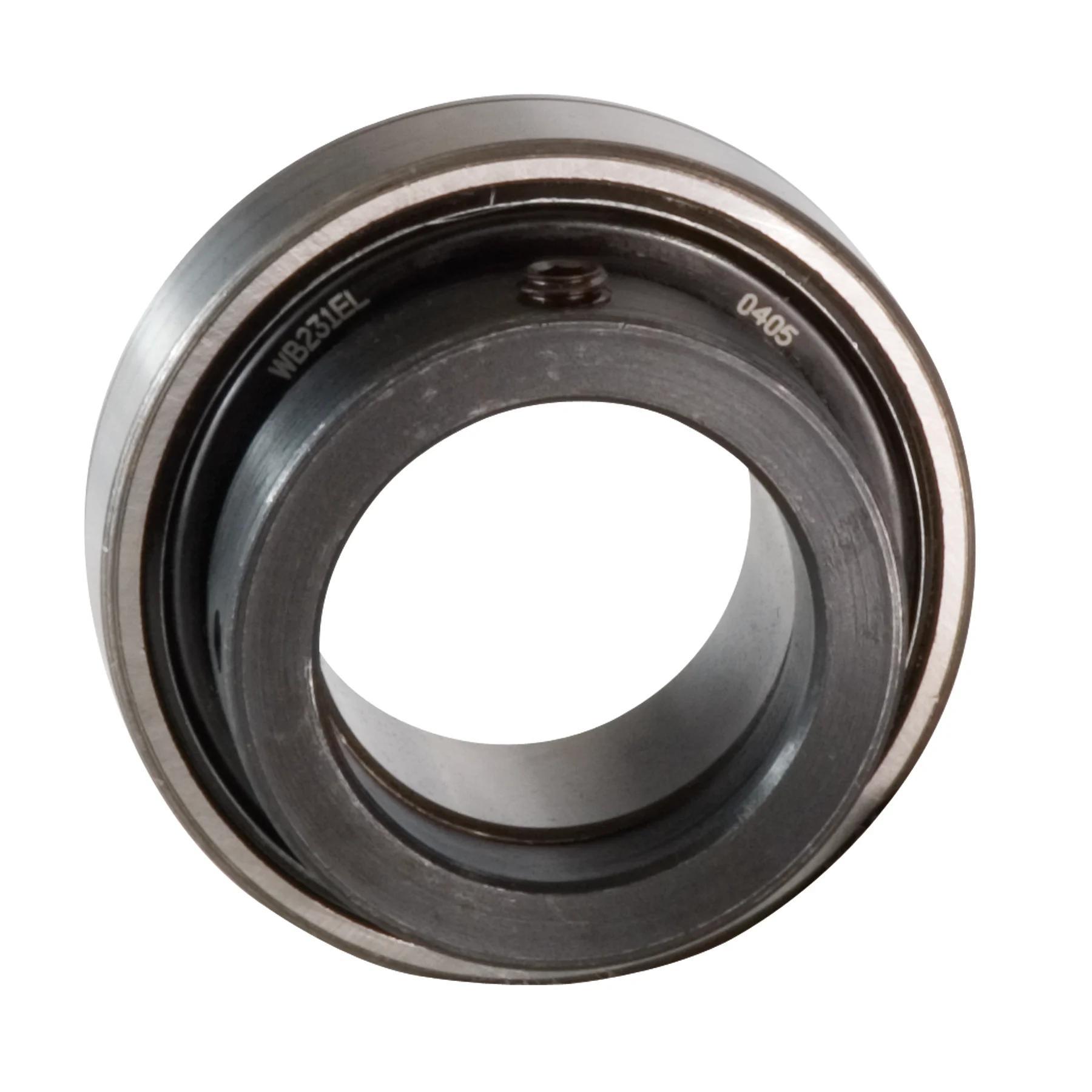

Link-BeltĀ® 10415869 200 Intermediate Duty Unmounted Ball Bearing Unit With Collar and Setscrews, 1-3/8 in Dia Bore, 2.8346 in OD, 1-17/32 in W, 5810 lb Dynamic/3440 lb Static Load
200 series intermediate duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain and belt drives, fans and blowers, power transmission and many other applications.
-
BrandLink-BeltĀ®
-
UPC662327150754
-
Manufacturer Part Number10415869
-
CountryUSA|Canada
-
Load Capacity5810 lb Dynamic/3440 lb Static
-
Temperature Rating225 deg F
-
Maximum Speed4800 rpm
-
TypeIntermediate Duty Unmounted
-
Width1-17/32 in
-
Series200
-
Outside Diameter2.8346 in
-
Bore Diameter1-3/8 in
- 1 3/8 in Unmounted Ball Bearing, Intermediate Duty, Eccentric Cam Locking Collar, Single Lip Contact Seal, Non-relubricatable, Cylindrical OD
- Alignable precision deep groove ball bearing manufactured of quality alloy bearing steel provides high capacity and long life
- Extended inner ring
- Eccentric cam locking collar
- Cylindrical outside diameter of outer ring
- Non-relubricatable bearing
- Single lip contact seal
- 207 size code
-
Alternative Part NumberWB222EL
-
UNSPSC31171500
-
Standards/ApprovalsANSI|ABMA STD 9
-
Warranty1 Year
-
Package DescriptionEACH
-
Instruction/Installation Manual
-
Catalog
