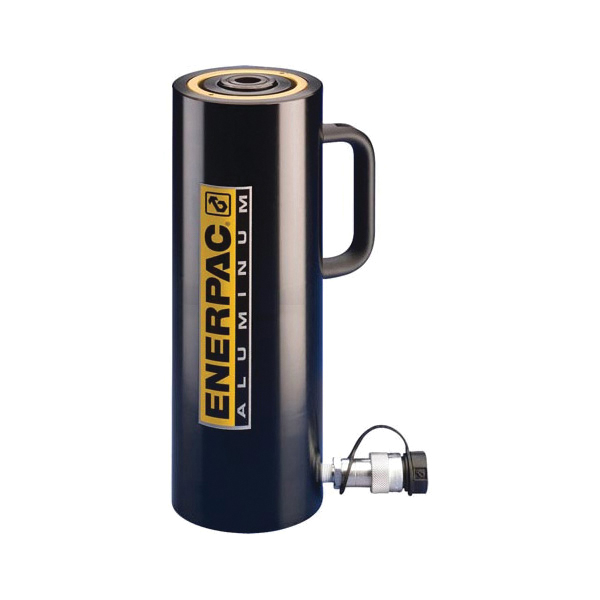

Enerpac® RAC1002 Single Acting Solid Plunger Spring Return Hydraulic Cylinder, 110.9 ton Advance Capacity, 5.32 in Bore, 1.97 in L Stroke, 8.71 in Retract, 3.7 in Dia Rod, 10000 psi Pressure
Enerpac® RAC1002 Single Acting Solid Plunger Spring Return Hydraulic Cylinder, 110.9 ton Advance Capacity, 5.32 in Bore, 1.97 in L Stroke, 8.71 in Retract, 3.7 in Dia Rod, 10000 psi Pressure
-
BrandEnerpac®
-
UPC662005159864
-
Manufacturer Part NumberRAC1002
-
CountryUSA
-
Capacity110.9 ton Advance
-
Port Size3/8-18 NPTF
-
Pressure Rating10000 psi
-
TypeSingle Acting Solid Plunger Spring Return
-
Retract8.71 in
-
Rod Diameter3.7 in
-
Mounting TypeBase
-
SeriesRAC Series
-
Housing MaterialAluminum
-
Dimensions7.09 in OD x 10.68 in H
-
Stroke Length1.97 in
-
Bore Size5.32 in
- Composite bearings prevent metal to metal contact, increasing cylinder life and resistance to side loads of up to 10%
- Hard coat finish on all surfaces resists damage and extends cylinder life
- For protection against load induced damage, a saddle is standard on all models and a steel baseplate is standard on models 20 ton and above
- Integral stop ring prevents plunger over travel and is capable of withstanding the full cylinder capacity
- High strength return spring for rapid cylinder retraction
-
UNSPSC27121602
-
Standards/ApprovalsASME B-30.1|EAR99|ETC Certified
-
WarrantyLimited
-
Specification Sheet
-
Instruction/Installation Manual
-
Line Drawing
-
Warranty Information
