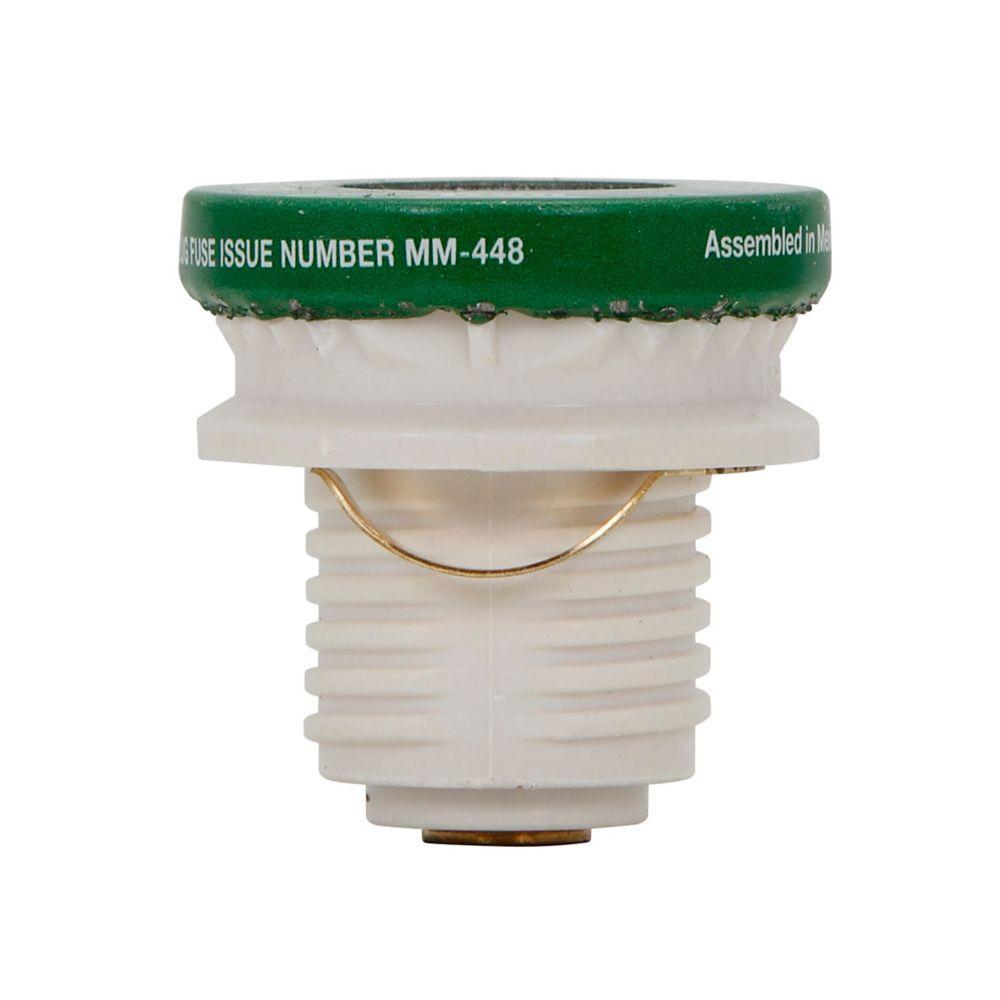

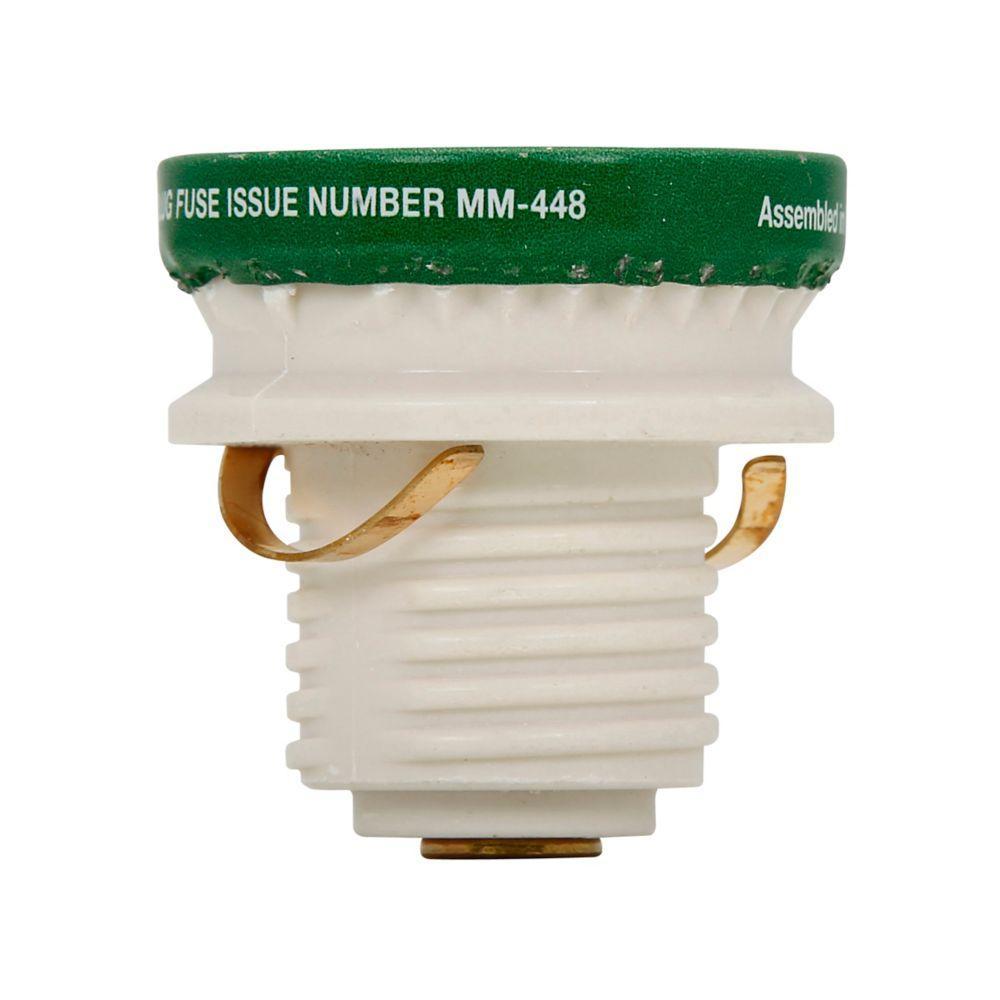

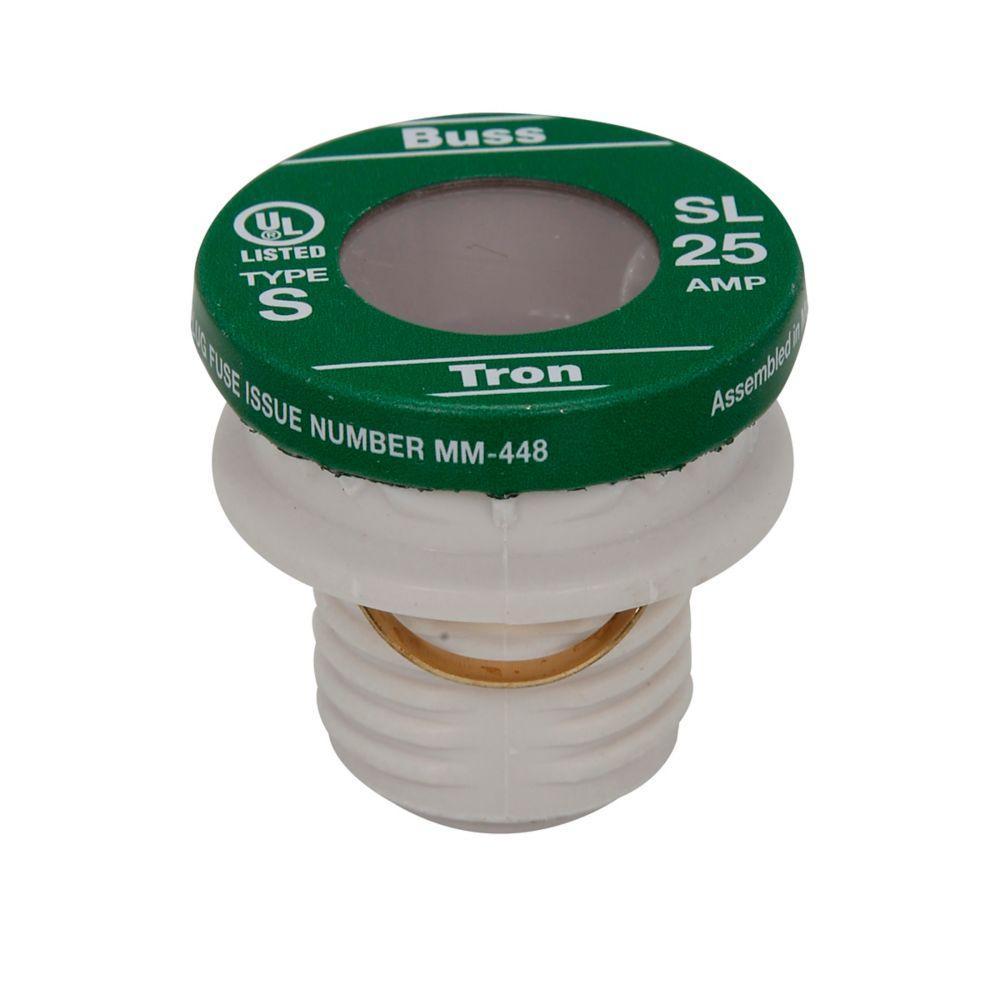

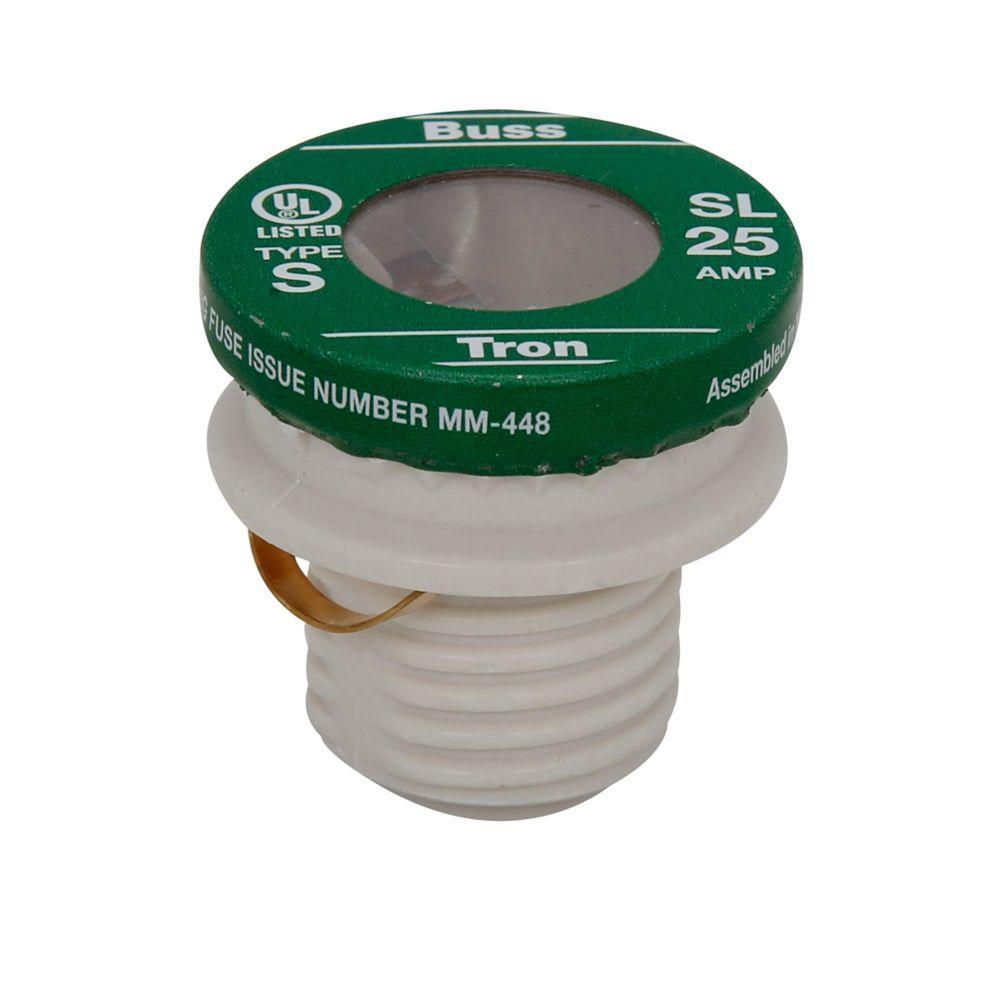

Bussmann SL-25PK4 Rejection Base Time Delay Plug Fuse, 25 A, 125 V AC, 10 kA Interrupt, Class: SL
Bussmann SL-25PK4 Rejection Base Time Delay Plug Fuse, 25 A, 125 VAC, 10 kA Interrupt, Class: SL
-
BrandBussmann
-
UPC051712418324
-
Manufacturer Part NumberSL-25PK4
-
CountryUSA
-
ClassSL
-
TypeRejection Base Time Delay
-
Mounting TypeThreaded
-
Voltage Rating125 V AC
-
Amperage Rating25 A
-
Interrupt Rating10 kA
-
Terminal TypeStud
-
Rejection/Non-RejectionRejection
-
SeriesSL Series
-
Indicating/Non-IndicatingNon-Indicating
-
Short Circuit Current Rating10 kA
-
Body Size1-1/4 in L x 1-1/4 in W x 1-1/4 in H
-
Body TypeRound
-
ElementDual
- SL fuses for residential motor circuits in kitchens, workshops, garages and utility rooms
- Medium duty time delay rejection base fuse
- No-interchangeability prevents installing a higher amp fuse than the circuit was designed for
- Has ability to withstand typical motor starting surges
- Use in residential or light duty motor circuits
- These fuses thread into SA adaptors
- Use in residential or light duty motor circuits
- These fuses thread into SA adapters
| Cross-Reference Number |
|---|
| 511805 |
-
Alternative Part Number15972778
-
UNSPSC39121605
-
IDEA Index ID15972778
-
Package DescriptionEACH
-
Standards/ApprovalsContact factory
-
Specification Sheet
