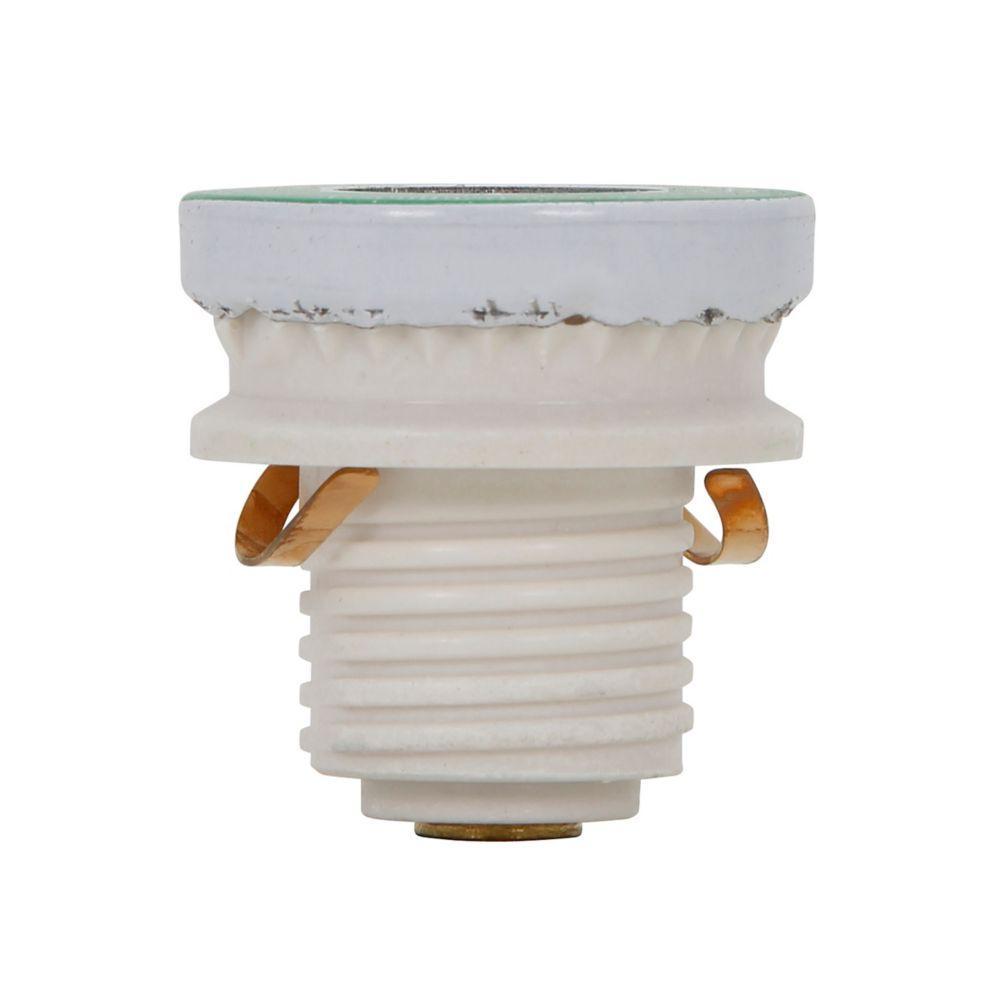

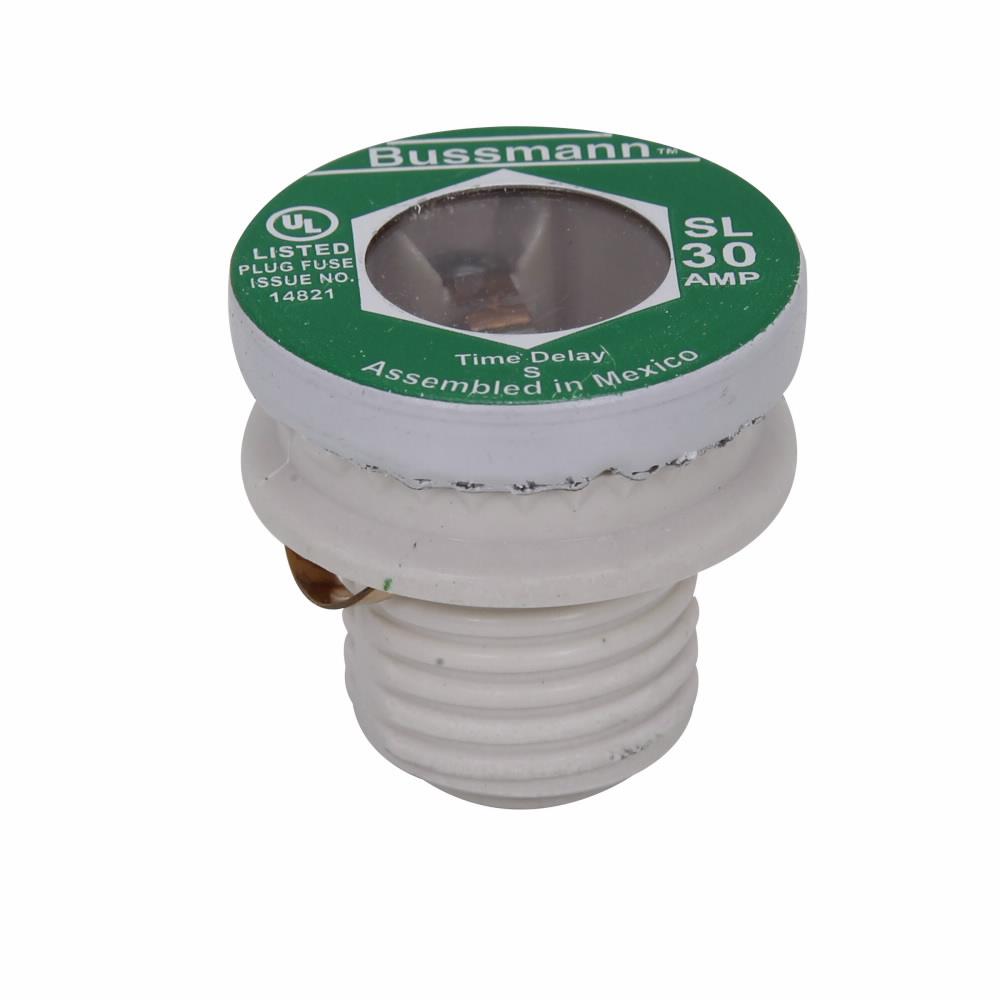

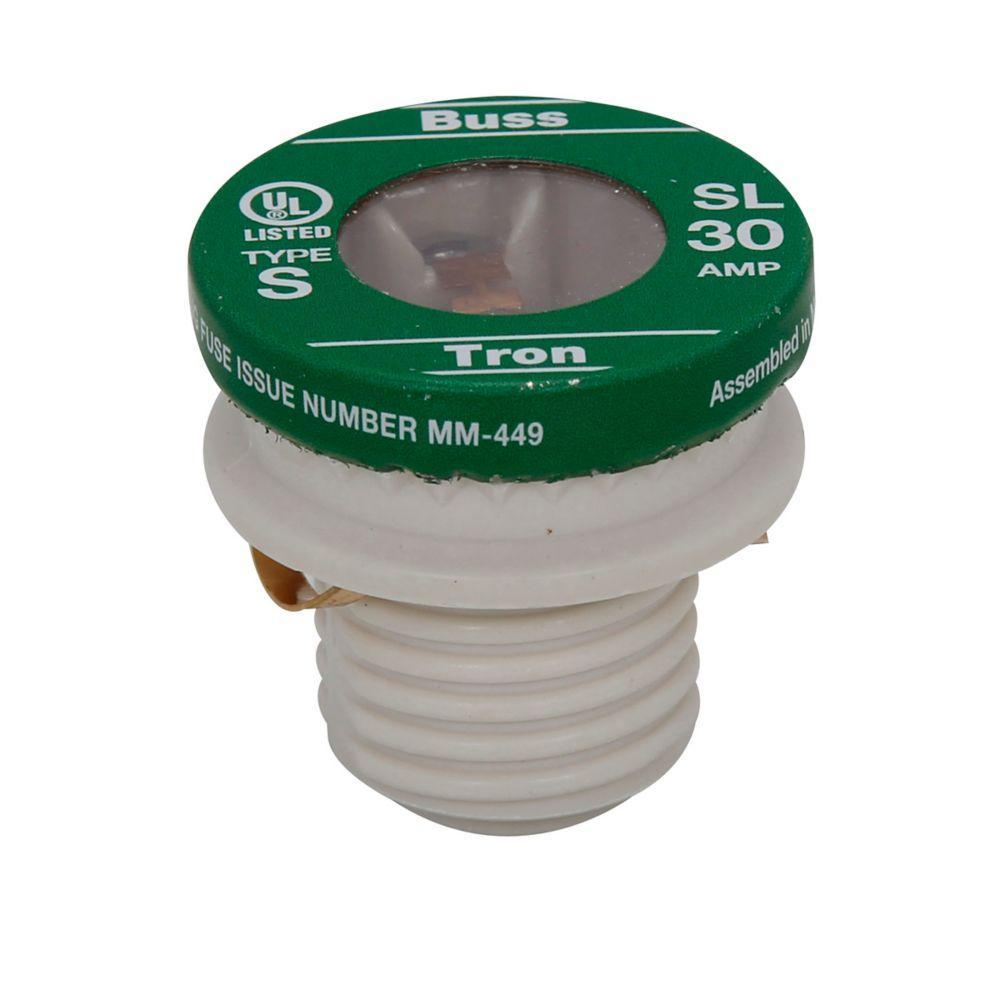

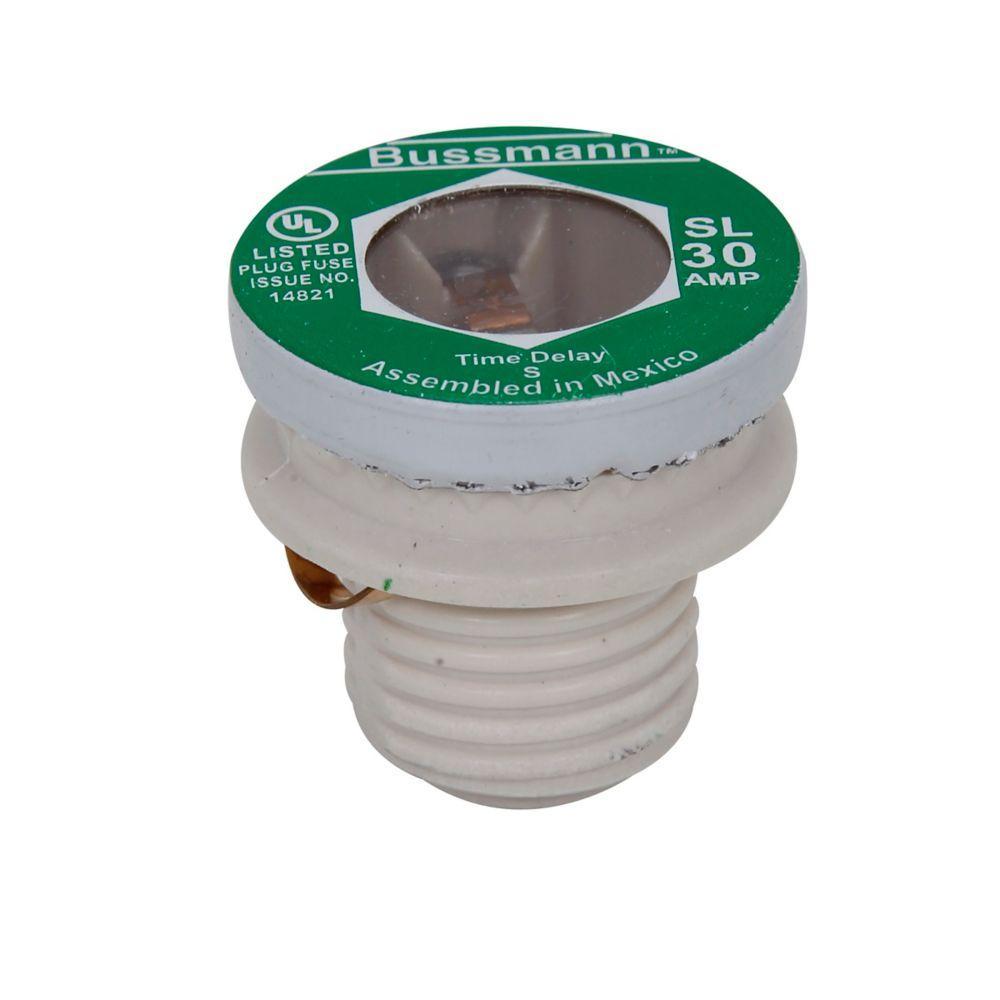

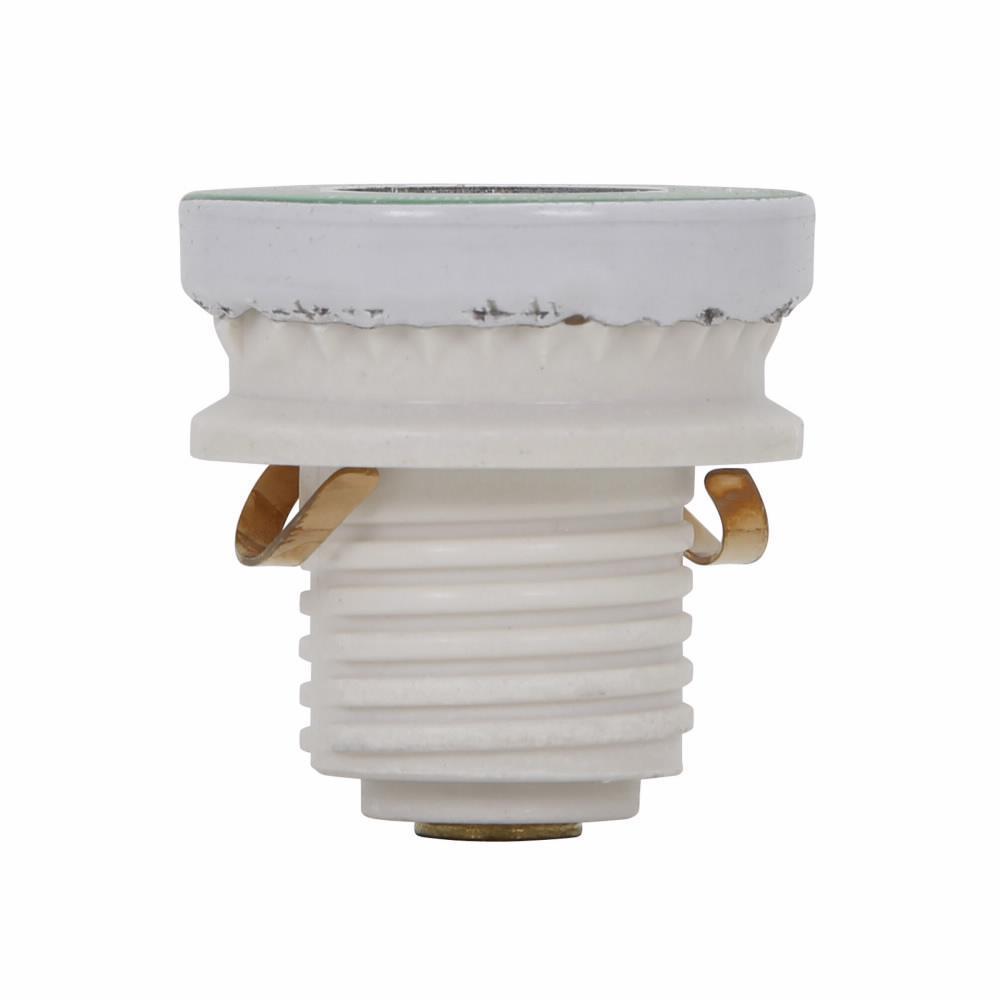

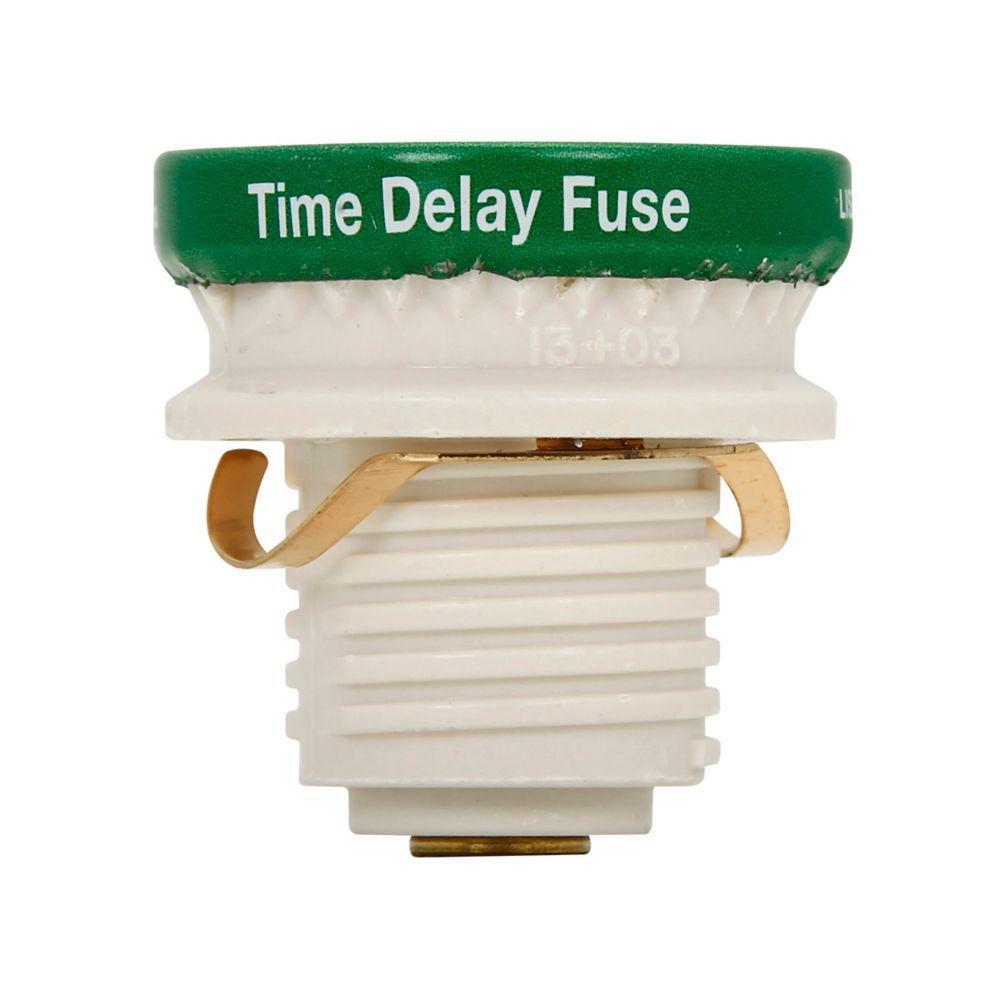

Bussmann SL-30PK4 Rejection Base Time Delay Plug Fuse, 30 A, 125 V AC, 10 kA Interrupt, Class: SL
These fuses thread into fuse receptacles. Two types of threaded fuses are available Edison base (brass threads) and rejection base (porcelain threads). The two are not interchangeable. Two categories of plug fuses are available. The medium duty fuses (TL or SL) have a time delay feature for use on motor circuits. The heavy duty fuses (T or S) are industrial strength products featuring the exclusive Cooper Bussmann dual element construction. This spring loaded design provides superior short circuit and overload protection. The T or S fuses have more time delay than the medium duty fuses in order to better protect motors and critical residential circuits. Plug fuses are rated for a maximum of 125 VAC. TL and SL four pack (PK4) versions priced per box. Plug fuses are often used in residential and industrial branch circuit and motor protection. Fuses are used to protect furnace blower motors, pumps, power tools, garage door openers, etc. Motor protection fuses are usually used in conjunction with branch circuit protection. The fuse is often located in a box cover unit. Plug fuses provide a compact and inexpensive method to prevent damage to electrical motors. They help reduce downtime and lower maintenance costs by opening the circuit when a dangerous overload is present. When used for residential branch circuit protection, fuses are typically located in the main fuse panel.
-
BrandBussmann
-
UPC051712418331
-
Manufacturer Part NumberSL-30PK4
-
CountryUSA
-
ClassSL
-
TypeRejection Base Time Delay
-
Mounting TypeThreaded
-
Voltage Rating125 V AC
-
Amperage Rating30 A
-
Interrupt Rating10 kA
-
Body Size1-1/4 in L x 1-1/4 in W x 1-1/4 in H
-
Terminal TypeStud
-
MaterialPlastic
-
Rejection/Non-RejectionRejection
-
SeriesSL Series
-
Indicating/Non-IndicatingNon-Indicating
-
Body TypeRound
-
ElementSingle
- SL fuses for residential motor circuits in kitchens, workshops, garages and utility rooms
- Medium duty time delay rejection base fuse
- No-interchangeability prevents installing a higher amp fuse than the circuit was designed for
- Has ability to withstand typical motor starting surges
- Use in residential or light duty motor circuits
- These fuses thread into SA adaptors
| Cross-Reference Number |
|---|
| 511814 |
-
Alternative Part Number15972743
-
UNSPSC39121605
-
IDEA Index ID15972743
-
Package DescriptionEACH
-
Standards/ApprovalsContact factory
-
