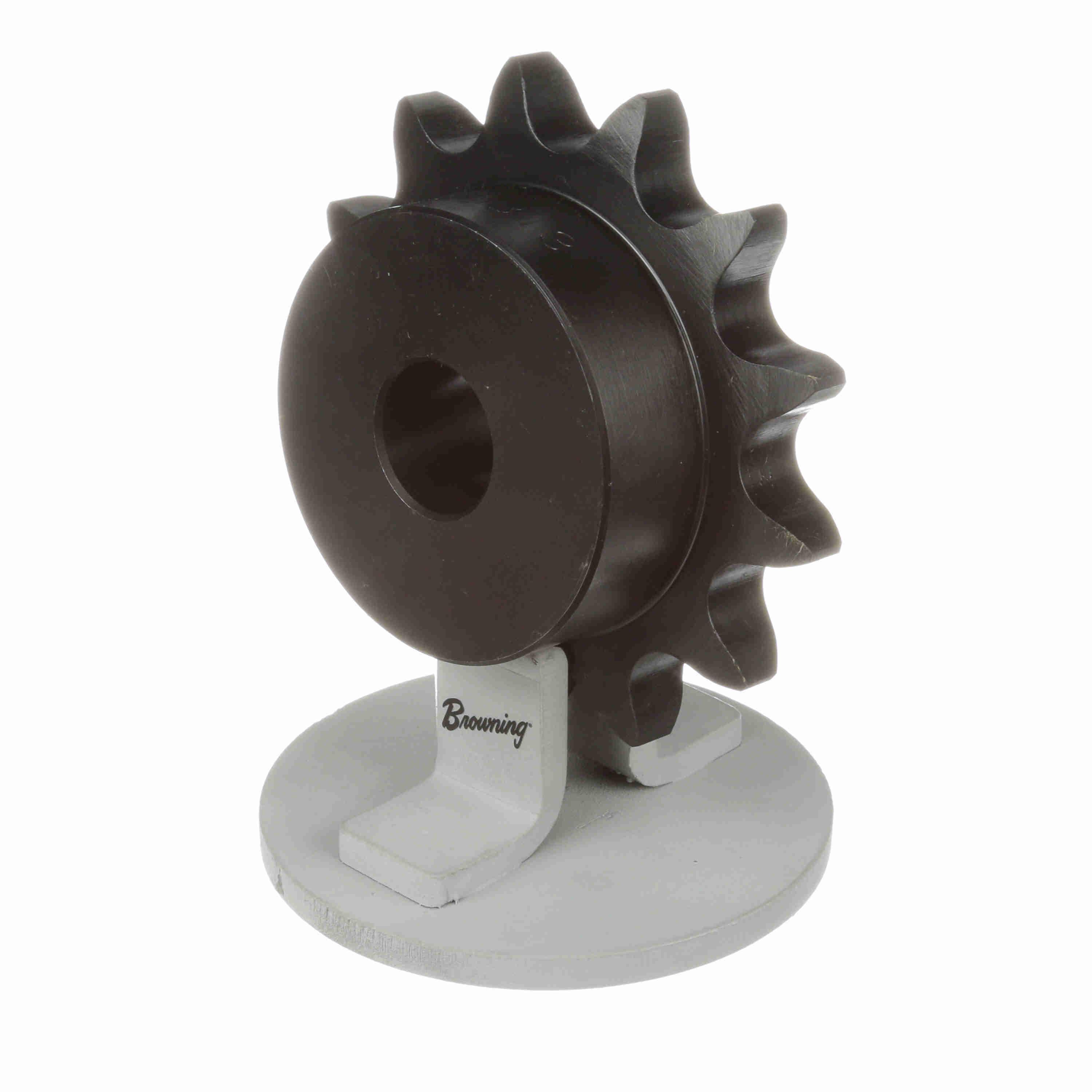

Browning 13-TOOTH MPB #80-1 CHAIN SPROCKETS BRW 80-B-13
Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.
-
BrandBrowning®
-
UPC662289200276
-
Manufacturer Part Number1123579
-
CountryUSA
-
Pitch1 in
-
Pitch Diameter4.179 in
-
MaterialSteel
-
Chain Size#80
-
TypeSingle Strand Minimum Bore Type B
-
Hub Diameter3 in
-
Number of Teeth13
-
Keyway Size1/2 x 1/4 in
-
Outside Diameter4.66 in
-
Length Through Bore1-1/2 in
-
Bore Diameter2 in
- Larger hub diameter allows larger bore capacity
- Lasts longer than sprockets made from low carbon steel
- Maximum bore shown will accommodate standard keyways and setscrews over keyway
- Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway
- Hub projection on one side
- High quality, high carbon steel
- Hub is recessed for chain clearance
- For use with 1 in pitch ANSI chain
-
Alternative Part Number80B13
-
UNSPSC31171900
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
Instruction/Installation Manual
-
Specification Sheet
