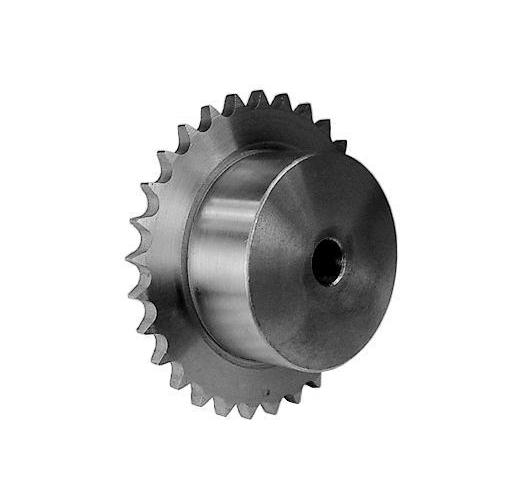

PTI 10B-31B Single Strand Hub Type B Roller Chain Sprocket, 20 mm Dia Bore, 163.9 mm OD, #10B-1 Chain, 31 Teeth, 15.875 mm Pitch, C45 Steel
Hub type metric sprockets are available with a minimum plain bore (pilot bore) and some stock finished bore sizes. Any shaft size is possible with our custom bore and keyway capability. Sprockets with hubs are typically fitted to the shaft as a clearance fit. They are held in place with two set screws and a keyway. Clearance fits are popular for light loads and slow speeds. A press fit (or shrink fit to the shaft) is usually preferred for higher speeds or heavier loads as they fit to the shaft more securely than a clearance fit sprocket. Depending on the clearance of the shaft fit, sprockets may work slightly on the shaft causing possible fretting or shaft wear. All sprockets are available with hardened teeth from stock or on request. Press fits usually require the sprocket to be heated for installation to expand the bore. As a heated sprocket cools, it shrinks, conforming to the shaft with a tight grip. A set screw can be used to secure the key. The TL taper bushed sprocket will function like the press fit sprocket and is generally easier to install.
-
BrandPTI
-
UPC800675010447
-
Manufacturer Part Number10B-31B
-
CountryUSA
-
Pitch15.875 mm
-
Pitch Diameter156.92 mm
-
MaterialC45 Steel
-
Chain Size#10B-1
-
TypeSingle Strand Hub Type B
-
Hub Diameter95 mm
-
Number of Teeth31
-
Outside Diameter163.9 mm
-
Length Through Bore35 mm
-
Bore Diameter20 mm
- 10.16 mm Dia roller sprocket
-
Alternative Part Number2101002848
-
UNSPSC31171901
-
Package DescriptionEACH
-
Standards/ApprovalsDIN 8187|PTDA and PTRA Standard
-
Specification Sheet
-
Catalog
