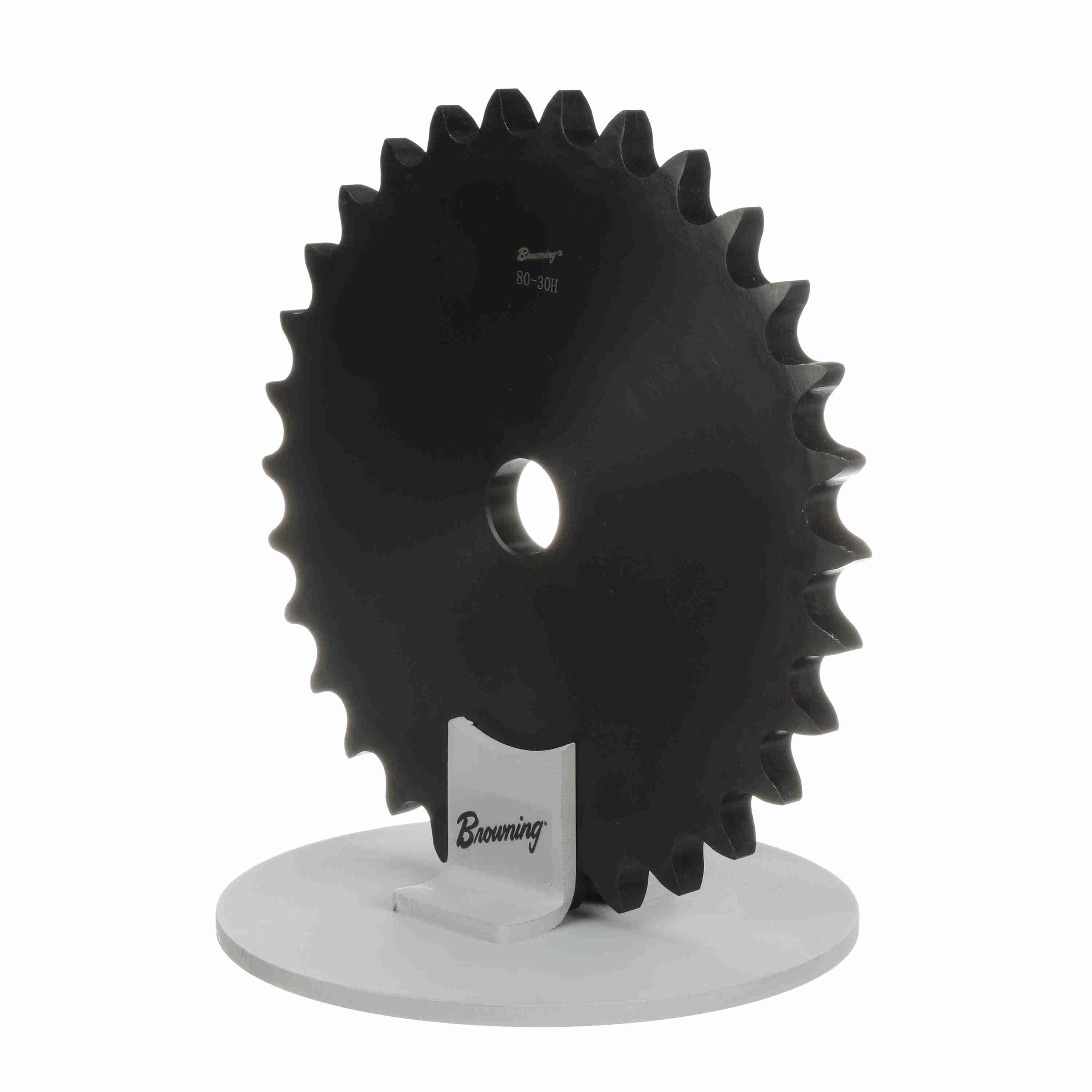

Browning 30-TOOTH MPB #80-1 CHAIN SPROCKETS BRW 80-A-30
Browning® 1109966 Single Strand Plate Type A Roller Chain Sprocket With Hardened Teeth, 1-3/16 in Dia Bore, 10.11 in OD, #80 Chain, 30 Teeth, 1 in Pitch, Steel
-
BrandBrowning®
-
UPC662289112470
-
Manufacturer Part Number1109966
-
CountryUSA
-
Pitch1 in
-
Pitch Diameter9.567 in
-
MaterialSteel
-
Chain Size#80
-
TypeSingle Strand Plate Type A
-
Number of Teeth30
-
Outside Diameter10.11 in
-
Length Through Bore0.575 in
-
Bore Diameter1-3/16 in
- Browning type A steel plate roller chain sprockets are offered in single pitch range of 25-200
-
Alternative Part Number80A30
-
UNSPSC31171901
-
Package DescriptionEACH
-
Warranty1 Year
-
