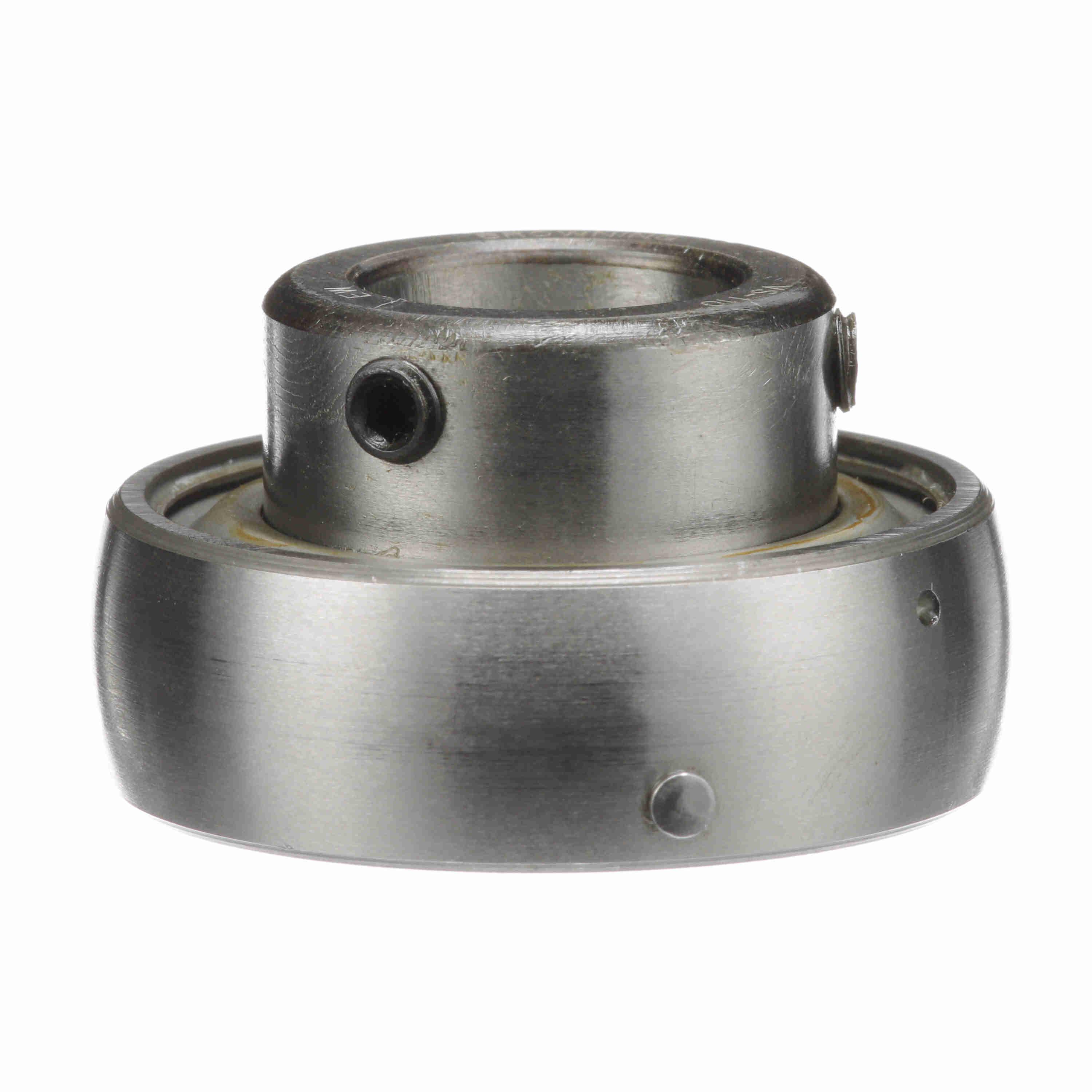

Browning® 767954 VS 100 Intermediate Duty Straight Bore Ball Bearing Insert, 5/8 in Dia Bore, 1.5748 in OD, 15/16 in W, 2108 lb Dynamic/1117 lb Static Load
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289526062
-
Manufacturer Part Number767954
-
CountryUSA
-
Load Capacity2108 lb Dynamic/1117 lb Static
-
Cage MaterialPlastic
-
Temperature Rating-20 to 200 deg F
-
FinishBlack Oxide Coated
-
Maximum Speed5000 rpm
-
Closure TypeDouble Seal
-
TypeIntermediate Duty Straight Bore
-
Seal MaterialNitrile Rubber
-
Width15/16 in
-
SeriesVS 100
-
Bearing MaterialSteel
-
Outside Diameter1.5748 in
-
Bore Diameter5/8 in
- Single setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
- Positive contact molded nitrile rubber single lip contact seal with an auxiliary flinger element standard
- An anti-rotation rivet prevents outer ring creep or rotation within the housing
- Zone hardened inner race
- Lithium complex NLGI #2 grease with an EP additive
- Spherical outer diameter
- Without Snap Ring
-
Alternative Part NumberVS-110
-
UNSPSC31171537
-
Package DescriptionEACH
-
Specification Sheet
-
Catalog
-
Instruction/Installation Manual
