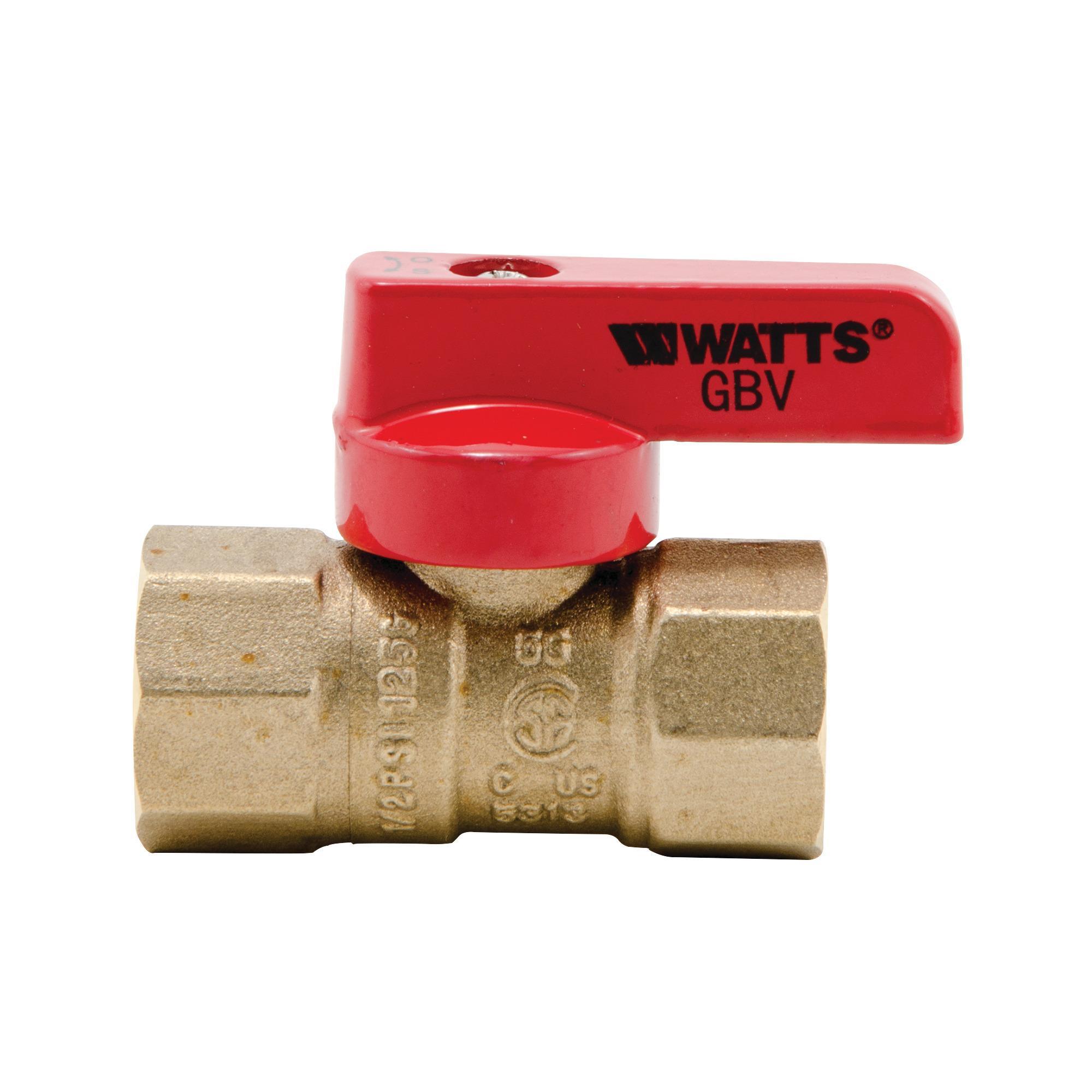

WATTS® 0545001 GBV 2-Piece Ball Valve, 3/8 in Nominal, NPT End Style, Brass Body, PTFE Softgoods
This 3/8 inch two-piece brass gas ball valve with female threaded end connections is used in residential and commercial applications for natural gas and LP gas on in-house and indoor piping systems. The valve features brass body construction, virgin PTFE seats and seals, brass end piece and plug, and zinc alloy handle. The temperature range is -20 to 125 degrees F (-29 to 52 degrees C). The maximum working pressure is 5 psi (34 kPa).
-
BrandWATTS®
-
Manufacturer Part Number0545001
-
CountryUSA
-
UPC098268074352
-
Temperature Rating-20 to 125 deg F
-
Port TypeStandard
-
Pressure Rating5 psi
-
Trim MaterialBrass Stem and PTFE Seat
-
Type2-Piece
-
Nominal Size3/8 in
-
Ball MaterialBrass
-
Dimensions1-3/4 in H x 1-13/16 in W
-
Softgoods MaterialPTFE
-
Body MaterialBrass
-
End StyleNPT
-
Top to Inlet Center1-3/8 in
-
MediaGas
-
SeriesGBV
-
Inlet to Outlet Length1-13/16 in
- NPT female connections and T- handle
- Aluminum alloy handle, plated steel handle nut
- PTFE packing sealing washer and NBR O-Ring
-
UNSPSC40141607
-
Package DescriptionEACH
-
Standards/ApprovalscCSAus Certified|MEA Approved|UL Listed|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Alternative Part NumberGBV 3/8
-
