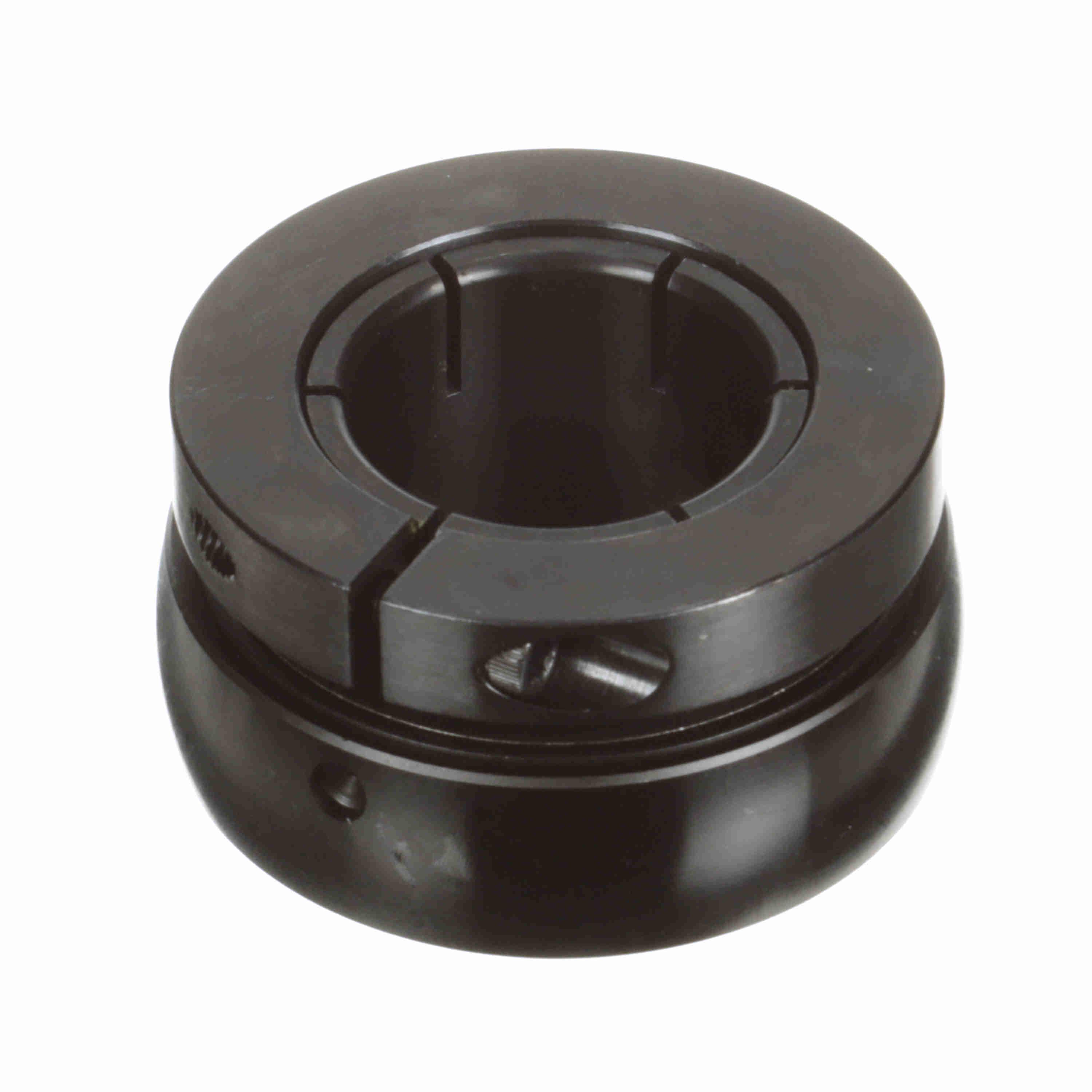

Sealmaster 2-3/16"-ID SPH/OD INSERT BEARINGS SEA 3-23-T
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.
-
BrandSealmaster®
-
UPC662461029336
-
Manufacturer Part Number705335
-
CountryUSA
-
Load Capacity11789 lb Dynamic/8150 lb Static
-
Cage MaterialBrass
-
Temperature Rating250 deg F
-
FinishBlack Oxide Coated
-
Maximum Speed4100 rpm
-
Closure TypeDouble Seal
-
TypeMedium Duty Non-Expansion Straight Bore
-
Seal MaterialFelt
-
Width2-5/8 in
-
Bearing MaterialSteel
-
Outside Diameter4.331 in
-
Bore Diameter2.188 in
- Skwezloc® collar locking
- Lithium complex NLGI #2 grease with an EP additive
- Zone hardened inner race
- Wide outer race
- Lock pin and dimple system
- Land riding retainer
- Metal nameplate riveted to the housing allows for easy identification even after years of operation
-
Alternative Part Number3-23T
-
UNSPSC31171504
-
Package DescriptionEACH
-
Standards/ApprovalsABMA Standard
-
