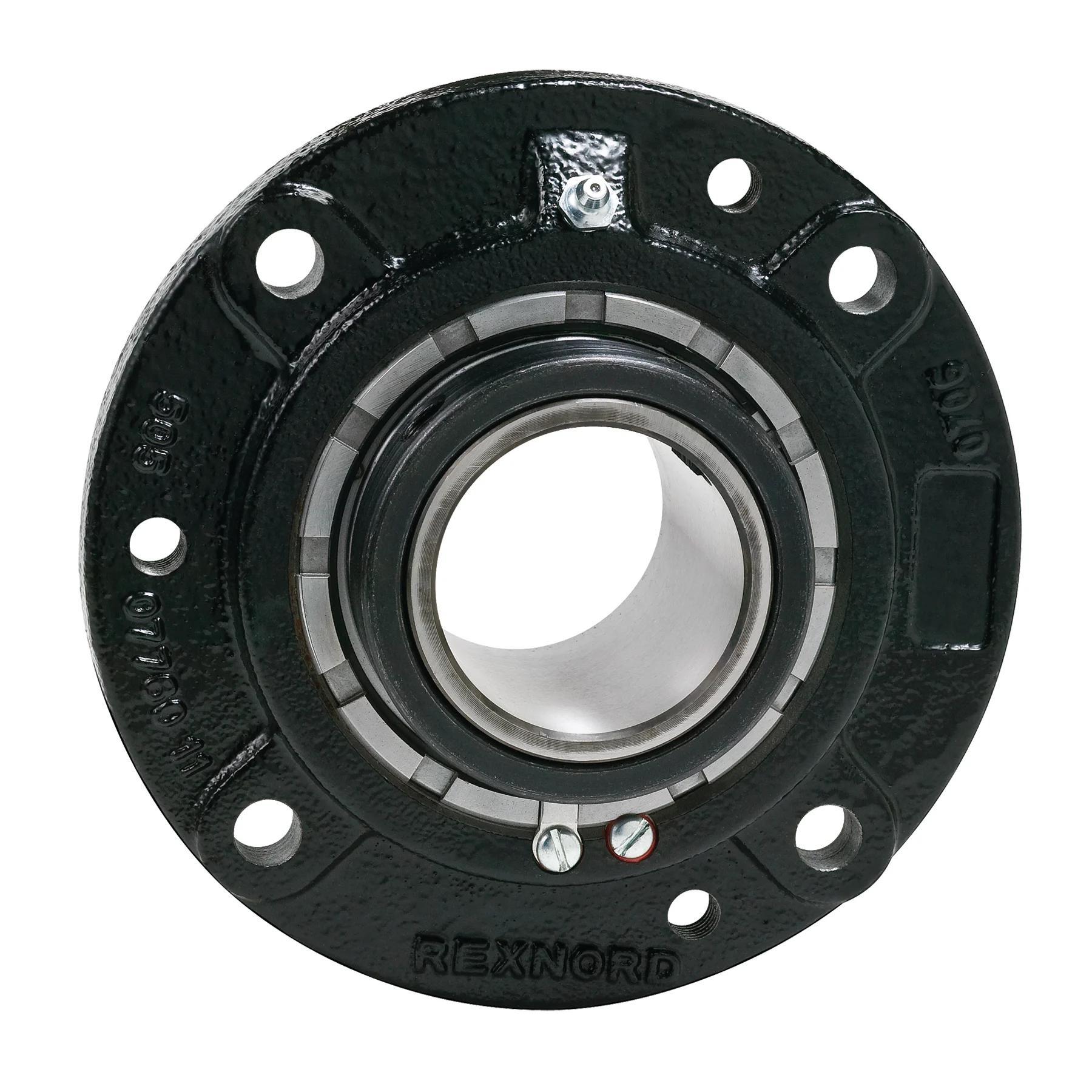

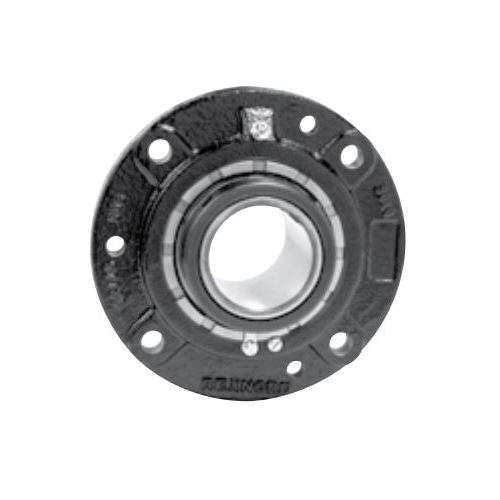

Link-Belt 2-3/16" SPH CARTRIDGE FLANGE UNITS LNK F-CB-22435-E-7
Series B22400 are single collar mounted spherical roller bearing units. These units provide economic and versatile arrangements for supporting shafts carrying substantial radial or combination radial and thrust loads. These units are especially adaptable for conveyors, elevators, general industrial machinery, heavier duty fans and blowers, power transmission applications, ditchers, trenchers, pavers and other such applications. These series of bearings are easy to mount, sealed, pre-lubricated and do not require bearing adjustment during mounting.
-
BrandLink-Belt®
-
UPC793699078305
-
Manufacturer Part Number10442482
-
CountryUSA|Canada
-
Load Capacity26400 lb Dynamic/44400 lb Static
-
Locking DeviceSingle Spring Locking Collar
-
Temperature Rating-40 to 275 deg F
-
FinishPowder Coated
-
Flange Mounting Type4-Bolt Base
-
Maximum Speed1950 rpm
-
SeriesFCB22400
-
Bolt Center-to-Center Length4-1/4 in
-
Bolt Circle Diameter6 in
-
Bore Diameter2-3/16 in
-
Overall Depth3-5/16 in
-
Overall Length/Diameter7-1/8 in
- Self-aligning type E interchange
- Corrosion-resistant powder coating
- Cast iron housing
- Misalignment capabilities - total of 4 deg
- Factory set clearance and lubrication
- Hardened spring locking collar
- Field interchangeable seals
-
Alternative Part NumberFCB22435E7
-
UNSPSC31171500
-
Standards/ApprovalsANSI/ABMA STD 11-1990
-
Warranty1 year
-
Package DescriptionEACH
-
Instruction/Installation Manual
