F4R-S2-200R Dodge® 070443 Non-Expansion Round Type S-2000 Spherical Roller Bearing Unit, 2 in Dia Bore, 4.06 in L Bolt Center-to-Center, 5-3/4 in Dia Bolt Circle, 4-Bolt Base Flange Mount, 6.69 in OAL/Dia

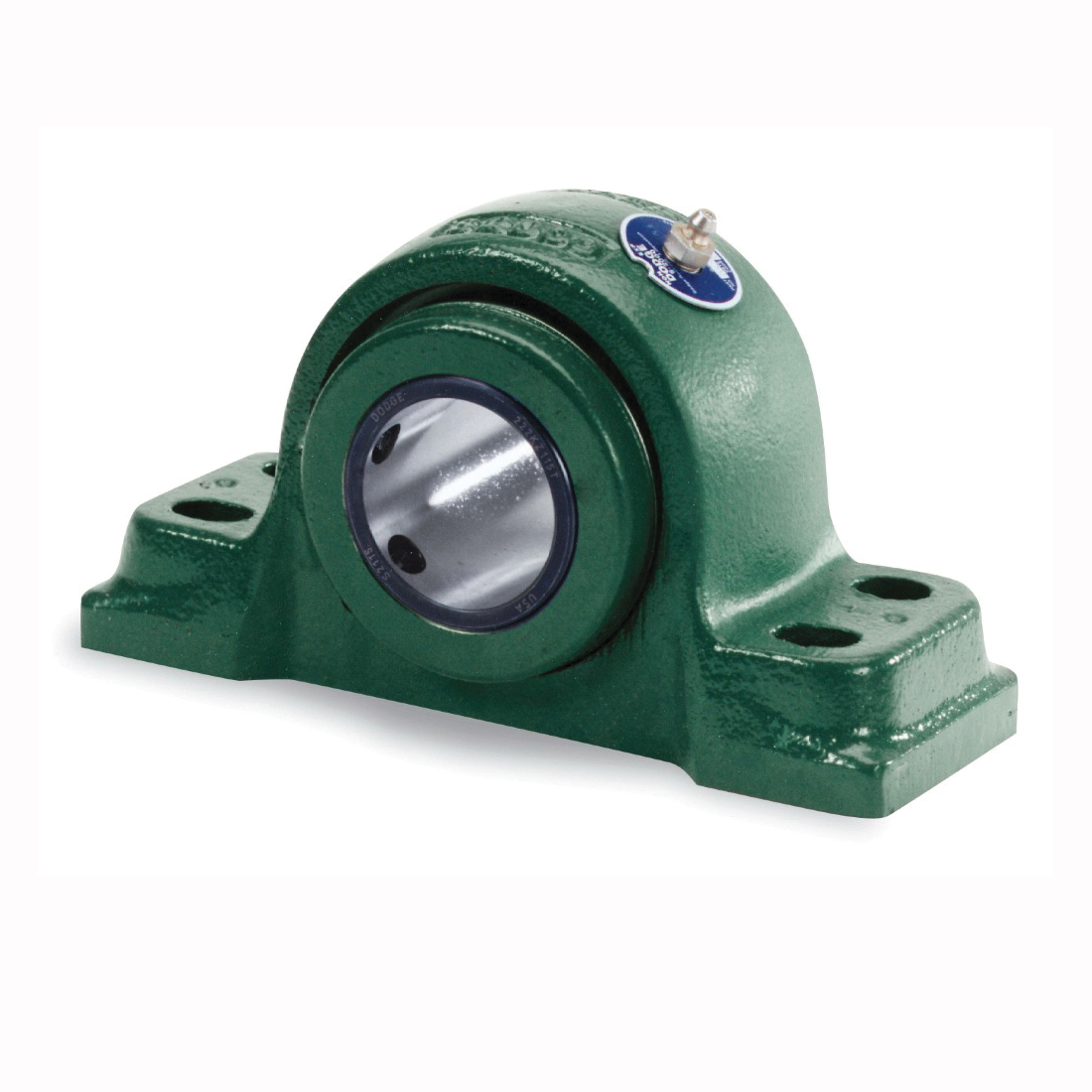

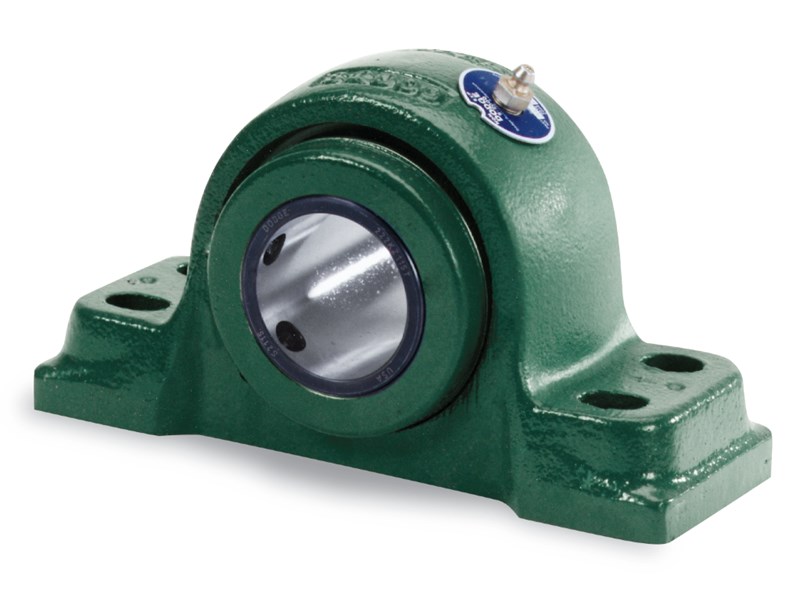

Unit-housed double-row Dodge® S-2000 spherical roller bearings have higher ratings and long L10 life. These bearings are in cast iron housings and available in pillow block, flange, and piloted flange versions. A variety of sealing options for easy application and protection make the Dodge® S-2000 a high-capacity bearing with maximum life.
-
BrandDodge®
-
UPC782475306633
-
Manufacturer Part Number070443
-
CountryUSA
-
Load Capacity22000 lb Dynamic/24000 lb Static
-
Locking Device65 deg Set Screw
-
Temperature Rating-20 to 250 deg F
-
FinishUncoated
-
Flange Mounting Type4-Bolt Base
-
Maximum Speed2200 rpm
-
TypeNon-Expansion Round Type S-2000
-
Bolt Center-to-Center Length4.06 in
-
Bolt Circle Diameter5-3/4 in
-
Bore Diameter2 in
-
Overall Depth3.14 in
-
Overall Length/Diameter6.69 in
- Corrosion resistant flinger blocks contaminants
- Seal land maintains full seal contact when misaligned
- Reinforced polyamide cage
- Patented nitrile multiple lip seal resists heat and chemical breakdown
- 65 deg setscrew mounting
- Trident™ triple lip rubbing seal
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 100940788 |
| Motion Industries | 02317119 |
-
Alternative Part NumberF4R-S2-200R
-
UNSPSC31171510
-
Package DescriptionEACH
-
WarrantyLimited
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
-
Line Drawing
-
Catalog
