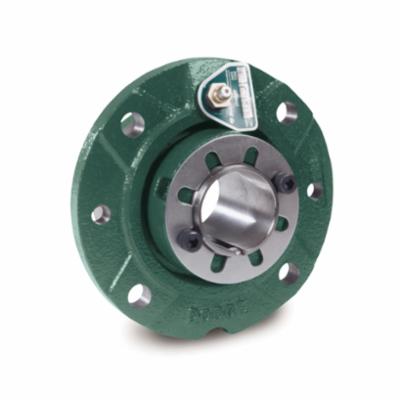

FC-IP-307R Dodge® 069828 307 Imperial Non-Expansion Flange Mount Roller Bearing Unit, 3-7/16 in Dia Bore, 5.3 in L Bolt Center-to-Center, 8.63 in Dia Bolt Circle, Piloted Flange Mount, 8-3/4 in OAL/Dia
FC-IP-307R Dodge® 069828 307 Imperial Non-Expansion Flange Mount Roller Bearing Unit, 3-7/16 in Dia Bore, 5.3 in L Bolt Center-to-Center, 8.63 in Dia Bolt Circle, Piloted Flange Mount, 8-3/4 in OAL/Dia
-
BrandDodge®
-
UPC782475310296
-
Manufacturer Part Number069828
-
CountryUSA
-
Load Capacity65500 lb Dynamic/81500 lb Static
-
Locking DeviceAdapter Mounted
-
FinishUncoated
-
Flange Mounting TypePiloted
-
Maximum Speed1825 rpm
-
TypeImperial Non-Expansion
-
Series307
-
Bolt Center-to-Center Length5.3 in
-
Bolt Circle Diameter8.63 in
-
Bore Diameter3-7/16 in
-
Overall Depth3-1/2 in
-
Overall Length/Diameter8-3/4 in
- Steel cage with guide rings offers precision roller guidance
- Corrosion resistant flinger blocks contaminants
- Seal/land maintains full seal contact when misaligned
- Steel cage provide high temperature and high speed capabilities
- Patented triple-lip nitrile seal resists heat and chemical breakdown
- Ease in mounting and dismounting achieved through patented adapter system
- Adapter sleeve improves concentricity and reduces inherent vibration
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 100738812 |
| Motion Industries | 02317401 |
-
Alternative Part NumberFC-IP-307R
-
UNSPSC31171501
-
Instruction/Installation Manual
-
Specification Sheet
