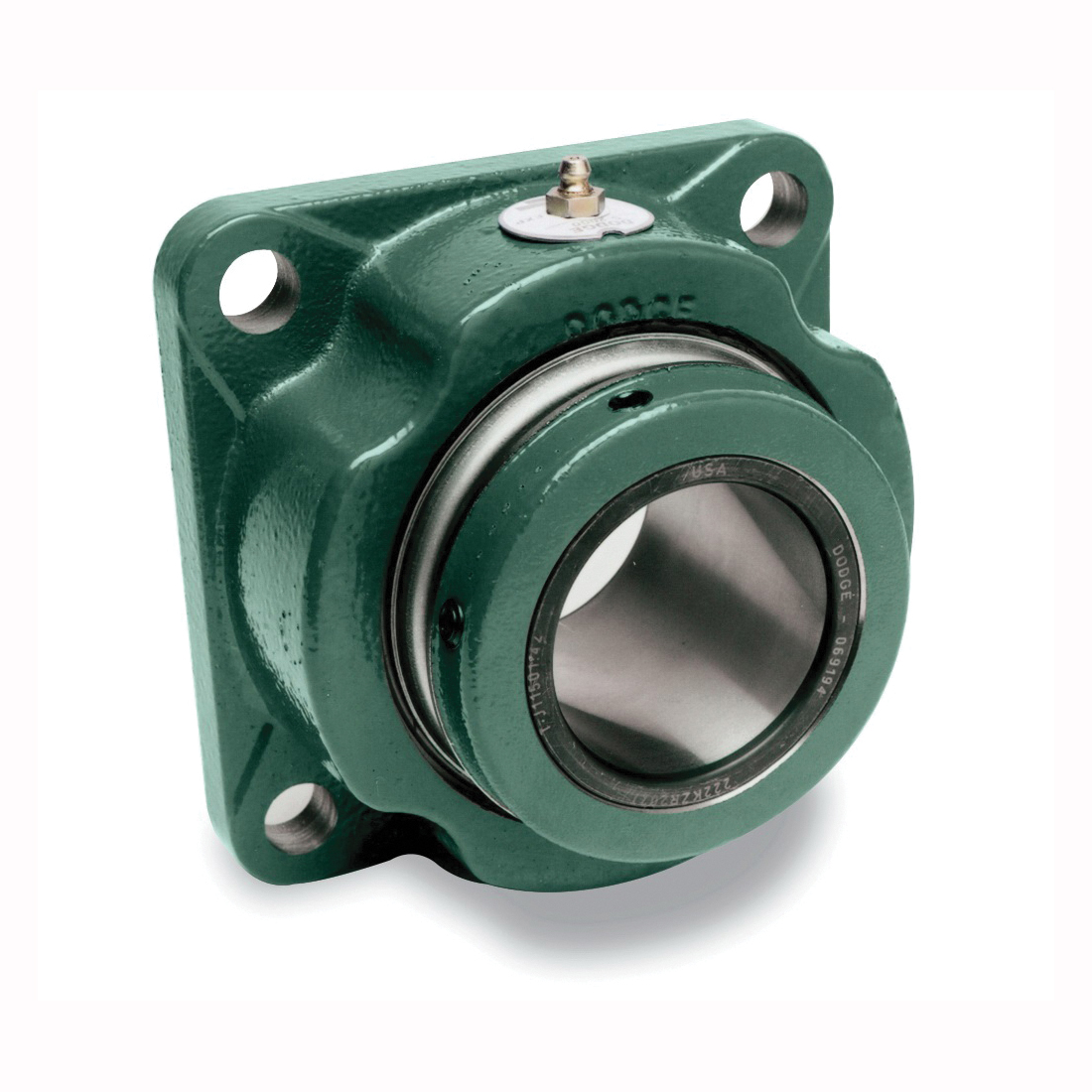

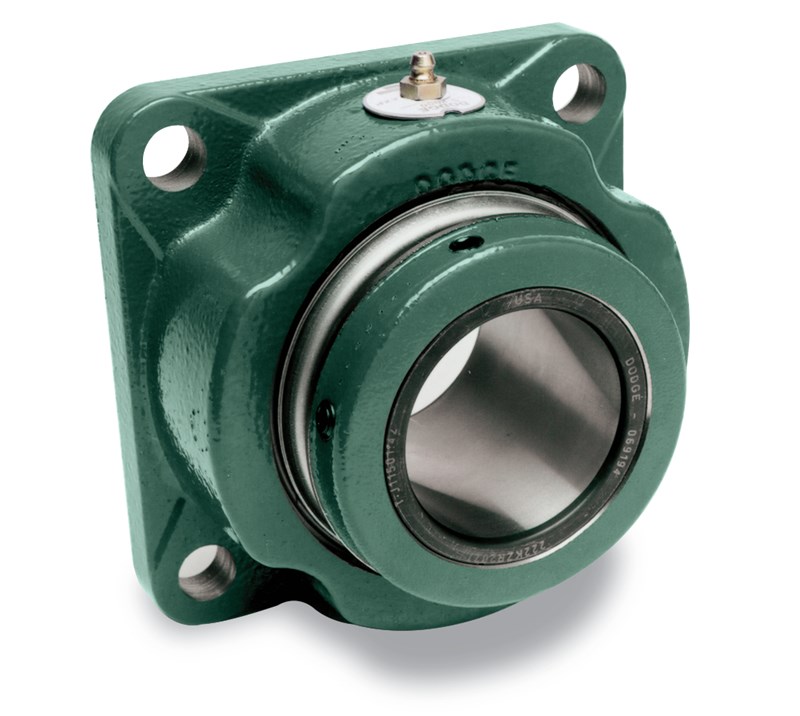

F4S-S2-307R Dodge® 070557 Non-Expansion Square Type S-2000 Spherical Roller Bearing Unit, 3-7/16 in Dia Bore, 6.72 in L Bolt Center-to-Center, 9-1/2 in Dia Bolt Circle, 4-Bolt Base Flange Mount, 8-1/4 in OAL/Dia
Unit-housed double-row Dodge® S-2000 spherical roller bearings have higher ratings and long L10 life. These bearings are in cast iron housings and available in pillow block, flange, and piloted flange versions. A variety of sealing options for easy application and protection make the Dodge® S-2000 a high-capacity bearing with maximum life.
-
BrandDodge®
-
UPC782475306695
-
Manufacturer Part Number070557
-
CountryUSA
-
Load Capacity65500 lb Dynamic/81500 lb Static
-
Locking Device65 deg Set Screw
-
Temperature Rating-20 to 250 deg F
-
FinishUncoated
-
Flange Mounting Type4-Bolt Base
-
Maximum Speed1280 rpm
-
TypeNon-Expansion Square Type S-2000
-
Bolt Center-to-Center Length6.72 in
-
Bolt Circle Diameter9-1/2 in
-
Bore Diameter3-7/16 in
-
Overall Depth4 in
-
Overall Height8-1/4 in
-
Overall Length/Diameter8-1/4 in
- Corrosion resistant flinger blocks contaminants
- Seal land maintains full seal contact when misaligned
- Reinforced polyamide cage
- Patented nitrile multiple lip seal resists heat and chemical breakdown
- 65 deg setscrew mounting
- Trident™ triple lip rubbing seal
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 100940859 |
| Motion Industries | 07547515 |
-
Alternative Part NumberF4S-S2-307R
-
UNSPSC31171510
-
Package DescriptionEACH
-
WarrantyLimited
-
Catalog
-
Line Drawing
-
Specification Sheet
-
Warranty Information
-
Instruction/Installation Manual
