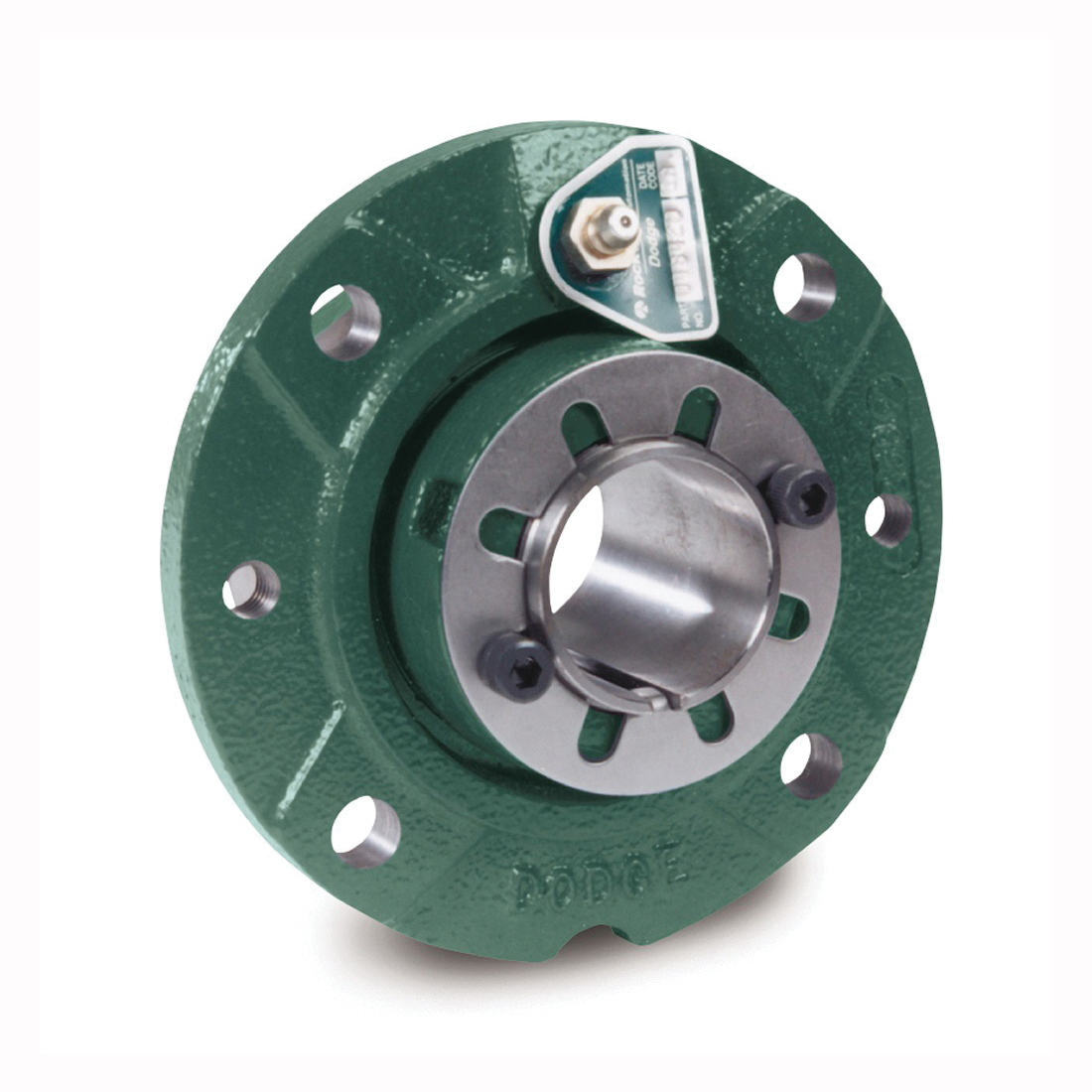

FC-S2-300L Dodge® 070712 215 Non-Expansion Type S-2000 Flange Mount Roller Bearing Unit, 3 in Dia Bore, 5.3 in L Bolt Center-to-Center, 7-1/2 in Dia Bolt Circle, Piloted Flange Mount, 8-3/4 in OAL/Dia
Unit-housed double-row Dodge® S-2000 spherical roller bearings have higher ratings and long L10 life. A variety of housing styles and sealing options allow for easy application on material and air handling machinery. Industry standard dimensions make the products interchangeable with many brands.
-
BrandDodge®
-
UPC782475315246
-
Manufacturer Part Number070712
-
CountryUSA
-
Load Capacity41500 lb Dynamic/53000 lb Static
-
Locking Device65 deg Set Screw
-
Temperature Rating-100 to 200 deg F
-
FinishPowder Coated
-
Flange Mounting TypePiloted
-
Maximum Speed2040 rpm
-
TypeNon-Expansion Type S-2000
-
Seal MaterialMetal
-
Series215
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length5.3 in
-
Bolt Circle Diameter7-1/2 in
-
Bore Diameter3 in
-
Overall Depth3.64 in
-
Overall Length/Diameter8-3/4 in
- Factory lubed, sealed and adjusted
- Larger rollers
- More contact area
- Case-carburized inner rings resist cracking
- Static or dynamic misalignment up to +/-1 deg
- Expansion capability up to 3/8 in
- Corrosion resistant flinger blocks contaminants
- Reinforced polyamide cage
- 65 deg setscrew angle Springlok™ collar/ flingers - more holding power than 90 to 120 deg
- Metallic labyrinth seal and steel cage provide high temperature and high-speed capabilities
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 100738796 |
| Motion Industries | 02317462 |
-
Alternative Part NumberFC-S2-300L
-
UNSPSC31171510
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
WarrantyLimited
-
Specification Sheet
-
Warranty Information
-
Line Drawing
-
Catalog
-
Instruction/Installation Manual
