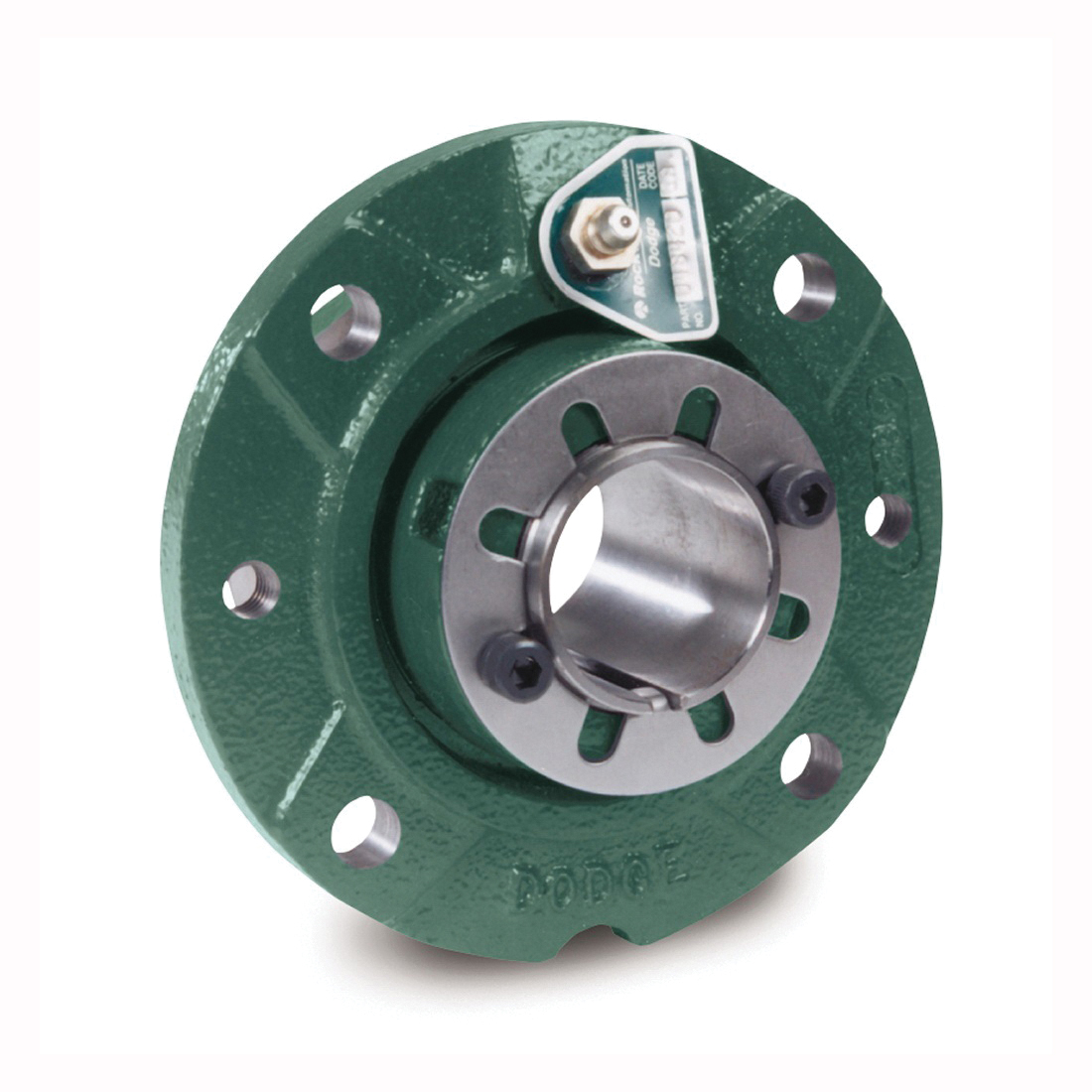

Dodge® 070651 115 Non-Expansion Type S-2000 Spherical Roller Bearing Unit, 2 in Dia Bore, 5.38 in L Bolt Center-to-Center, 5.38 in Dia Bolt Circle, Piloted Flange Mount, 6.38 in OAL/Dia
Unit-housed double-row Dodge® S-2000 spherical roller bearings have higher ratings and long L10 life. These bearings are in cast iron housings and available in pillow block, flange, and piloted flange versions. A variety of sealing options for easy application and protection make the Dodge® S-2000 a high-capacity bearing with maximum life.
-
BrandDodge®
-
UPC782475306985
-
Manufacturer Part Number070651
-
CountryUSA
-
Load Capacity22000 lb Dynamic/24000 lb Static
-
Locking Device65 deg Set Screw
-
Temperature Rating-20 to 250 deg F
-
FinishUncoated
-
Flange Mounting TypePiloted
-
Maximum Speed2200 rpm
-
TypeNon-Expansion Type S-2000
-
Series115
-
Bearing MaterialSteel
-
Bolt Center-to-Center Length5.38 in
-
Bolt Circle Diameter5.38 in
-
Bore Diameter2 in
-
Overall Depth6.38 in
-
Overall Length/Diameter6.38 in
- Corrosion resistant flinger blocks contaminants
- Seal land maintains full seal contact when misaligned
- Reinforced polyamide cage
- Patented nitrile multiple lip seal resists heat and chemical breakdown
- 65 deg setscrew mounting
- Trident™ triple lip rubbing seal
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 100940886 |
| Motion Industries | 00570144 |
-
Alternative Part NumberFC-S2-200R
-
UNSPSC31171510
-
Package DescriptionEACH
-
WarrantyLimited
-
Line Drawing
-
Catalog
-
Instruction/Installation Manual
-
Warranty Information
-
Specification Sheet
